Mono Eco Connect FG159

Installation and Operation Manual Eco Connect Convection Ovens | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0200 | Rev. A23 (March 2023) MONO 93
Dimensions (condenser unit)

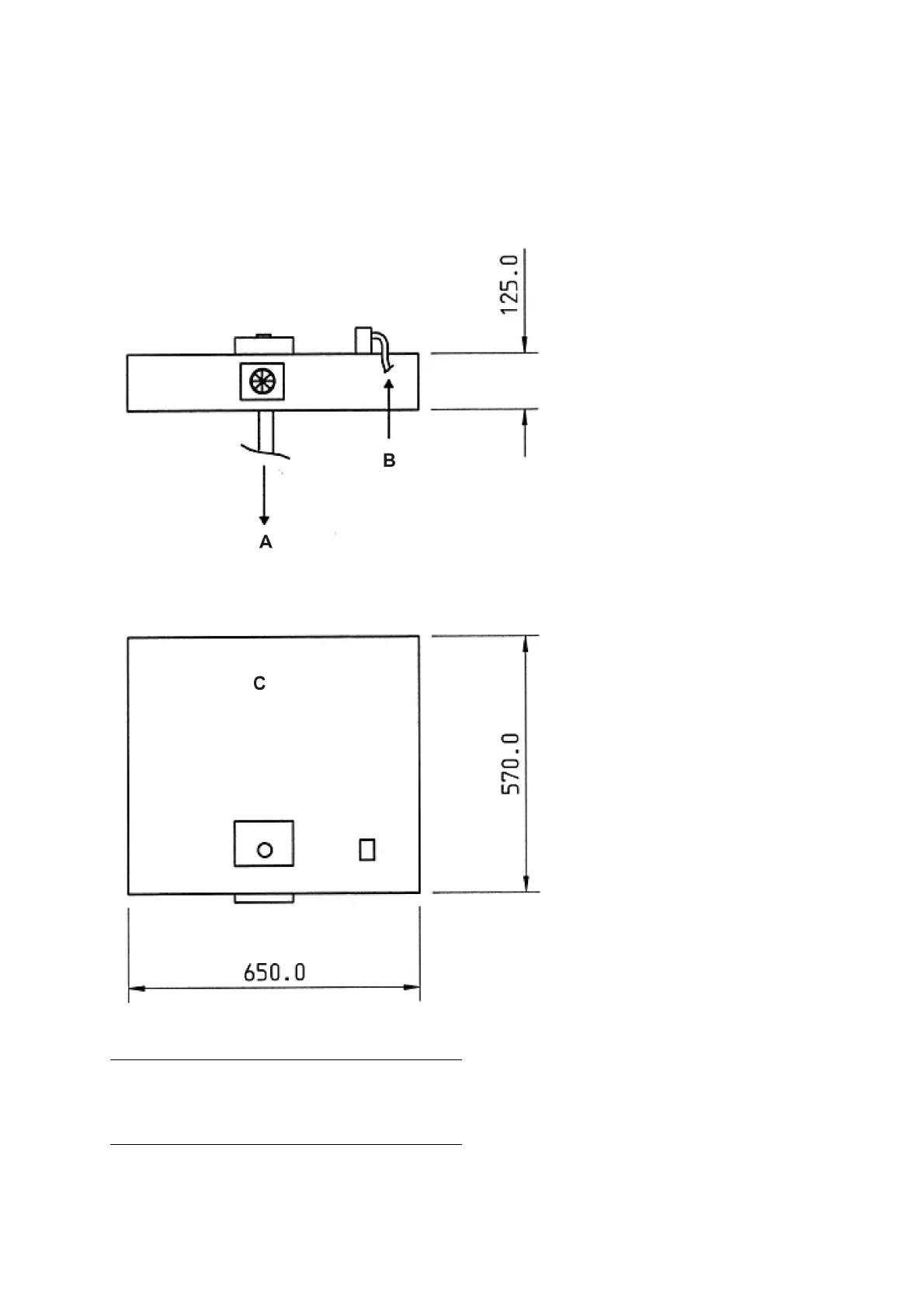

Figure 40: Dimensions of a condenser unit
A. Water out
B. Water in
C. Rear of the oven
