• Again, with both doors closed, check the location of
the centerlines to be sure they are parallel to the edge
of the door, and level with opposite door.
• Drill 1/16" pilot hole through the panel until it starts into
the aluminum extrusion. This will mark the matching
location for drilling the clearance hole when assem-
bling the handle, panel and extrusion.
Note:
Handle must be located
3/4" to 1-1/2" from edge of
extrusion.
ZKH1 Trim Kit
Custom Handles with 1/4" Panels

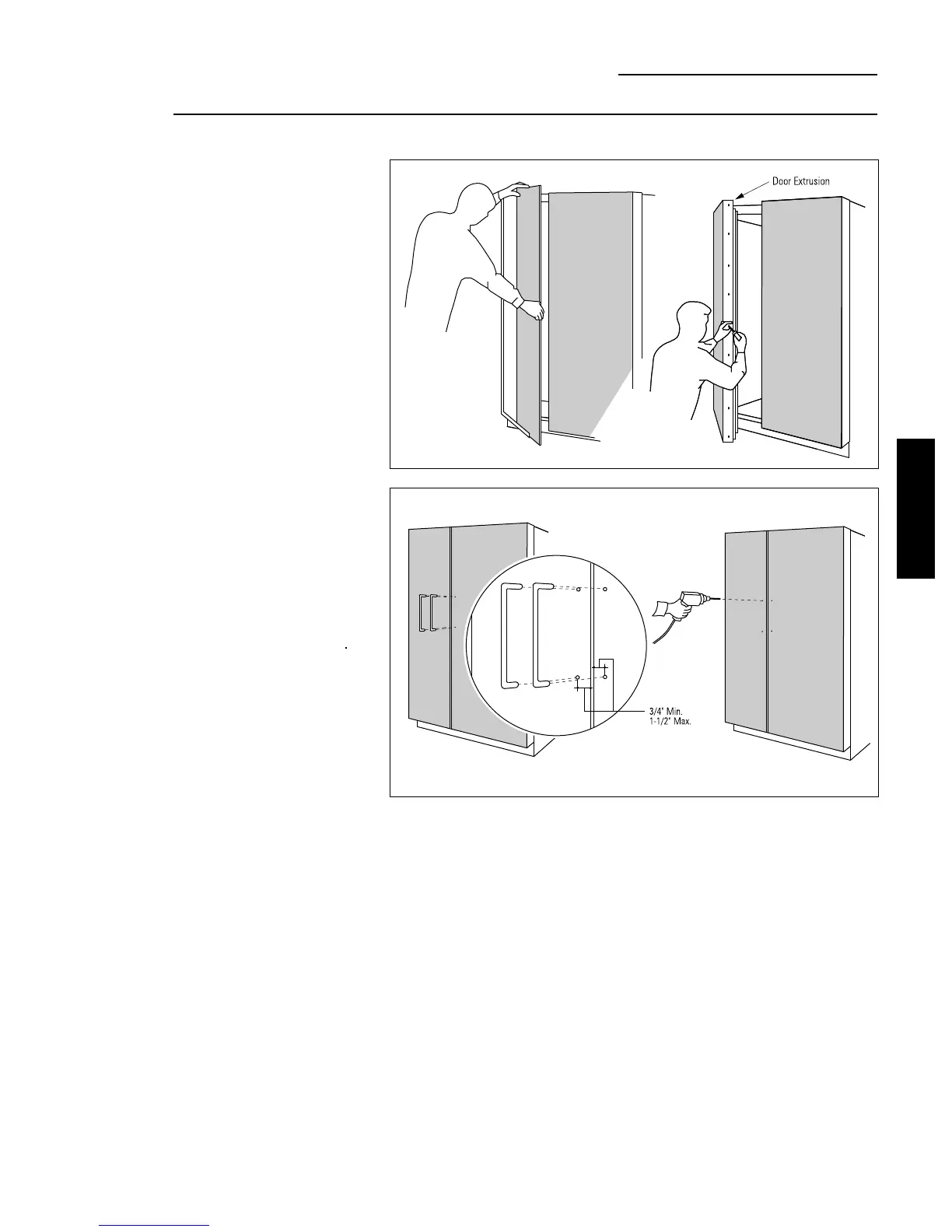

Step 2
Locate position
of handles
Option 1 Installation
• Slide custom panels into fresh food and freezer door
frames.
• Temporarily secure the new door extrusions to the
doors. Use at least 2 screws on each door.
• The handles must be located 3/4" to 1-1/2" from the edge
of the extrusion.
• Determine the desired location of the custom handles
and carefully mark centerlines of the screw holes.
21
ZKH1 INSTALLATION
INSTRUCTIONS
