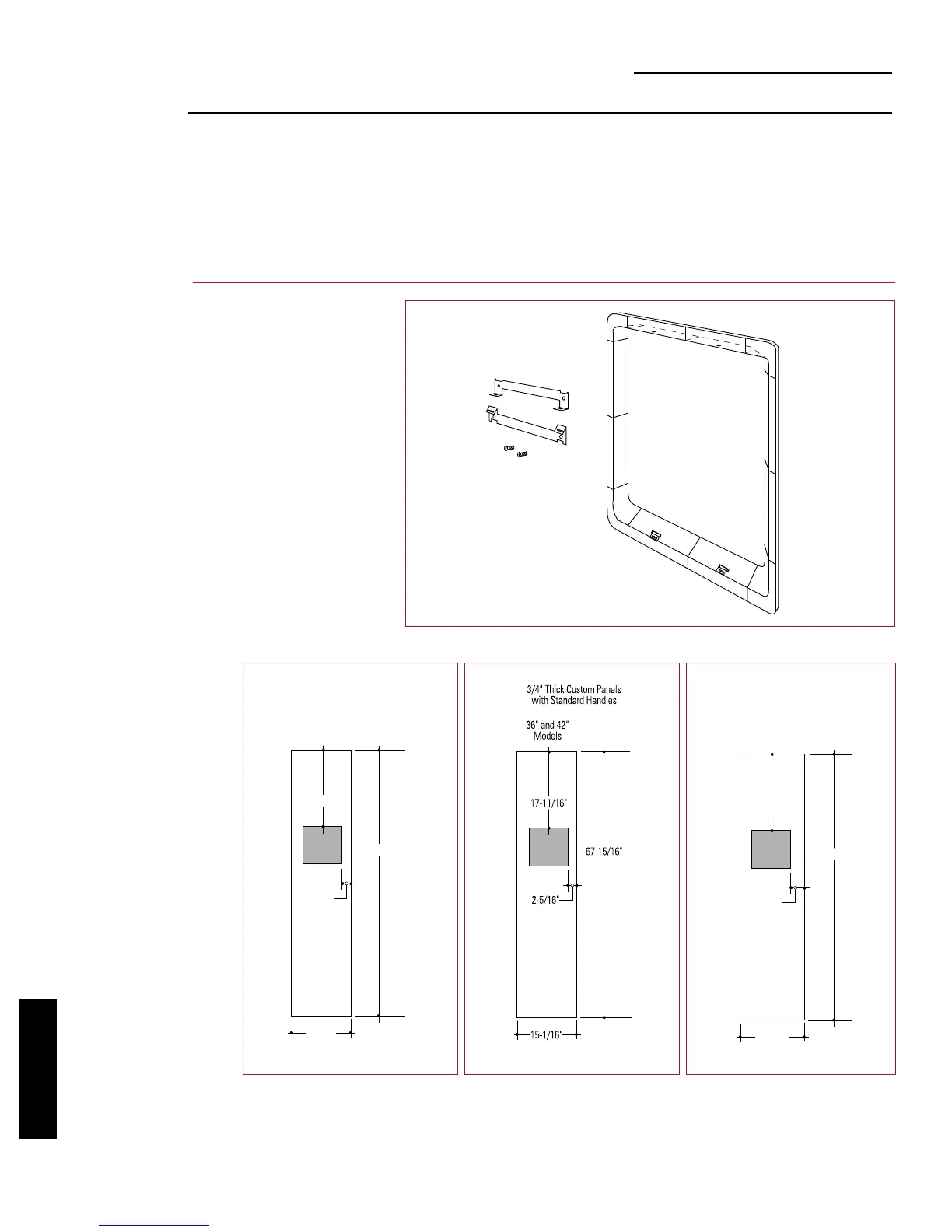

Monogram ZISB42DY - ZWCD1 Trim Kit Installation Instructions

ZWCD1 Trim Kit
Custom Dispenser Collar
B
C
D
A
• 3/4" thick panels using optional custom handles.
Select the panel size accordingly.
17-11/16"
67-7/8"
2-9/16"
15-1/4"
36" and 42"
Models
1/4" Thick Custom Panels
17-11/16"
67-15/16"
2-9/16"
15-5/16"
3/4" Thick Custom Panels
with Custom Handles
36" and 42"
Models
The overall size of the panel is determined by the
application being used.
• 1/4" thick panels using the standard handles or
optional custom handles.
• 3/4" thick panels using standard handles, or
Parts List:
A. Collar trim
(Both black and white
trim included)
B. Top bracket
C. Bottom bracket
D. Screws (2)
This kit provides for the
use of a custom dis-
penser collar trim,
replacing the standard
full-width trim. This kit
can be used alone, or
combined with one or all
other trim kits.
Tools and materials
required:
•#2 Phillips screwdriver
•Drill and appropriate bits
•Custom door panels
•Safety glasses
Select
panel size
Kit
contents
ZWCD1 INSTALLATION
INSTRUCTIONS
38
