ZKHT1 Trim Kit
Custom Handles with 3/4" Panels

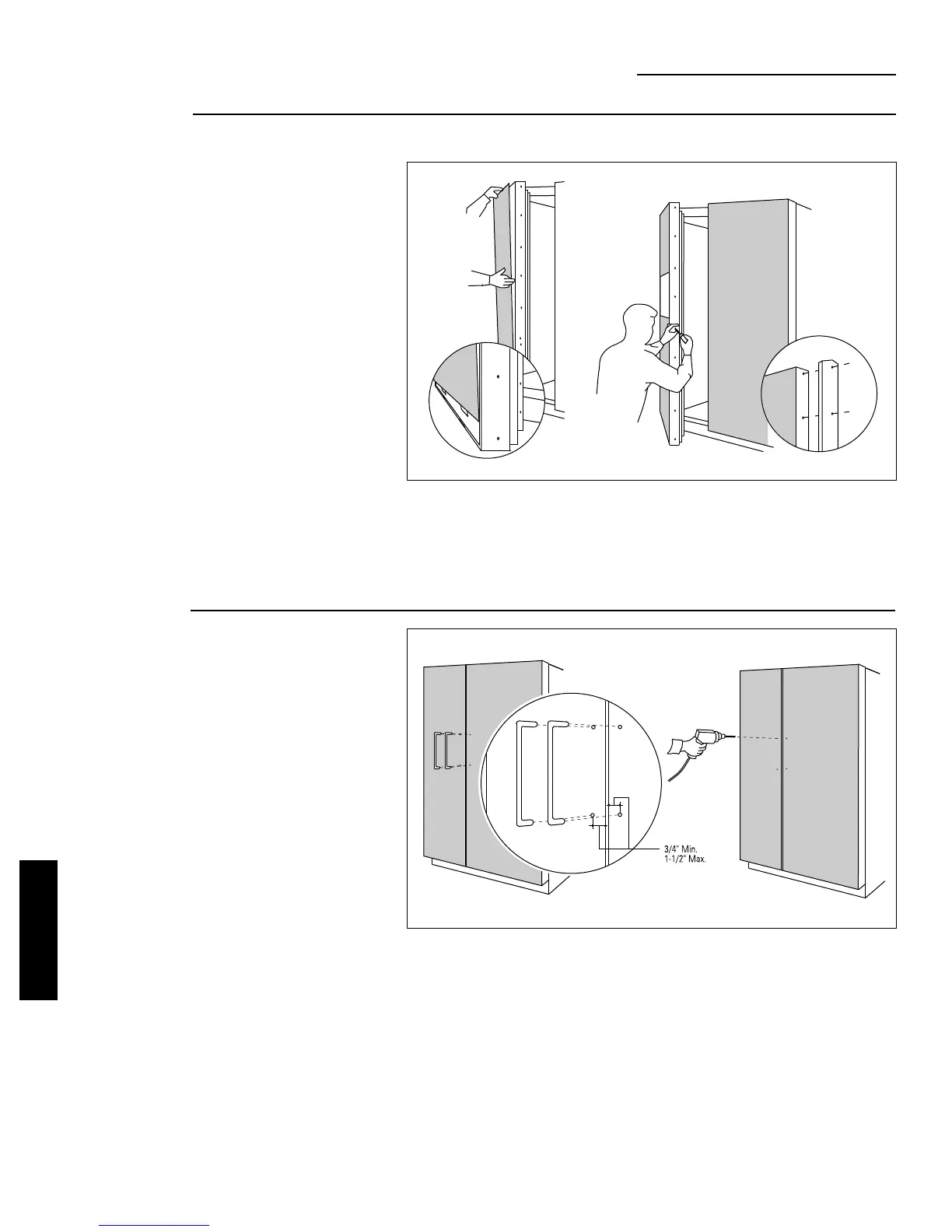

• Place the prepared 3/4"custom door panels on the
bottom trim with support bracket tabs inserted
into slots.
• Push the panel back against the steel door, making
sure panel is flush with hinge side trim.
• Determine the desired location of the custom handles
and carefully mark centerlines of the screw holes.
The handles must be located 3/4" to 1-1⁄2" from the
end of the extrusion.
• Again, with both doors closed, check centerlines of
the screw holes to be sure they are parallel to the
edge of the door, and level with opposite door.
• Drill 1⁄16" pilot hole through the panel until it starts
into the aluminum extrusion. This will mark the
matching location for drilling a clearance hole when
assembling the extrusion, panel and handle.
• Secure the panel to the trim temporarily by driving
2 screws through the back side of the trim at the top.
• Slide door extrusion in between panel and steel door.
Temporarily secure with 2 screws.
34
Step 1
Temporarily
mount
door panels
Step 2
Locate
position
of handles
ZKHT1 INSTALLATION
INSTRUCTIONS
To Next Page
