Montarbo MX20 - Connectors

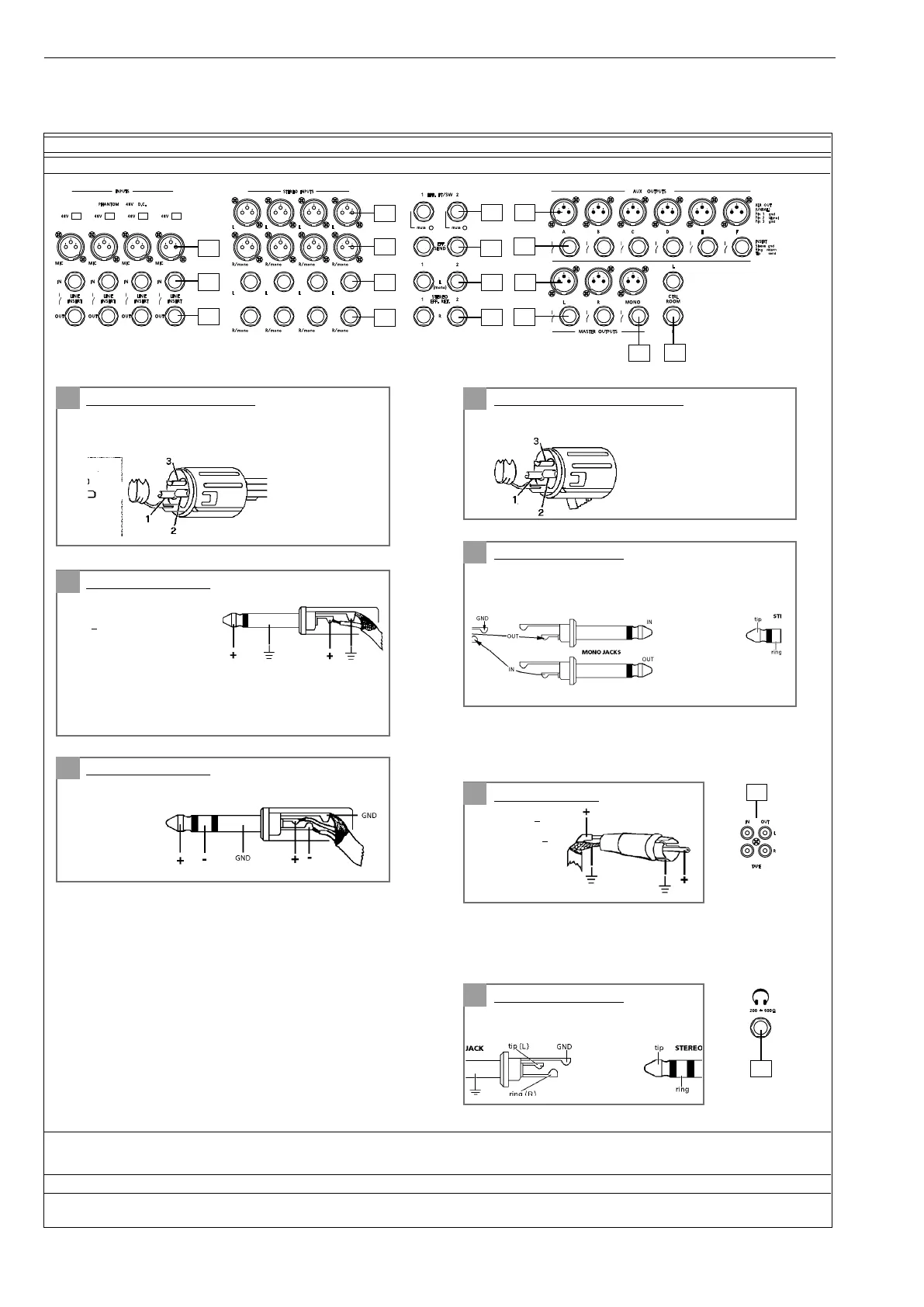

CONNECTORS
◗ ALWAYS USE HEAVY GAUGE, GOOD QUALITY SCREENED CABLES !
A
B
A
A
C
C
B
B
B
B
B
B
D
E
E
BALANCED XLR MALE CONNECTOR for:
MICROPHONE INPUTS in mono channels
LINE INPUTS in stereo channels
1 GND Ground
2 + Hot
3 - Cold
(IEC 268 standard)
A
MONO JACK CONNECTOR for:
LINE INPUTS / INSERT IN/OUT
1 / 2 EFFECT SENDS OUTPUTS
EFFECT RETURN INPUTS
FOOTSWITCH
L / R, A / B / C / D / E / F INSERTS as OUTPUTS
MONO OUTPUT
CONTROL ROOM OUTPUTS
B
UNBALANCED XLR FEMALE CONNECTOR for:
L / R, A / B / C / D / E / F OUTPUTS
1 GND Ground
2 + Hot
3 GND Ground
(IEC 268 standard)
D
STEREO JACK CONNECTOR for:
L / R, A / B / C / D / E / F INSERTS
E
PIN-RCA CONNECTOR for:
TAPE IN L / R
TAPE OUT L / R
F
F
G
STEREO JACK CONNECTOR for:
PHONES OUTPUT
G
D
E
46
APPENDIX
STEREO JACK CONNECTOR for:
LINE INPUTS in stereo channels
C
