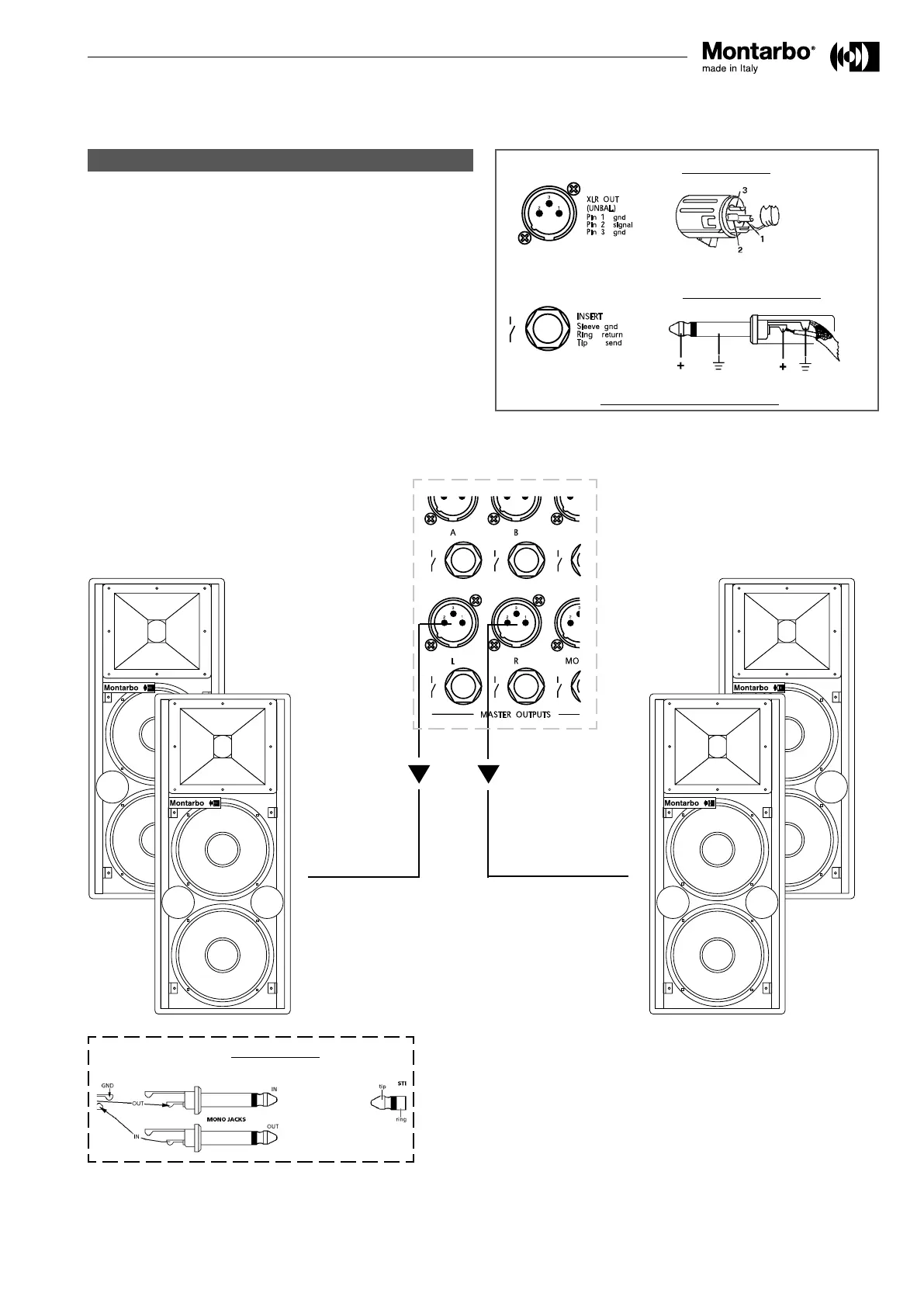

• Connection of active speaker systems or power ampliers.
L/R OUTPUTS
◗
INPUTS
of active enclosures or power
ampliers (up to 10 each output, parallel connected).
FIG.
1
- L/R MASTER OUTPUTS
CONNECTIONS
ACTIVE SPEAKER ENCLOSURES
47
USE HEAVY GAUGE SHIELDED CABLES
STEREO JACK CONNECTOR for the L
/
R INSERTS
MONO JACK CONNECTOR
for the L
/
R INSERTS as OUTPUTS
UNBALANCED XLR FEMALE CONNECTOR
for the L
/
R OUTPUTS
1 GND Ground
2 + Hot
3 GND Ground
(IEC 268 standard)
UNBALANCED XLR MALE SOCKET
JACK SOCKET
APPENDIX
