CONNECTIONS
49

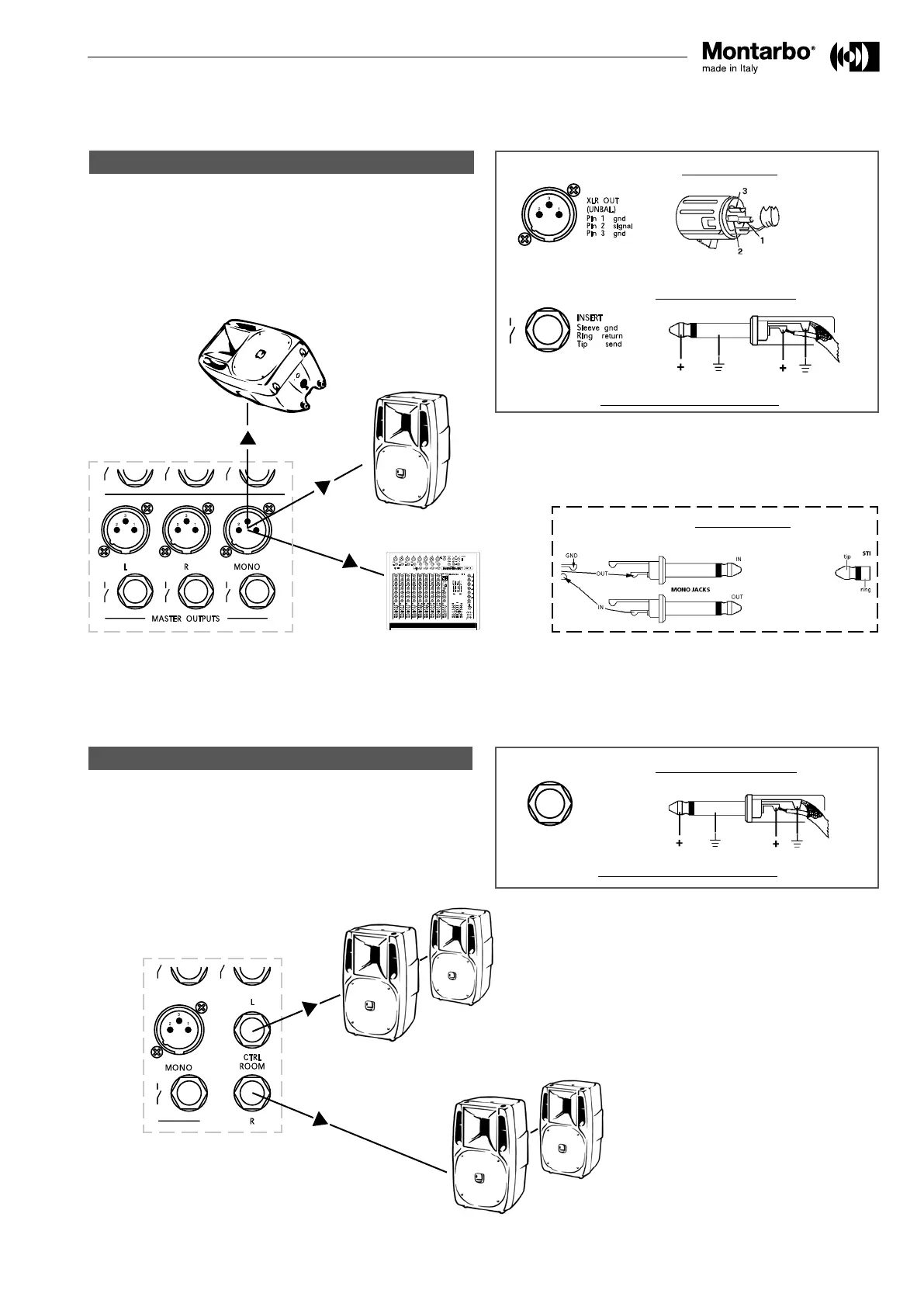

FIG.
3
- MONO OUTPUT
• Connection of auxiliary equipment.
MONO OUTPUT
◗
INPUT of an active enclosure (active
monitors, power amps.) or LINE INPUT of a mixer.
USE HEAVY GAUGE SHIELDED CABLES
MONO JACK CONNECTOR
for the MONO INSERT as OUTPUT
UNBALANCED XLR FEMALE CONNECTOR
for the MONO OUTPUT
1 GND Ground
2 + Hot
3 GND Ground
(IEC 268 standard)
UNBALANCED XLR MALE SOCKET
JACK SOCKET
STEREO JACK CONNECTOR for the MONO INSERT
FIG.
4
- L/R CONTROL ROOM OUTPUTS
• Connection of active speaker enclosures or power amps.
L/R CONTROL ROOM OUTPUTS
◗
INPUTS of active enclosures,
active monitors or power ampliers (up to 10 each output,
parallel connected).
MONO JACK CONNECTOR
for the L
/
R CTRL ROOM OUTPUTS
USE HEAVY GAUGE SHIELDED CABLES
JACK SOCKET
APPENDIX
