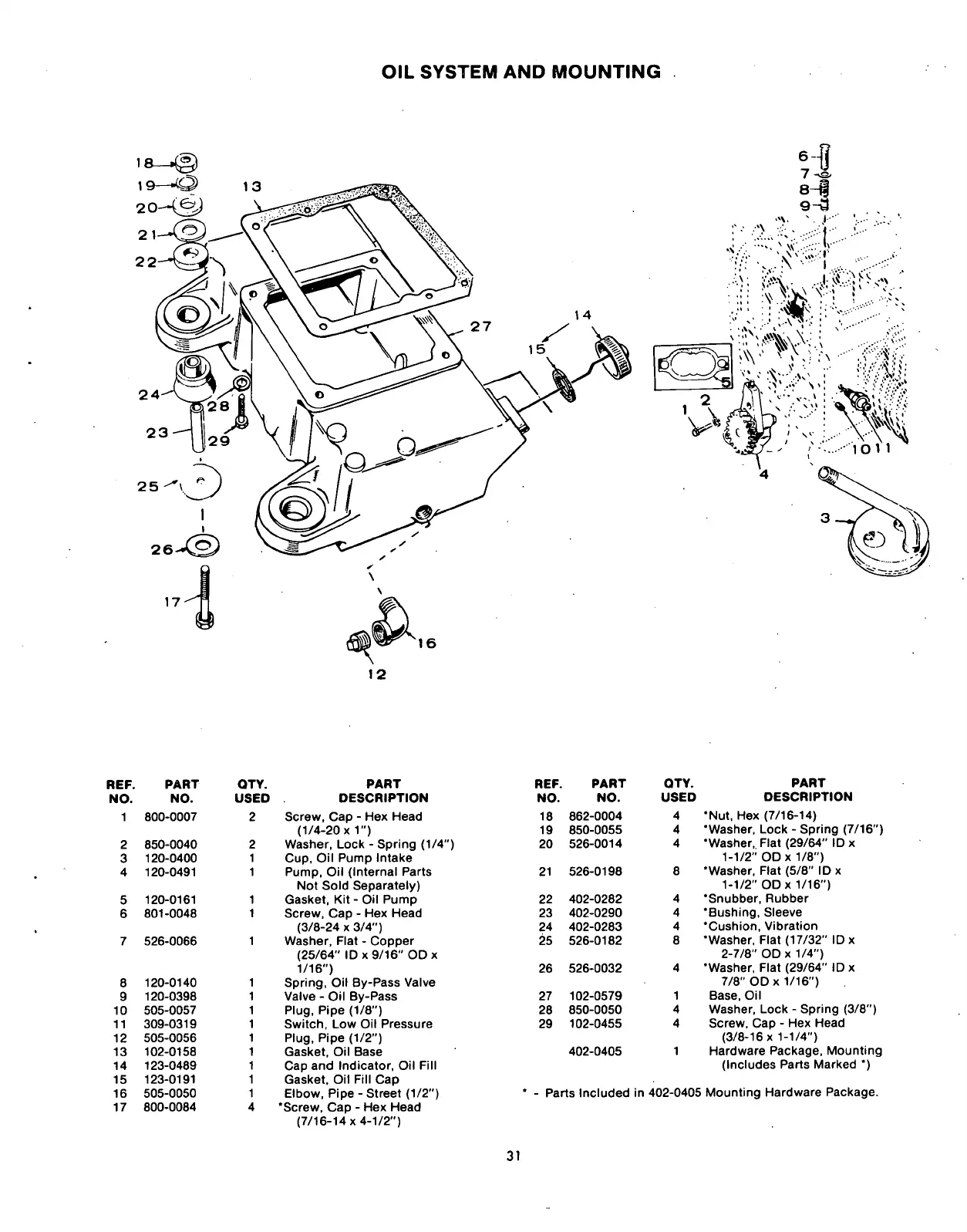

OIL SYSTEM AND MOUNTING
REF. PART
NO. NO.
1 800-0007
2 850-0040
3 120-0400
4 120-0491
5 120-0161
6 801-0048
7 526-0066
8
9
10
11
120-0140
120-0398
505-0057
309-0319
12 505-0056
13 102-0158
14 123-0489
15 123-0191
16 505-0050
17 800-0084
QTY. PART
USEO DESCRIPTION
2 Screw, Cap - Hex Head
(1/4-20 x 1")
2 Washer, Lock - Spring (1/4")
1 Cup, Oil Pump Intake
1 Pump, Oil (Internal Parts
Not Sold Separately)
1 Gasket, Kit - Oil Pump
1 Screw, Cap - Hex Head
(3/8-24 x 3/4")
1 Washer, Flat - Copper
(25/64" ID x 9/16" OD x
1/16")
1 Spring, Oil By-Pass Valve
1 Valve - Oil By-Pass
1 Plug, Pipe (1/8")
1 Switch, Low Oil Pressure
1 Plug, Pipe (1/2")
1 Gasket, Oil Base
1 Cap and Indicator, Oil Fill
1 Gasket, Oil Fill Cap
1 Elbow, Pipe - Street (1/2")
4 "Screw, Cap - Hex Head
(7/16-14x4-1/2")
REF. PART QTY. PART
NO. NO. USED DESCRIPTION
18 862-0004 4 "Nut, Hex (7/16-14)
19 850-0055 4 "Washer, Lock - Spring (7/16")
20 526-0014 4 "Washer,. Flat (29/64" ID x
1-1/2" ODx 1/8")
21 526-0198 8 "Washer, Flat (5/8" ID x
1- 1/2" ODx 1/16")
22 402-0282 4 "Snubber, Rubber
23 402-0290 4 "Bushing, Sleeve
24 402-0283 4 "Cushion, Vibration
25 526-0182 8 "Washer, Flat (17/32" ID x
2- 7/8" ODx 1/4")
26 526-0032 4 "Washer, Flat (29/64" ID x
7/8" ODx 1/16")
27 102-0579 1 Base, Oil
28 850-0050 4 Washer, Lock - Spring (3/8")
29 102-0455 4 Screw, Cap - Hex Head
(3/8-16 x 1-1/4")
402-0405 1 Hardware Package, Mounting
(Includes Parts Marked *)
- Parts Included in 402-0405 Mounting Hardware Package.
