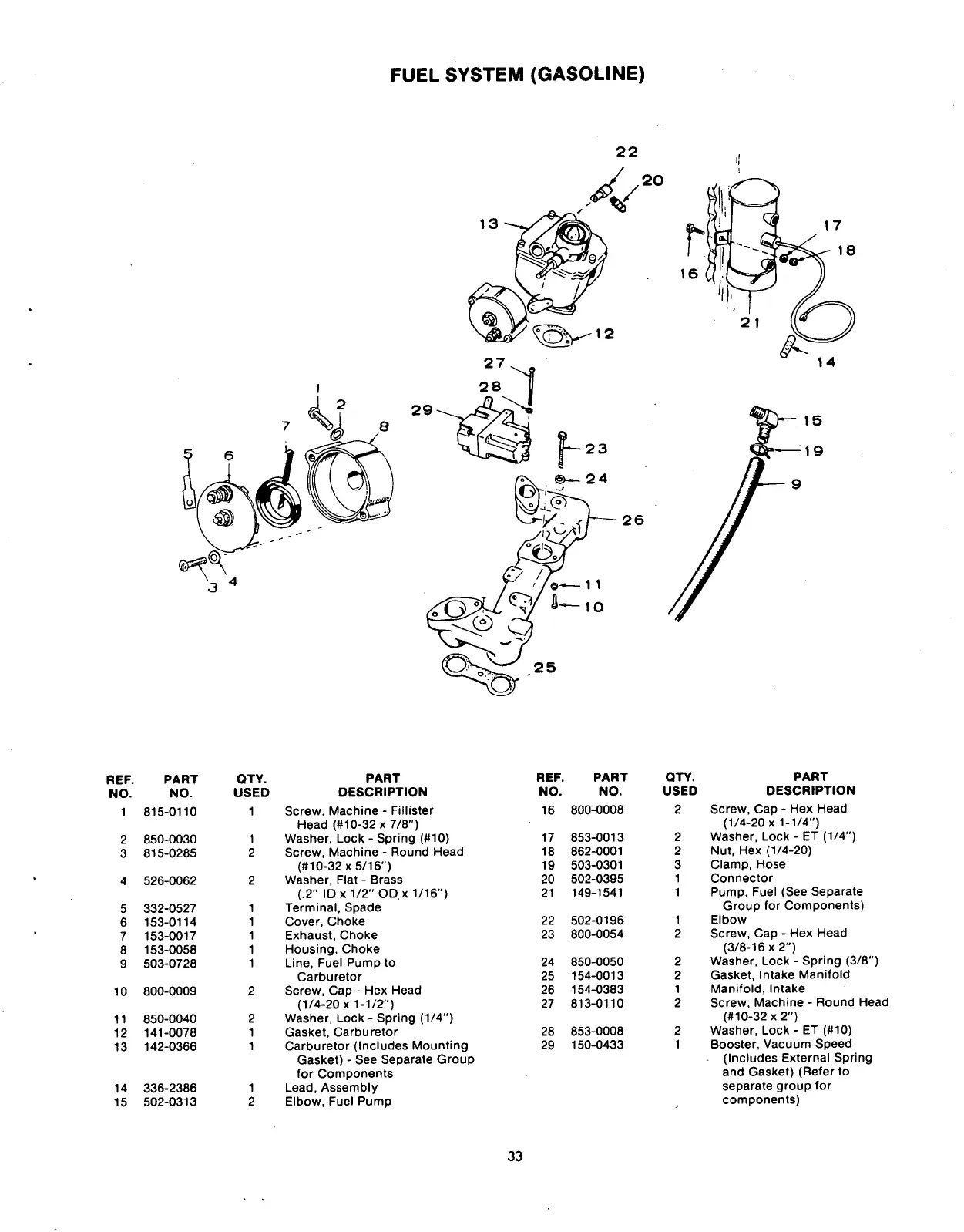

FUEL
SYSTEM
(GASOLINE)
REF.
PART
QTY.
PART
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
NO. NO.
USED
DESCRIPTION
1
815-0110 1
Screw, Machine - Fillister
16
800-0008
2
Screw, Cap - Hex Head
Head (#10-32 x 7/8")
(1/4-20 x
1-1/4")
2
850-0030
1
Washer, Lock - Spring (#10)
17 853-0013
2
Washer, Lock - ET (1/4")
3
815-0285
2
Screw, Machine - Round Head
18 862-0001
2
Nut, Hex (1/4-20)
(#10-32x5/16")
19
503-0301
3
Clamp, Hose
4 526-0062
2
Washer, Flat - Brass
20
502-0395 1 Connector
(.2" ID x 1/2" OD x
1/16")
21
149-1541 1 Pump, Fuel (See Separate
5
332-0527
1
Terminal,
Spade
Group for Components)
6
153-0114 1
Cover, Choke
22
502-0196 1 Elbow
7
153-0017
1 Exhaust, Choke
23 800-0054
2
Screw, Cap - Hex Head
8
153-0058
1
Housing,
Choke
(3/8-16x2")
9
503-0728
1
Line,
Fuel Pump to
24 850-0050
2
Washer, Lock - Spring (3/8")
Carburetor
25 154-0013
2
Gasket, Intake Manifold
10
800-0009
2
Screw, Cap - Hex Head
26
154-0383
1
Manifold,
Intake
(1/4-20 x
1-1/2")
27
813-0110
2
Screw, Machine - Round Head
11
850-0040
2
Washer, Lock - Spring (1/4")
(#10-32 x 2")
12
141-0078
1
Gasket, Carburetor
28 853-0008
2
Washer, Lock - ET (#10)
13
142-0366
1
Carburetor (Includes Mounting 29
150-0433 1 Booster, Vacuum Speed
Gasket) - See Separate Group
(Includes External Spring
for Components
and Gasket) (Refer to
14 336-2386
1
Lead,
Assembly separate group for
15
502-0313
2
Elbow, Fuel Pump
J
components)
33
To Next Page
