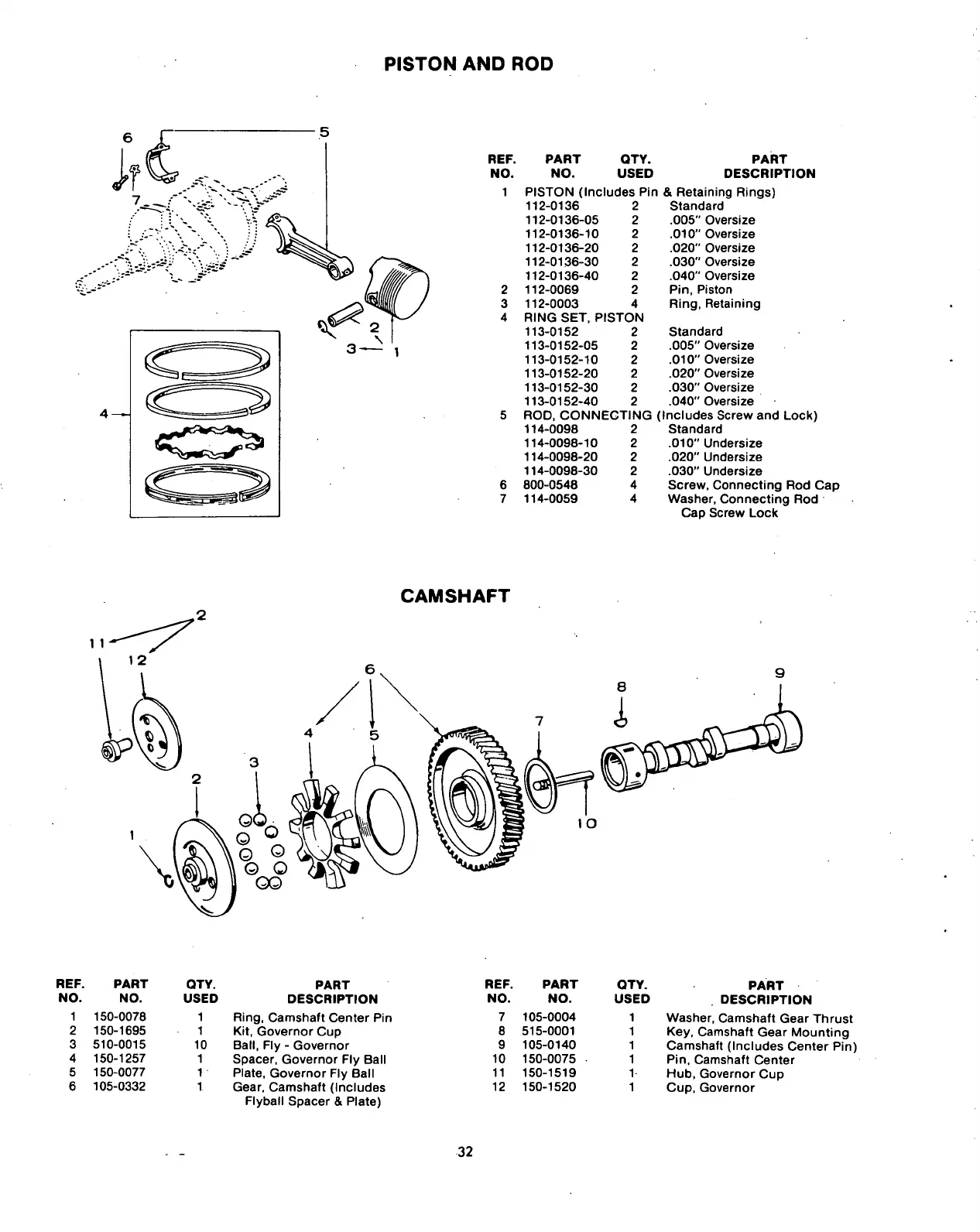

PISTON AND ROD
REF.
NO.
4^
2
3
4
PART
NO.
QTY.
USED
PART
DESCRIPTION
1 PISTON (Includes Pin & Retaining Rings)
112-0136
112-0136-05
112-0136-10
112-0136-20
112-0136-30
112-0136-40
112-0069
112-0003
2
2
2
2
2
2
2
4
RING SET, PISTON
Standard
.005" Oversize
.010" Oversize
.020" Oversize
.030" Oversize
.040" Oversize
Pin, Piston
Ring, Retaining
113-0152
113-0152-05
113-0152-10
113-0152-20
113-0152-30
113-0152-40
2
2
2
2
2
2
Standard
.005" Oversize
Oversize
' Oversize
' Oversize
' Oversize
.010"
.020"
.030"
.040"
5 ROD, CONNECTING (Includes Screw and Lock)
114-0098 2 Standard
114-0098-10 2 .010" Undersize
114-0098-20 2 .020" Undersize
114-0098-30 2 .030" Undersize
6 800-0548 4 Screw, Connecting Rod Cap
7 114-0059 4 Washer, Connecting Rod
Cap Screw Lock
CAMSHAFT
8
REF. PART QTY. PART
NO. NO. USED DESCRIPTION
1 150-0078 1 Ring, Camshaft Center Pin
2 150-1695 1 Kit, Governor Cup
3 510-0015 10 Ball, Fly - Governor
4 150-1257 1 Spacer, Governor Fly Ball
5 150-0077 1 Plate, Governor Fly Ball
6 105-0332 1 Gear, Camshaft (Includes
Flyball Spacer & Plate)
REF.
NO.
PART
NO.
7 105-0004
8 515-0001
9 105-0140
10 150-0075
11 150-1519
12 150-1520
QTY. PART
USED DESCRIPTION
Washer, Camshaft Gear Thrust
Key, Camshaft Gear Mounting
Camshaft (Includes Center Pin)
Pin, Camshaft Center
Hub, Governor Cup
Cup, Governor
32
