Montgomery Ward MX-27129A - Blower, Exhaust; Control, Remote Start

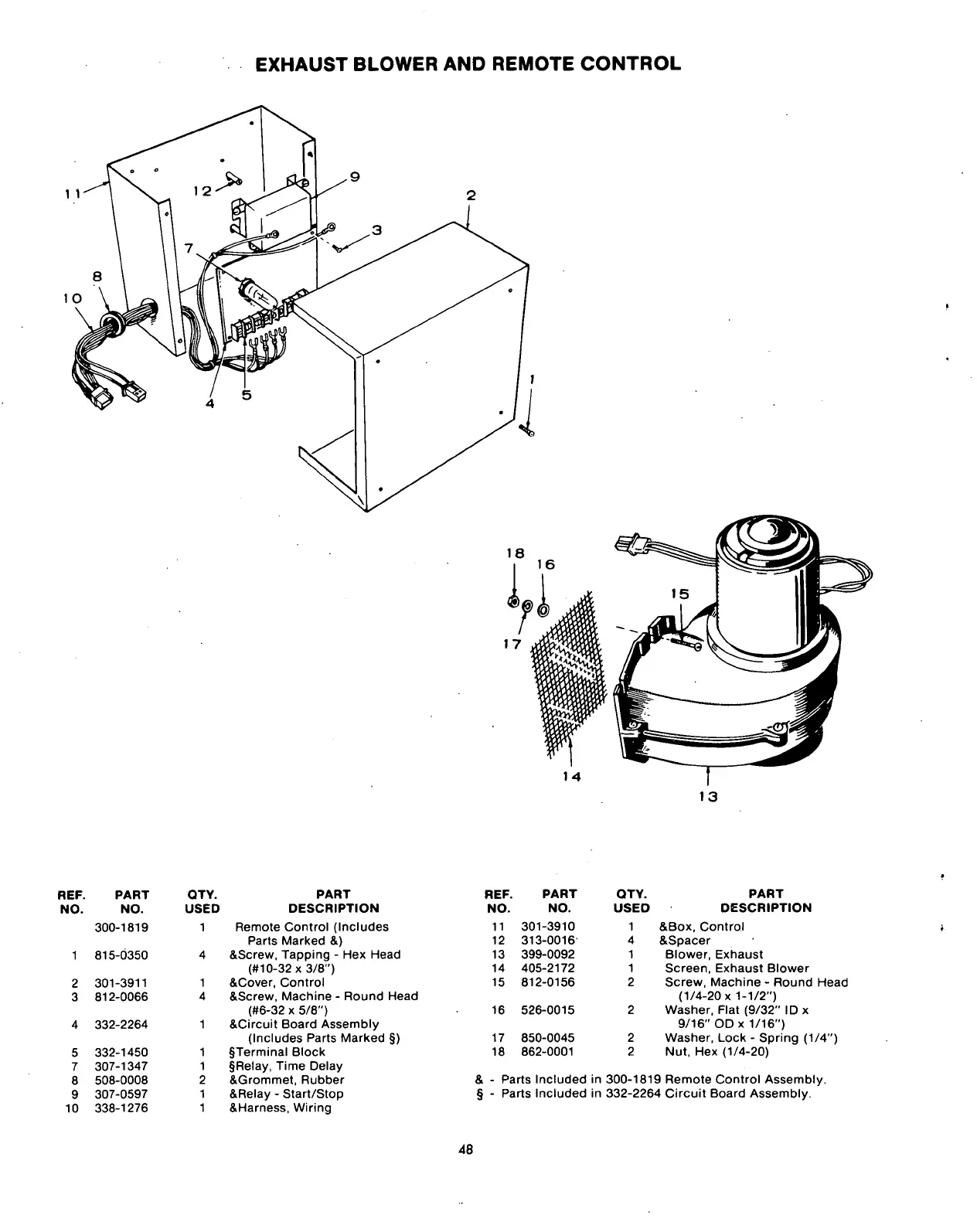

EXHAUST BLOWER AND REMOTE CONTROL
REF. PART
QTY.
PART REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
NO.
NO. USED DESCRIPTION
300-1819 1
Remote Control (Includes
11
301-3910
1 &Box, Control
Parts Marked &) 12 313-0016- 4 &Spacer
1
815-0350
4 &Screw, Tapping - Hex Head 13 399-0092 1 Blower, Exhaust
(#10-32 x 3/8")
14 405-2172 1 Screen, Exhaust Blower
2
301-3911
1
&Cover, Control
15 812-0156 2 Screw, Machine - Round Head
3
812-0066
4 &Screw, Machine - Round Head
(1/4-20 x 1-1/2")
(#6-32 x 5/8") 16 526-0015
2 Washer, Flat (9/32" ID x
4
332-2264
1
SCircuit Board Assembly
9/16" OD x 1/16")
(Includes Parts Marked §)
17 850-0045 2 Washer, Lock - Spring (1/4")
5
332-1450
1 §Terminal Block 18 862-0001 2 Nut, Hex (1/4-20)
7
307-1347 1
§Relay, Time Delay
8
508-0008 2 &Grommet, Rubber & - Parts Included in 300-1819 Remote Control Assembly.
9
307-0597
1
&Relay - Start/Stop
§ - Parts Included in 332-2264 Circuit Board Assembly.
10
338-1276
1 &Harness, Wiring
48
