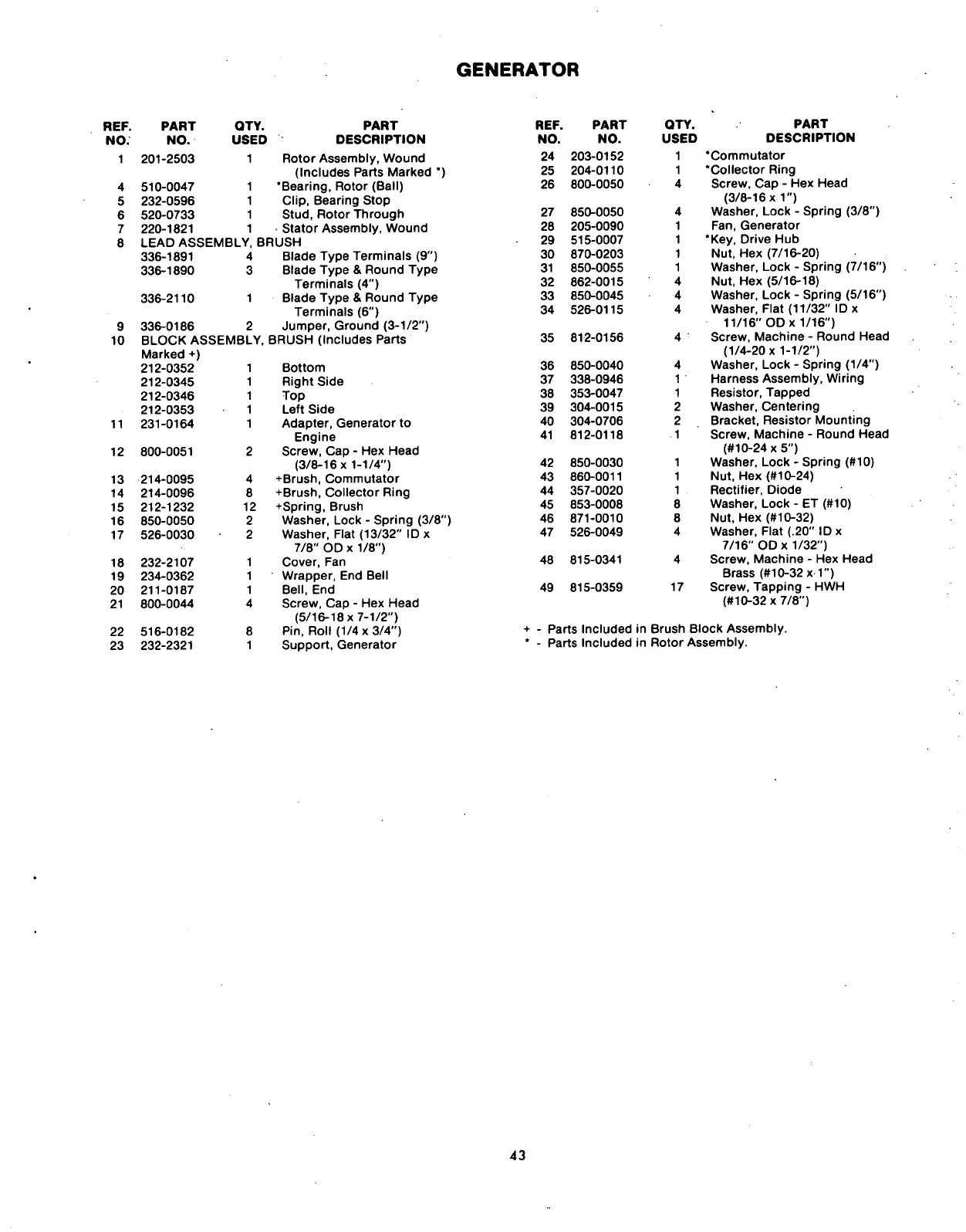

GENERATOR
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
1 201-2503 1
Rotor Assembly, Wound
(Includes Parts Marked *)
4
510-0047
1
'Bearing,
Rotor (Ball)
5
232-0596
1
Clip,
Bearing Stop
6
520-0733
1
Stud,
Rotor Through
7 220-1821
1
Stator Assembly, Wound
8
LEAD ASSEMBLY, BRUSH
336-1891
4
Blade Type Terminals (9")
336-1890
3
Blade Type & Round Type
Terminals (4")
336-2110
1
Blade Type & Round Type
Terminals (6")
9
336-0186
2
Jumper, Ground (3-1/2")
10
BLOCK ASSEMBLY, BRUSH (Includes Parts
Marked +)
212-0352 1 Bottom
212-0345
1
Right Side
212-0346
1
Top
212-0353
1 Left Side
11
231-0164 1
Adapter, Generator to
Engine
12 800-0051
2
Screw, Cap - Hex Head
(3/8-16 x
1-1/4")
13
214-0095 4
+Brush,
Commutator
14 214-0096
8
+Brush,
Collector Ring
15
212-1232
12
+Spring,
Brush
16
850-0050
2
Washer, Lock - Spring (3/8")
17 526-0030
2
Washer, Flat (13/32" ID x
7/8" OD x 1/8")
18
232-2107 1
Cover, Fan
19
234-0362
1 Wrapper, End Bell
20
211-0187
1
Bell,
End
21
800-0044
4 Screw, Cap - Hex Head
(5/16-18x7-1/2")
22
516-0182 8
Pin,
Roll (1/4x3/4")
23
232-2321 1 Support, Generator
REF.
PART
QTY.
NO. NO.
USED
24 203-0152
1
25
204-0110
1
26
800-0050 4
27 850-0050
4
28
205-0090
1
29
515-0007 1
30
870-0203 1
31
850-0055 1
32
862-0015
4
33
850-0045
4
34 526-0115
4
35
812-0156
4
36
850-0040
4
37
338-0946 1
38
353-0047 1
39
304-0015
2
40
304-0706
2
41 812-0118
1
42 850-0030
1
43
860-0011
1
44
357-0020 1
45
853-0008 8
46
871-0010
8
47
526-0049 4
48
815-0341
4
49 815-0359
17
PART
DESCRIPTION
"Commutator
"Collector Ring
Screw, Cap - Hex Head
(3/8-16 x 1")
Washer, Lock - Spring (3/8")
Fan,
Generator
"Key, Drive Hub
Nut, Hex (7/16-20)
Washer, Lock - Spring (7/16")
Nut, Hex (5/16-18)
Washer, Lock - Spring (5/16")
Washer, Flat (11/32" IDx
11/16"
ODx
1/16")
Screw, Machine - Round Head
(1/4-20 x
1-1/2")
Washer, Lock - Spring (1/4")
Harness Assembly, Wiring
Resistor, Tapped
Washer, Centering
Bracket, Resistor Mounting
Screw, Machine - Round Head
(#10-24 x 5")
Washer, Lock - Spring (#10)
Nut, Hex (#10-24)
Rectifier, Diode
Washer, Lock - ET (#10)
Nut, Hex (#10-32)
Washer, Flat (.20" IDx
7/16" OD x
1/32")
Screw, Machine - Hex Head
Brass (#10-32 x-1")
Screw, Tapping - HWH
(#10-32x7/8")
- Parts Included in Brush Block Assembly.
- Parts Included in Rotor Assembly.
