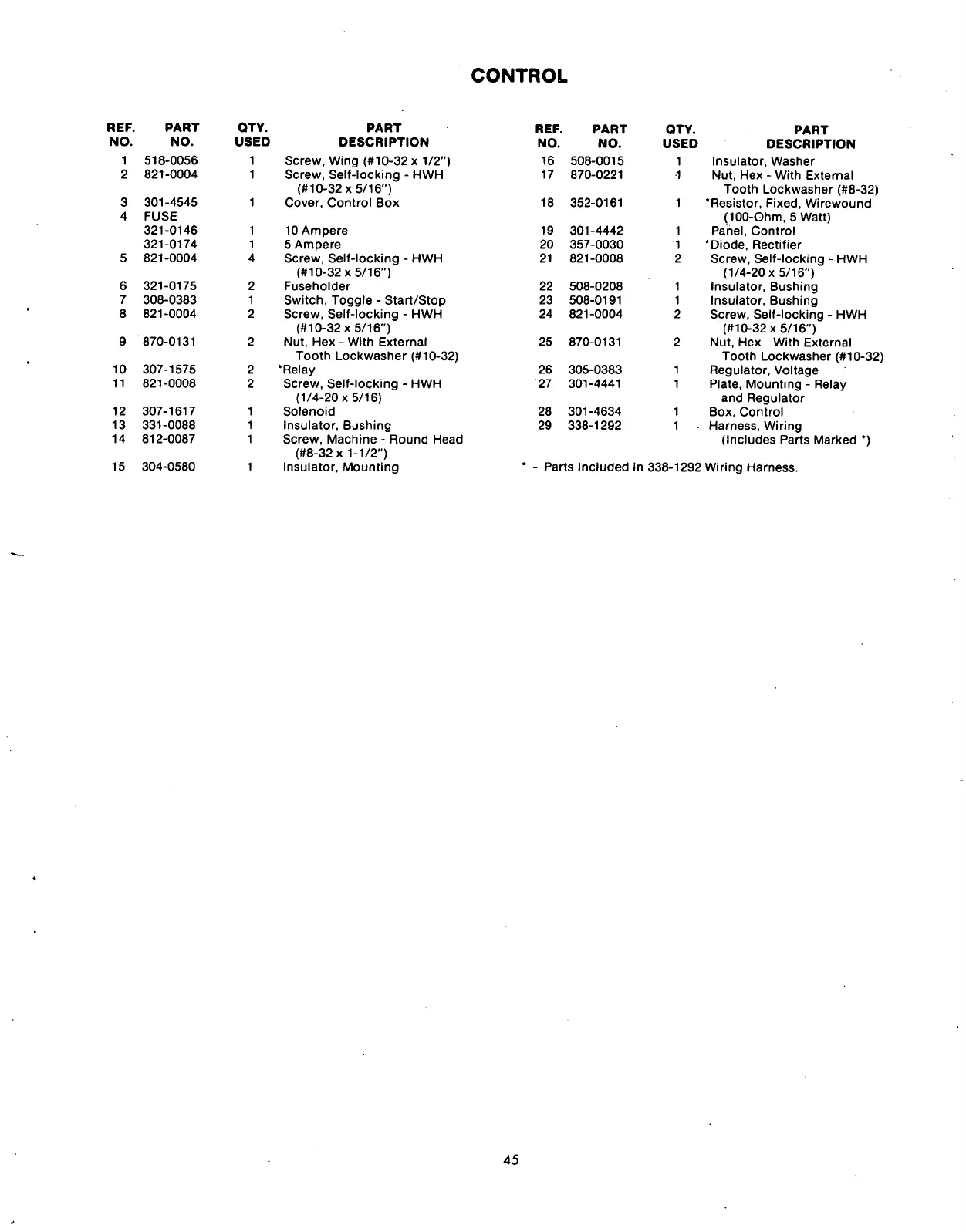

CONTROL
REF. PART QTY.
PART
NO. NO. USED
DESCRIPTION
1 518-0056
1
Screw, Wing (#10-32 x 1/2")
2 821-0004 1
Screw, Self-locking - HWH
(#10-32 x 5/16")
3 301-4545 1 Cover, Control Box
4 FUSE
321-0146
1
10 Ampere
321-0174 1 5 Ampere
5 821-0004 4 Screw, Self-locking - HWH
(#10-32x5/16")
6 321-0175 2 Fuseholder
7
308-0383
1 Switch, Toggle - Start/Stop
8 821-0004 2 Screw, Self-locking - HWH
(#10-32x5/16")
9 870-0131 2 Nut, Hex - With External
Tooth Lockwasher (#10-32)
10 307-1575 2 •Relay
11 821-0008
2 Screw, Self-locking - HWH
(1/4-20x5/16)
12 307-1617 1 Solenoid
13 331-0088
1
Insulator, Bushing
14 812-0087 1
Screw, Machine - Round Head
(#8-32 x 1-1/2")
15 304-0580 1 Insulator, Mounting
REF.
PART QTY.
NO.
NO. USED
16
508-0015 1
17 870-0221
1
18 352-0161
1
19 301-4442 1
20
357-0030 1
21 821-0008 2
22 508-0208 1
23 508-0191 1
24
821-0004 2
25
870-0131 2
26 305-0383 1
27
301-4441
1
28 301-4634 1
29 338-1292 1
PART
DESCRIPTION
Insulator, Washer
Nut, Hex - With External
Tooth Lockwasher (#8-32)
•Resistor, Fixed, Wirewound
(100-Ohm, 5 Watt)
Panel, Control
'Diode, Rectifier
Screw, Self-locking - HWH
(1/4-20x5/16")
Insulator, Bushing
Insulator, Bushing
Screw, Self-locking - HWH
(#10-32x5/16")
Nut, Hex - With External
Tooth Lockwasher (#10-32)
Regulator, Voltage
Plate, Mounting - Relay
and Regulator
Box, Control
Harness, Wiring
(Includes Parts Marked *)
- Parts Included in 338-1292 Wiring Harness.
45
