7 Drive Mounting

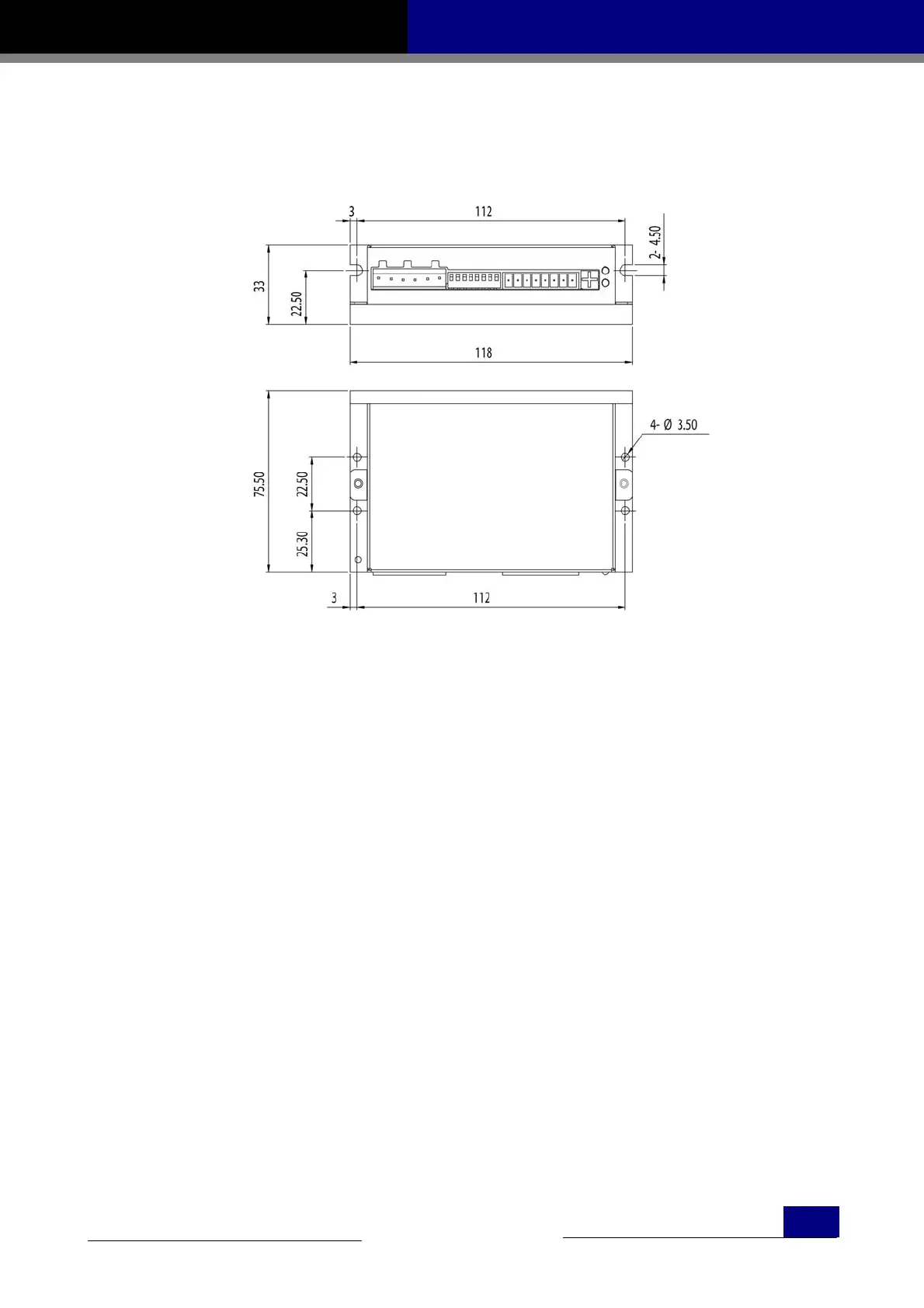

7.1 Mechanical Outline
Unit:mm
7.2 Mounting the Drive
You can mount your drive on the wide or the narrow side of the chassis. If you mount the
drive on the wide side, use M3 screws through the four corner holes. For narrow side
mounting applications, you can use M3 screws in the two side holes.
The amplifiers in the drive generate heat. To operate the drive continuously at maximum
power you should take compulsory air-cooled method。
Never use your drive in a space where there is no air flow or where other devices cause the
surrounding air to be more than 40 °C. Never put the drive where it can get wet or where
metal particles can get on it.
