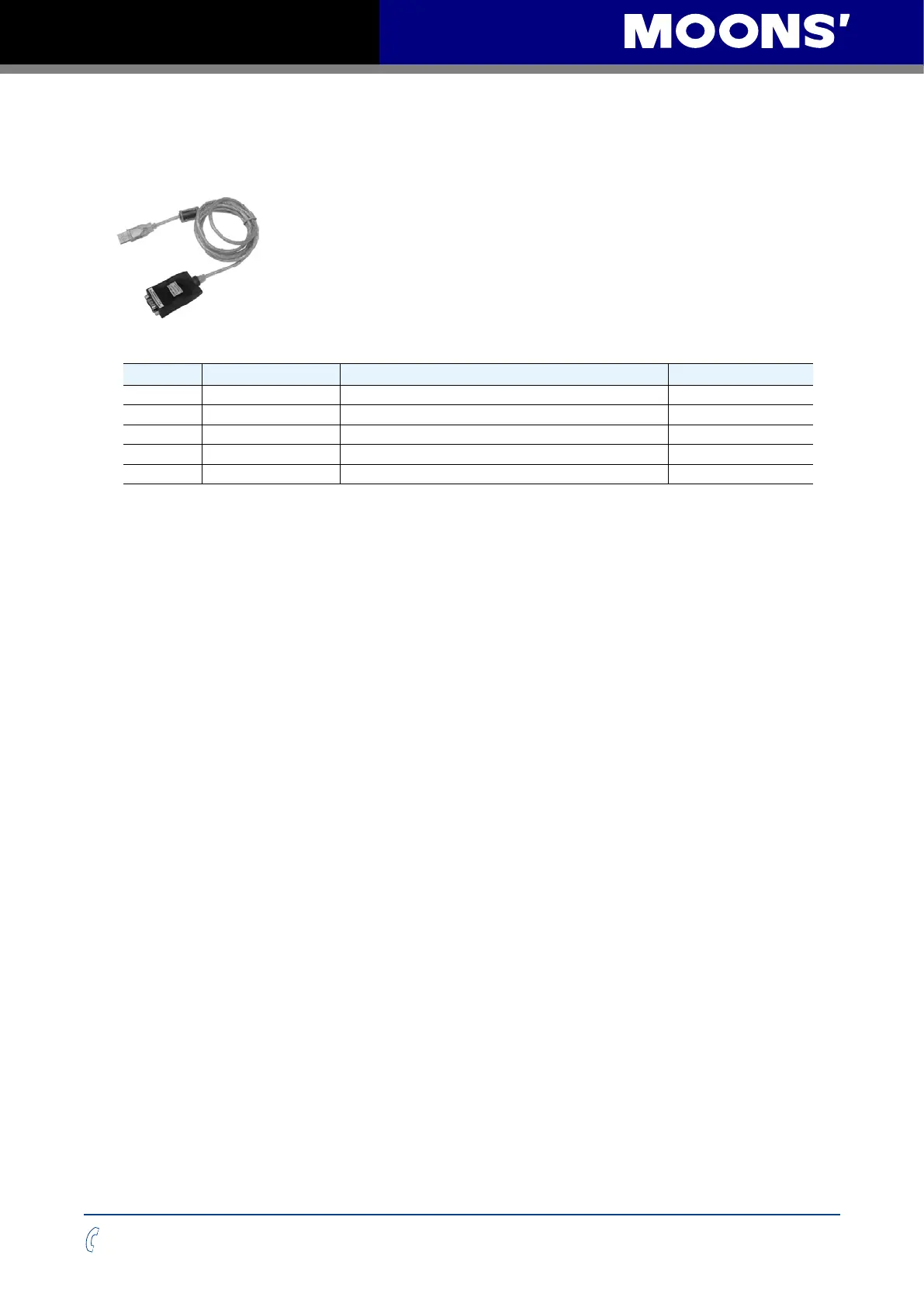

7.2.9 USB Adapter
Model: MS-USB-RS232-01
Description: USB-RS232 Converter
7.3 Mating Connector to the Drive
v Description P/N Vender
J1 Power Connector Housing：39-01-3028 Crimp：39-00-0038 Molex
J2 Motor Connector Housing：39-01-3048 Crimp：39-00-0038 Molex
J3 Encoder Connector Housing：501646-1600 Crimp：501648-1000 Molex
J4 I/O Connector Housing：501646-3200 Crimp：501648-1000 Molex
J5 RS-232 Connector Housing：ZER-04V-S Crimp: SZE-002T-P0.3 JST
