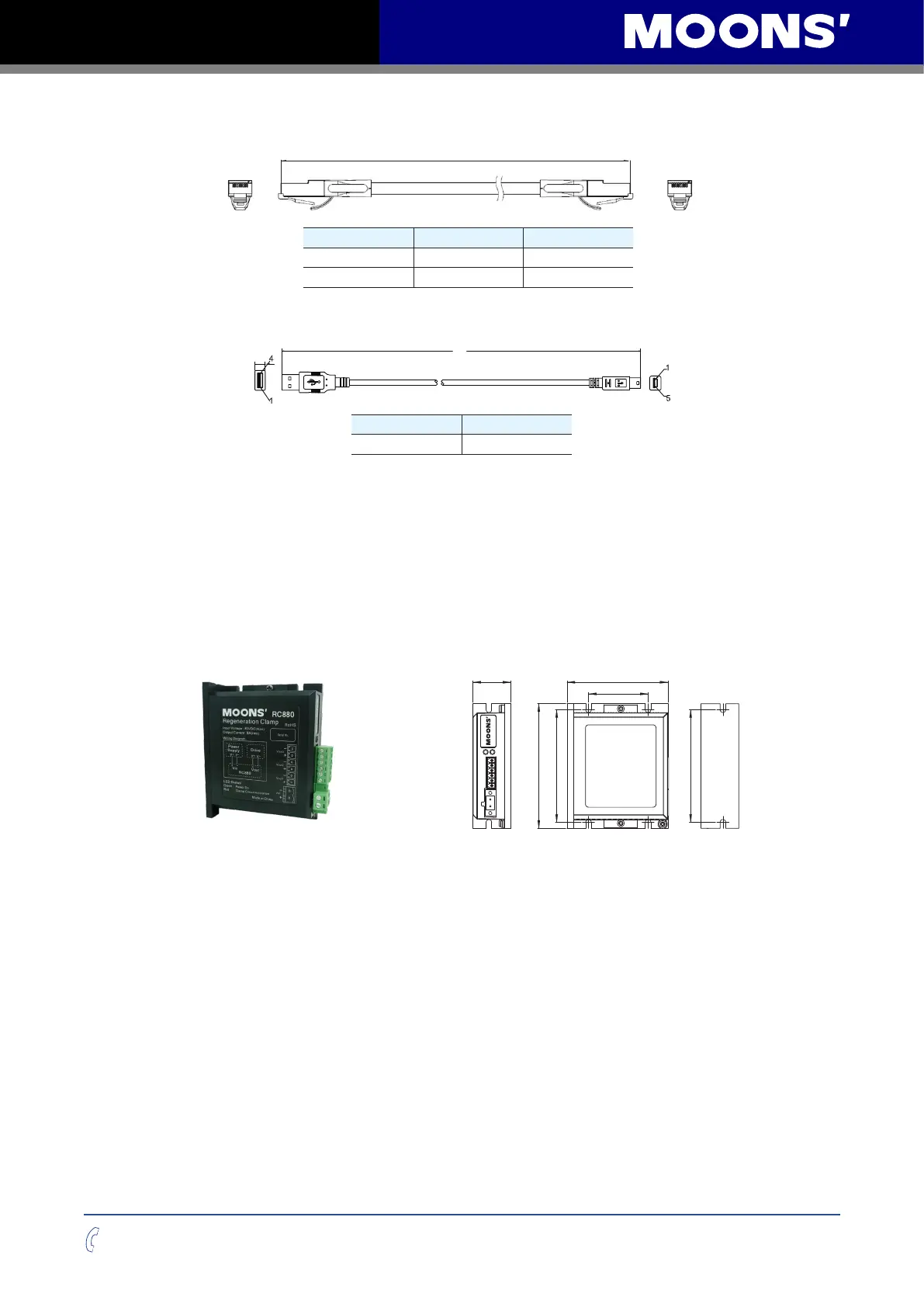

7.2.6 Network Cable
L
L
8 1
8 1
Common Type Shielded Type Length(L)
2012-030 2013-030 0.3M
2012-300 2013-300 3M
7.2.7 USB Mini-B Configuration Cable
L
Model Length(L)
2620-150 1.5M
7.2.8 Regeneration Clamp RC880
MOONS’offers the RC880“regeneration clamp”to solve this problem. If in doubt, use an
RC880 for your first installation. If the“Regen”LED on the RC880 never flashes, you don’t need
the clamp.
Maximum input voltage：80VDC
Maximum output current：8A（rms）
Maximum absorbed power：50W
76
45
94 85
85
28.6
Unit：mm
