2.5 Connecting the Power Supply
Connect power supply “+” terminal to the drive terminal labeled “V+”.
Connect power supply “-” terminal to the drive terminal labeled “V-”.
STF03 accepts DC voltage range from 12 – 48VDC
STF05 accepts DC voltage range from 24 – 48VDC
STF06 accepts DC voltage range from 12 – 48VDC
STF10 accepts DC voltage range from 24 – 70VDC
Warning: DO NOT reverse the wires
NOTE: DO NOT apply power until all connections to the drive have been made

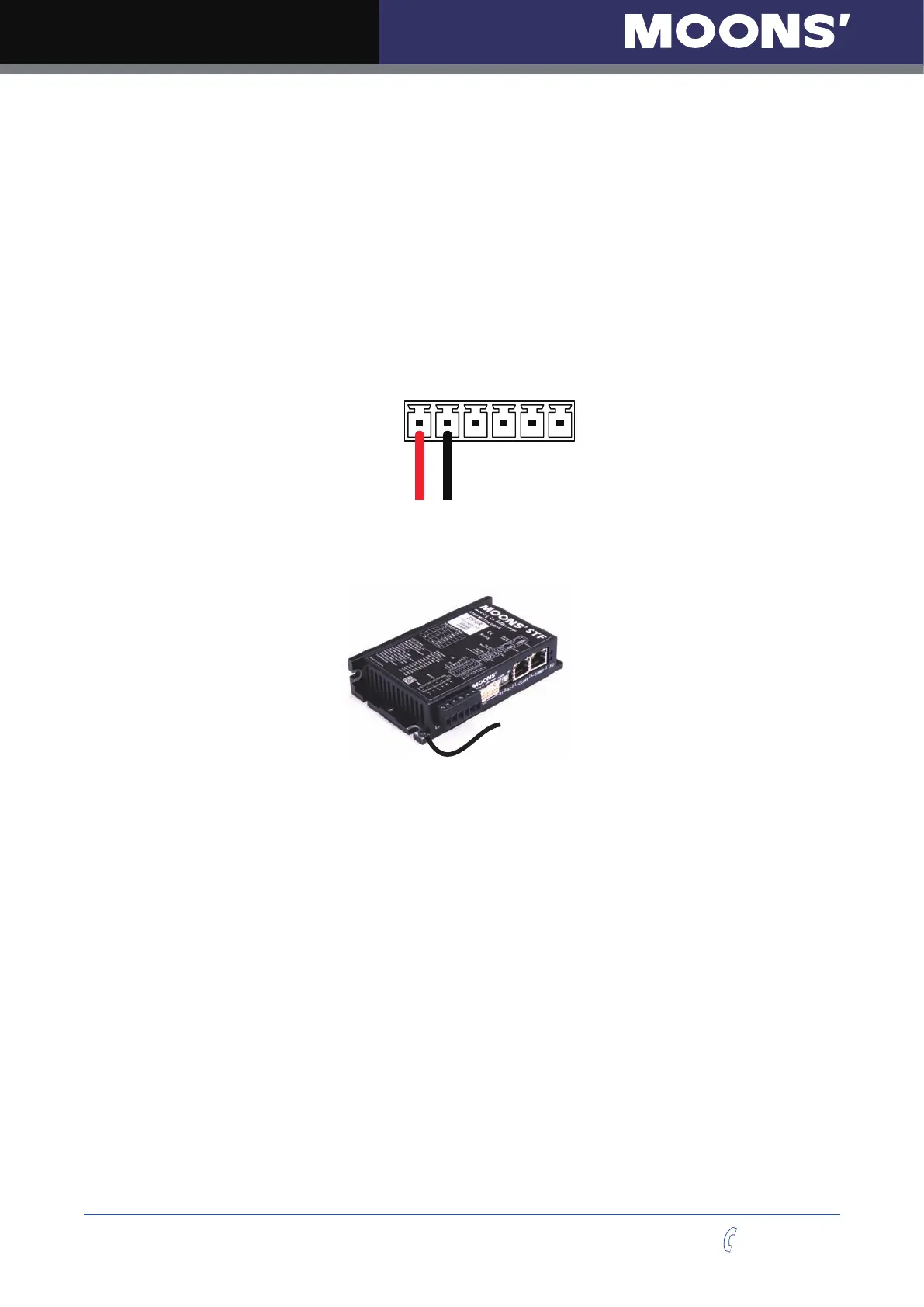

V+
J1
V-
Power Connector
Ensure a proper earth ground connection by using the screw on the left side of the chassis.
To Earth Ground
Please read “choosing a power supply” for more details.
