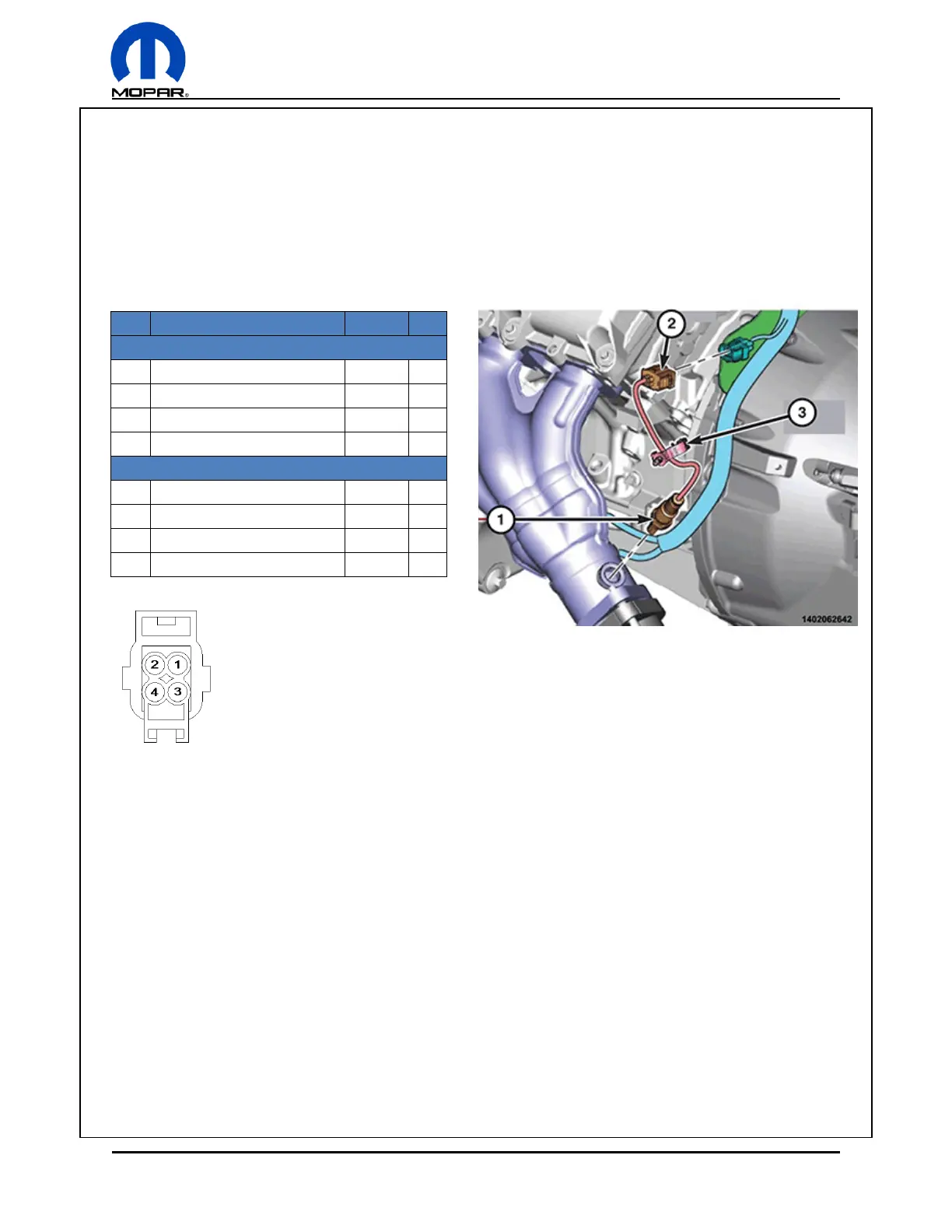

O2 Sensors
The threads of the new oxygen sensors are factory coated with anti-seize compound to aid in
removal. Do not add any additional anti-seize compound to threads of a new oxygen sensor. Install the
oxygen sensor (1) into the exhaust manifold and tighten to the proper to 52 N∙m (38 Ft. Lbs.). Connect
the oxygen sensor wire harness connector (2) and secure the wire harness to an appropriate location
(3).
Upstream (Left & Right)
Pin
Function
Color
GA
O2 Driver Front
1
O2 1/1 HEATER CONTROL
BR/LG
16
2
GROUND
BK
16
3
O2 RETURN UPSTREAM
BR/DG
20
4
O2 1/1 SIGNAL
DB/LB
20
O2 Passenger Front
1
O2 2/1 HEATER CONTROL
BR/VT
16
2
GROUND
BK
16
3
O2 RETURN UPSTREAM
BR/DG
20
4
O2 2/1 SIGNAL
DB/LG
20
