Crate HEMI® Engine Kit Instruction Sheet www.mopar.com
Rev Level 5.0 – K6862625 15

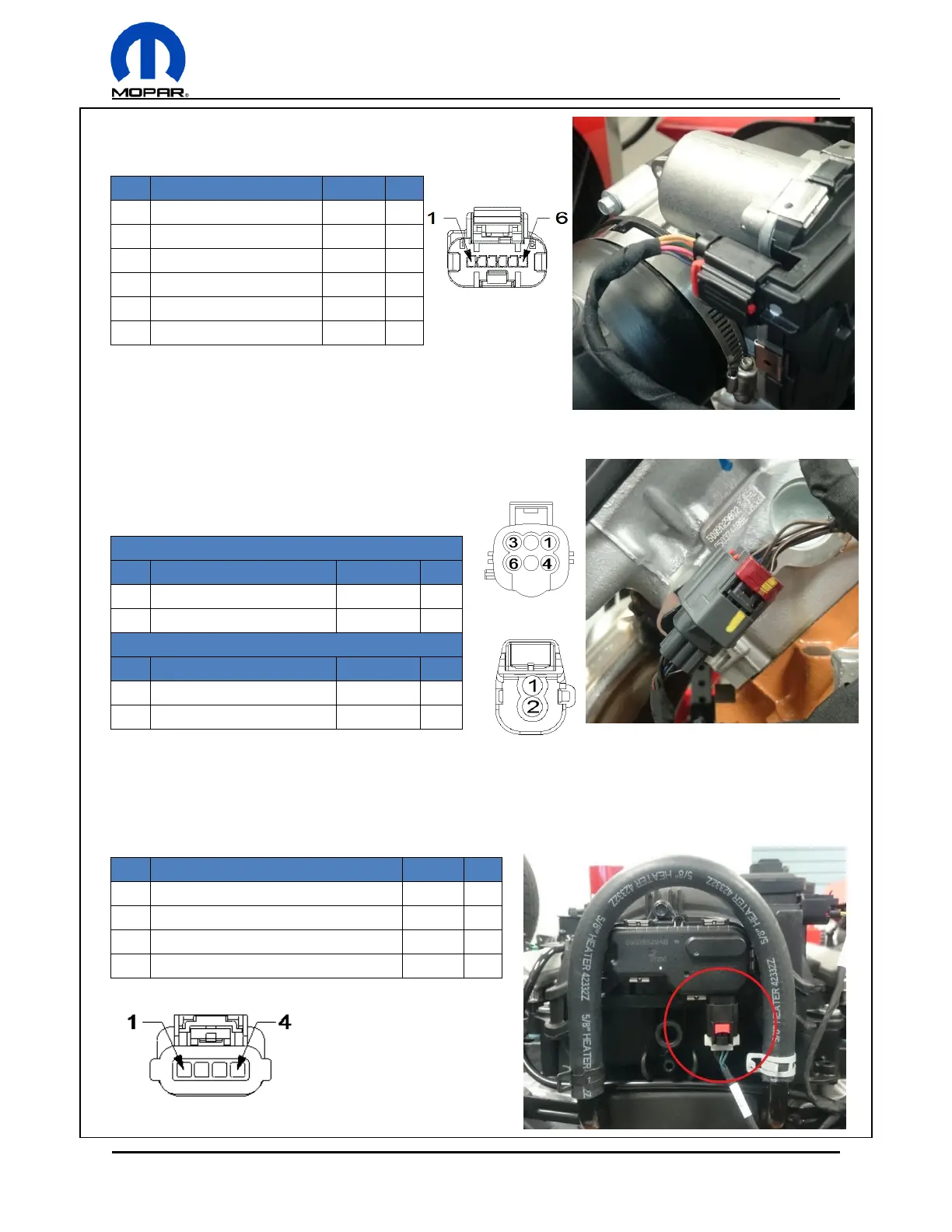

Throttle Position is a 6 pin connector that is on the throttle
body assembly. Do not modify any wiring in this connector.
Pin
Function
Color
GA
1
ETC MOTOR (+)
TN/YL
18
2
ETC MOTOR (-)
TN/OR
18
3
TP 2 SIGNAL
BR/DG
20
4
5 VOLT SUPPLY
PK/YL
20
5
TP 1 SIGNAL
BR/OR
20
6
TP SENSOR RETURN
BR/DB
20
Variable Cam Timing (VCT)
VCT solenoid is located under the intake manifold. This will
remain connected on the engine, connect the VCT Inline 6 pin
connector.
VCT Inline
Pin
Function
Color
GA
1
VCT CONTROL
DB
20
2
GROUND
BK
20
VCT
Pin
Function
Color
GA
1
GROUND
BK
20
2
VCT CONTROL
DB
20
Short Runner Valve (SRV) (6.4L versions only)
The short runner valve is located on the back of the intake manifold above the vacuum reference fitting.
The 4 pin connector for the short runner valve faces down.
Pin
Function
Color
GA
1
FUSED ASD RELAY OUTPUT
BR/YL
16
2
GROUND
BK
16
3
SRV ACTUATOR CONTROL SIGNAL
DB/LG
18
4
SRV SENSE OUPUT
DB/YL
18
