Mopar Crate HEMI 392 - Page 14

Crate HEMI® Engine Kit Instruction Sheet www.mopar.com
Rev Level 5.0 – K6862625 14

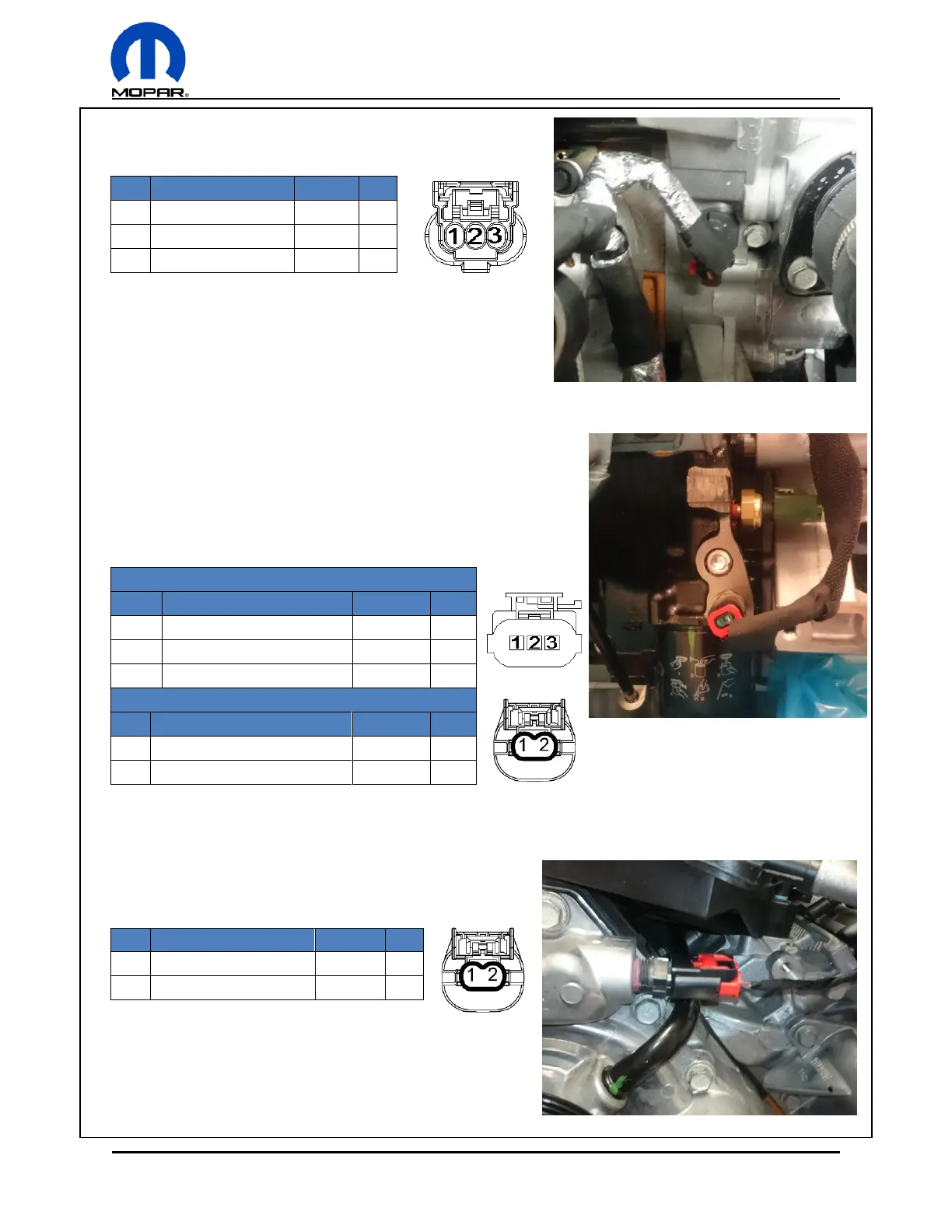

Cam Position Sensor, labeled “CMP” is a 3 pin connector that
is located beside the upper radiator hose neck.
Pin
Function
Color
GA
1
5 VOLT SUPPLY
YL/PK
20
2
SENSOR GROUND
DB/DG
20
3
CMP SIGNAL
DB/GY
20
Oil Temperature and Pressure Sensor are connected near the oil
filter location. The oil temperature sensor is facing the passenger
side of the block and is directly above the filter location. The oil
pressure sensor is located higher and to the right of the oil
temperature sensor, it is plugged in facing the front of the engine.
Oil Pressure
Pin
Function
Color
GA
1
5 VOLT SUPPLY
PK/YL
20
2
OIL PRESSURE SIGNAL
VT/GY
20
3
SENSOR GROUND
DB/DG
20
Oil Temp
Pin
Function
Color
GA
1
SENSOR GROUND
BR/WT
20
2
ENGINE OIL TEMP SIGNAL
VT/BR
20
Coolant Temperature Sensor has a 2 pin connector on the
front of the block above the water pump pulley.
Pin
Function
Color
GA
1
ECT SIGNAL
VT/OR
20
2
SENSOR GROUND
BR/WT
20
