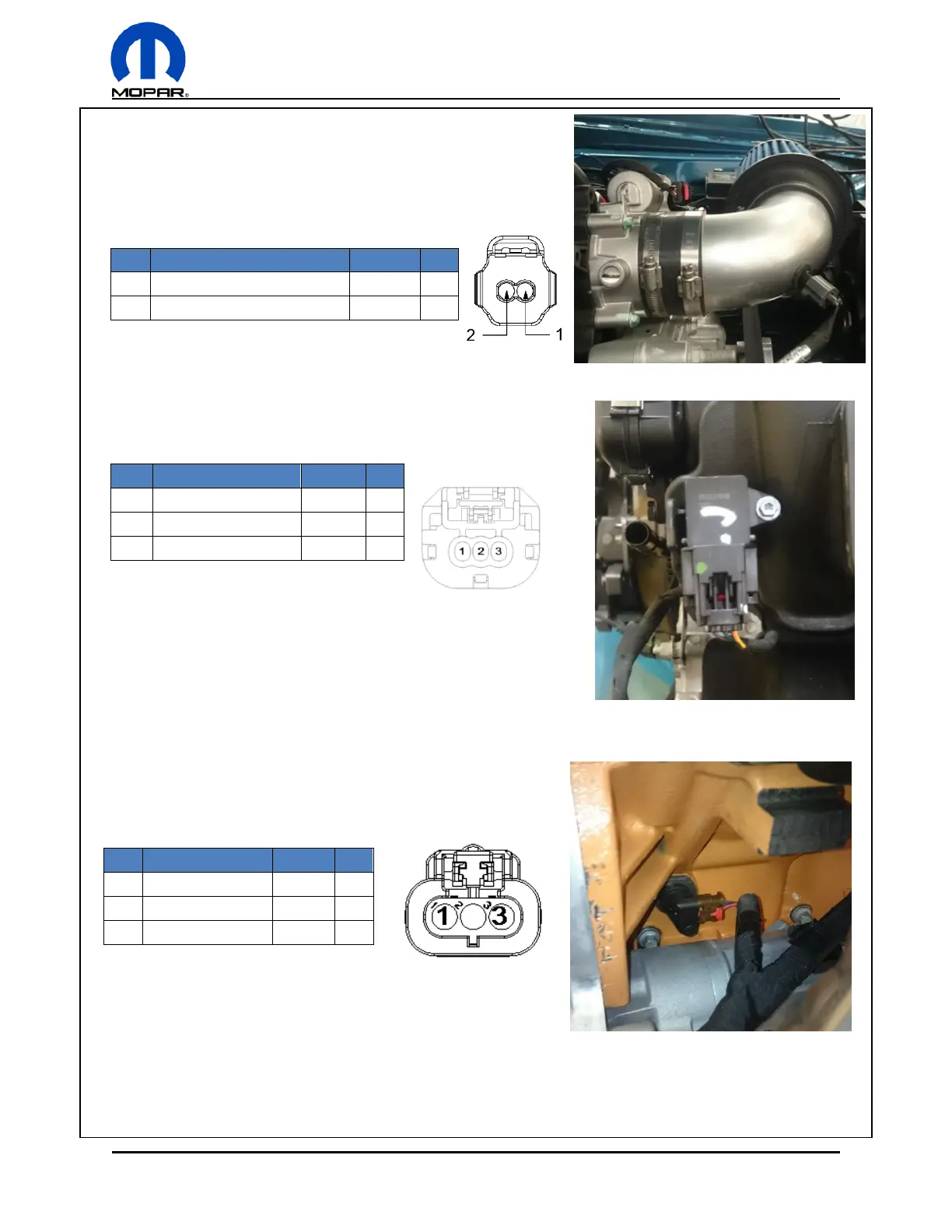

Charge Air Temperature Sensor is to be plugged in at the air
intake, ensure that there is little to no tension on this sensor
pigtail as this may damage sensor and sensor plug. A hole may
be drilled into the pipe up to 152 mm (6 inches) away from the
throttle body for installation.
Manifold Absolute Pressure (MAP) Sensor is located on the back of
the intake manifold. The MAP sensor has a 3 pin connector.
Crank Position Sensor is located on the passenger side of the
engine near the bell housing flange. It is installed onto the
engine block and has a 3 pin brown connector.
