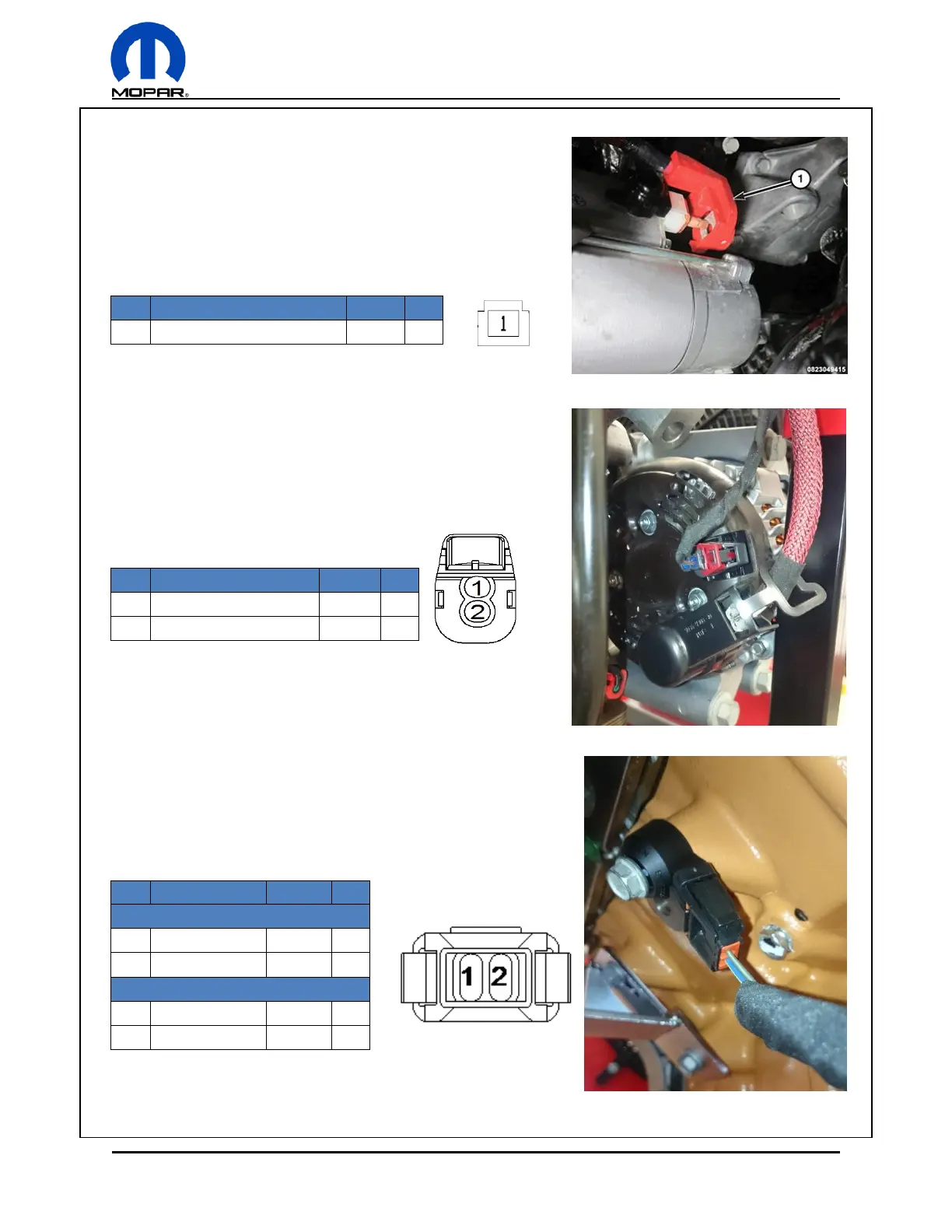

Starter Motor
There are 2 connections to be made for the starter, the starter
battery connector and the starter solenoid connector. These
wires will need to be extended if the starter will be placed on
the driver side of the vehicle. The starter battery connector
eyelet may not be compatible with all starter options. The
eyelet may be replaced with an alternative eyelet.
Alternator
The alternator has 2 connectors, the alternator connector and
the alternator battery connector. Once the eyelet for the
alternator battery connector is properly fastened in place,
ensure that the cover is securely in place to avoid accidental
connections to this terminal.
Engine Sensors
The knock sensors are bolted onto both sides of the engine block.
They are located underneath the exhaust manifolds. Plug in the 2
pin connector to each knock sensor.
