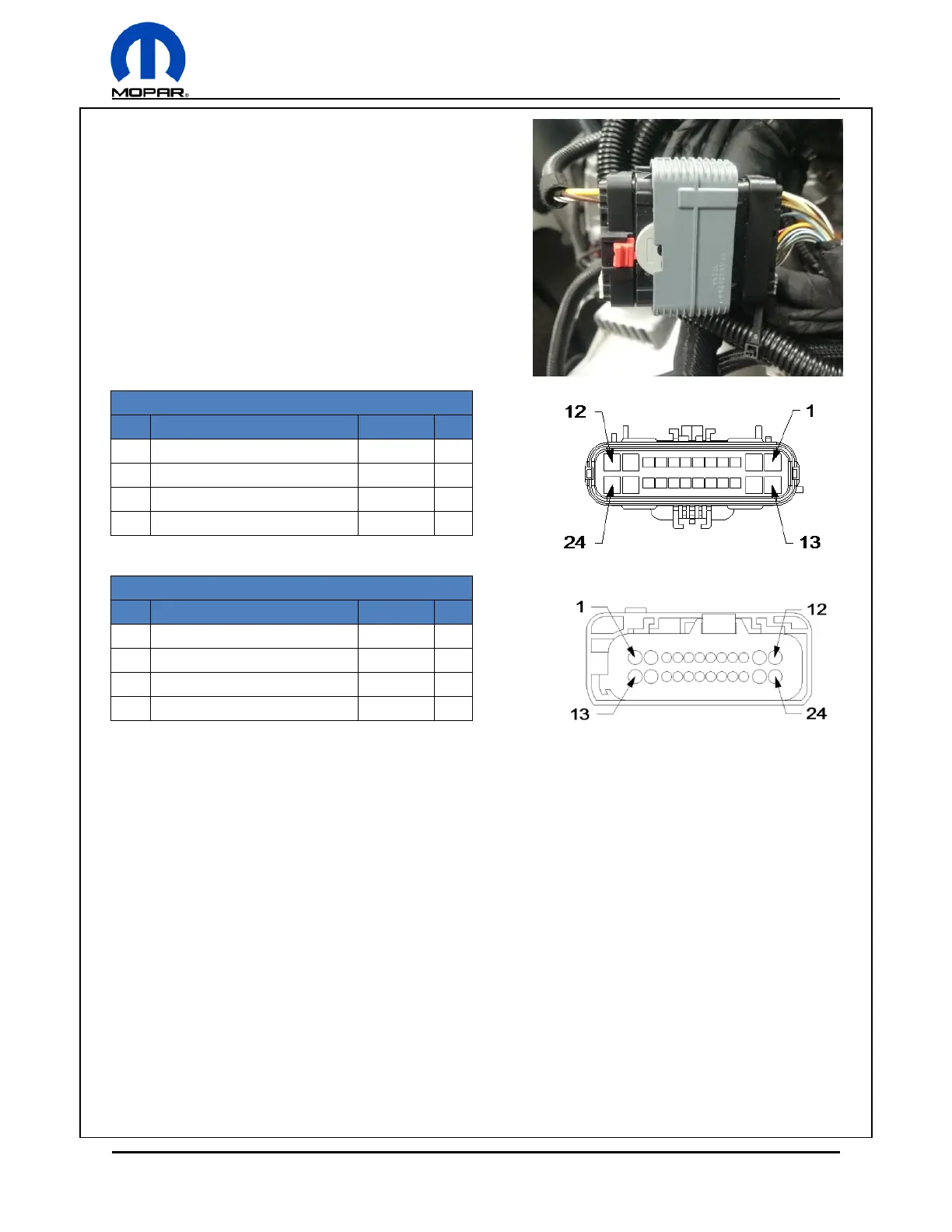

Inline Engine and Body Harness
The inline engine and body harness connector is the only
connection between the body harness and the engine
harness. Some cavities may be populated with wires,
however those wires are not used in this configuration.
Inline Engine
Pin
Function
Color
GA
1
STARTER RELAY OUTPUT
YL / GY
14
2
FUSED ASD RELAY OUTPUT
BR / YL
16
13
ASD CONTROL OUTPUT
BR / WT
16
21
EVAP PURGE CONTROL
DB / WT
20
Inline Body
Pin
Function
Color
GA
1
STARTER RELAY OUTPUT
YL / GY
14
2
FUSED ASD RELAY OUTPUT
BR
16
13
ASD CONTROL OUTPUT
BR / WT
16
21
EVAP PURGE CONTROL
DB / WT
20
All diagrams are wire insertion view
