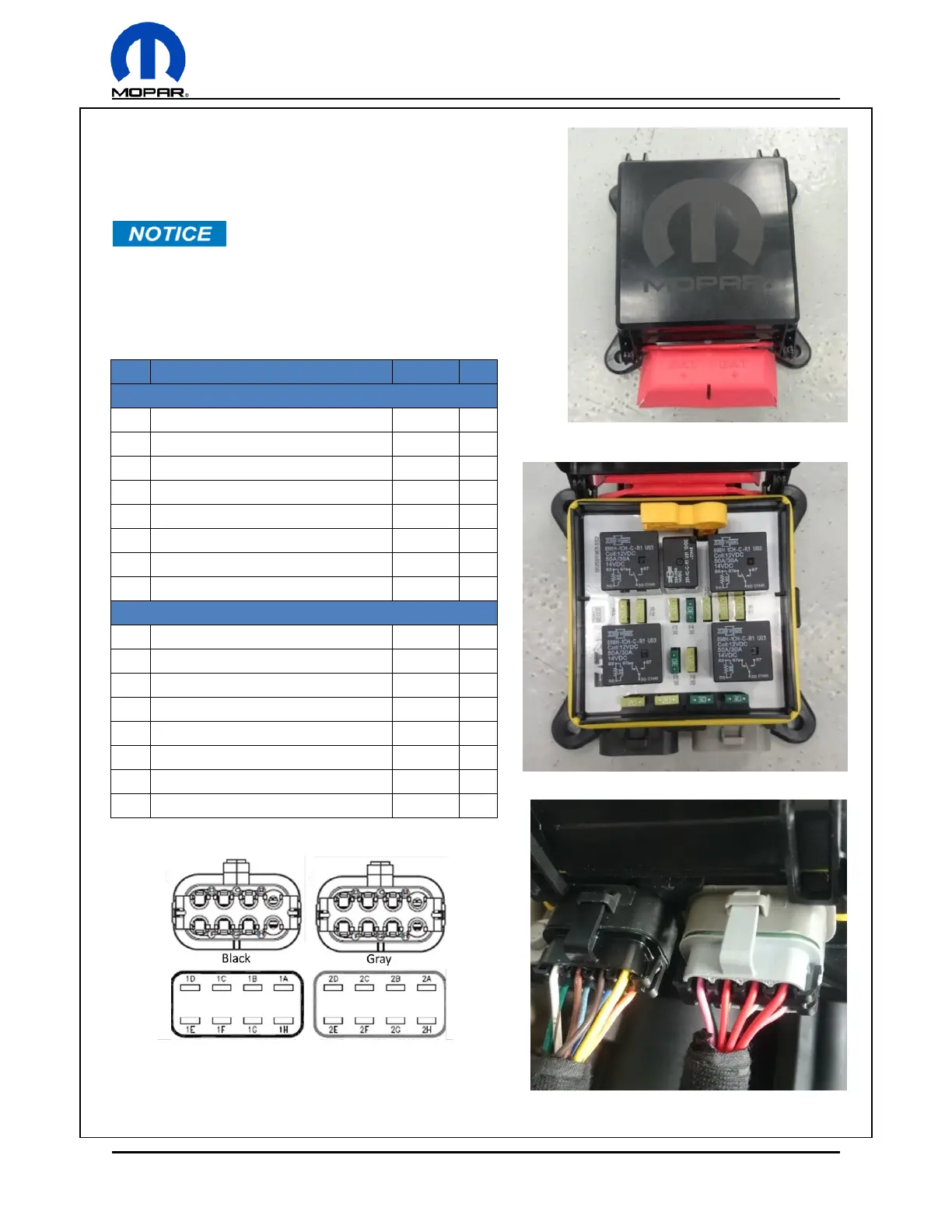

Power Distribution Center (PDC)
There are 2 connectors that plug into the PDC and 2 battery
post terminals. Torque for the PDC feet is a maximum of 2.7
N·m (24 In. Lbs.).
The PDC connectors are environmentally sealed. This unit can
be mounted anywhere in the vehicle, however it is not
recommended to be installed near hot locations such as the
exhaust system or high splash areas such as wheel wells.
COOLING FAN RELAY CONTROL
IGN/FUEL PUMP RELAY RETURN
All diagrams are wire insertion view
To Next Page
