Crate HEMI® Engine Kit Instruction Sheet www.mopar.com
Rev Level 5.0 – K6862625 20

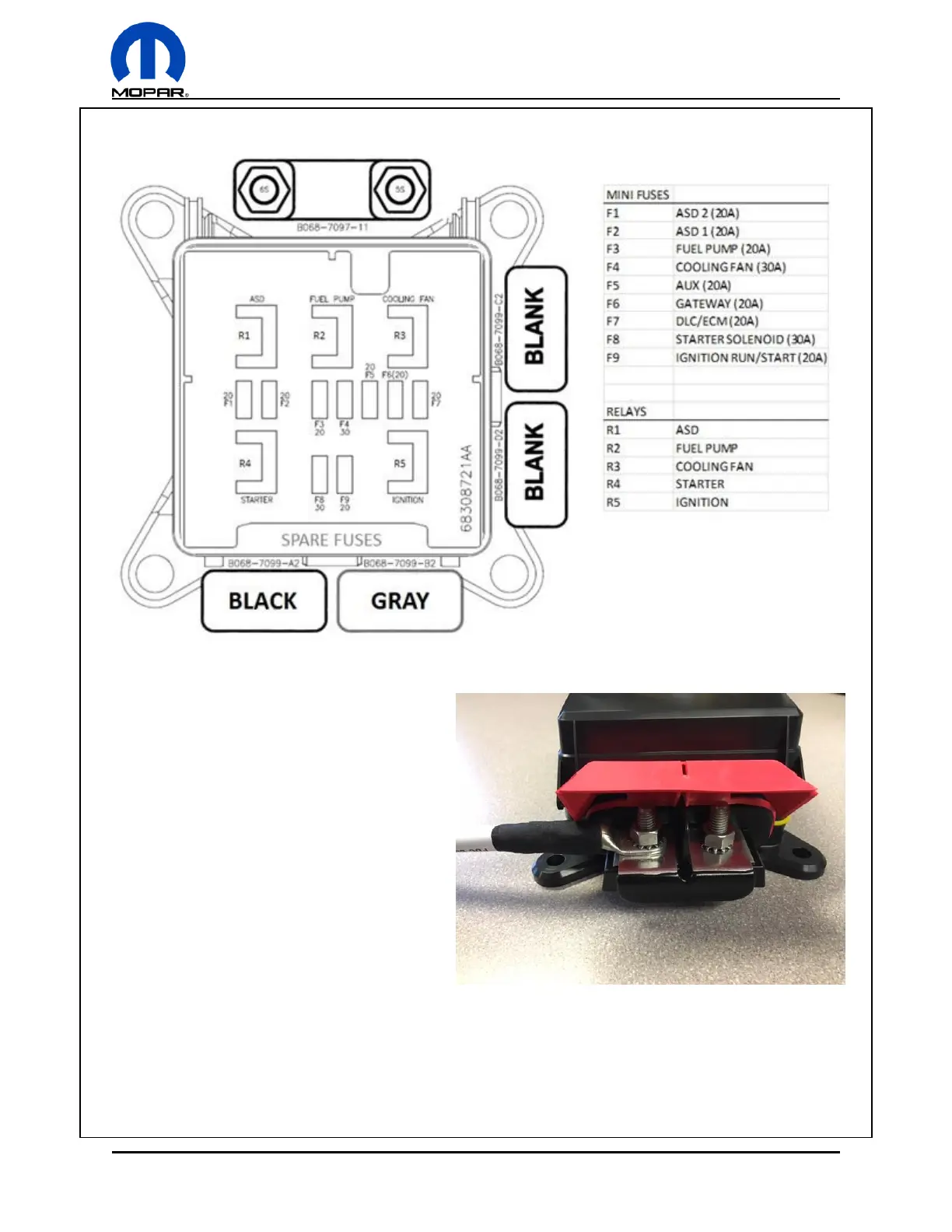

PDC Bus Bar & PDC Battery Connection
The PDC bus bar will already be installed on
the PDC. The bus bar connects both PDC
power studs together to allow for only one
power cable to be connected. Connect the PDC
Battery terminal to either power stud on the
PDC above the bus bar. The power studs’
maximum torque is 20.4 N·m (15 Ft. Lbs.), with
a max power rating of 200A. Close the terminal
flap when complete.
To Next Page
