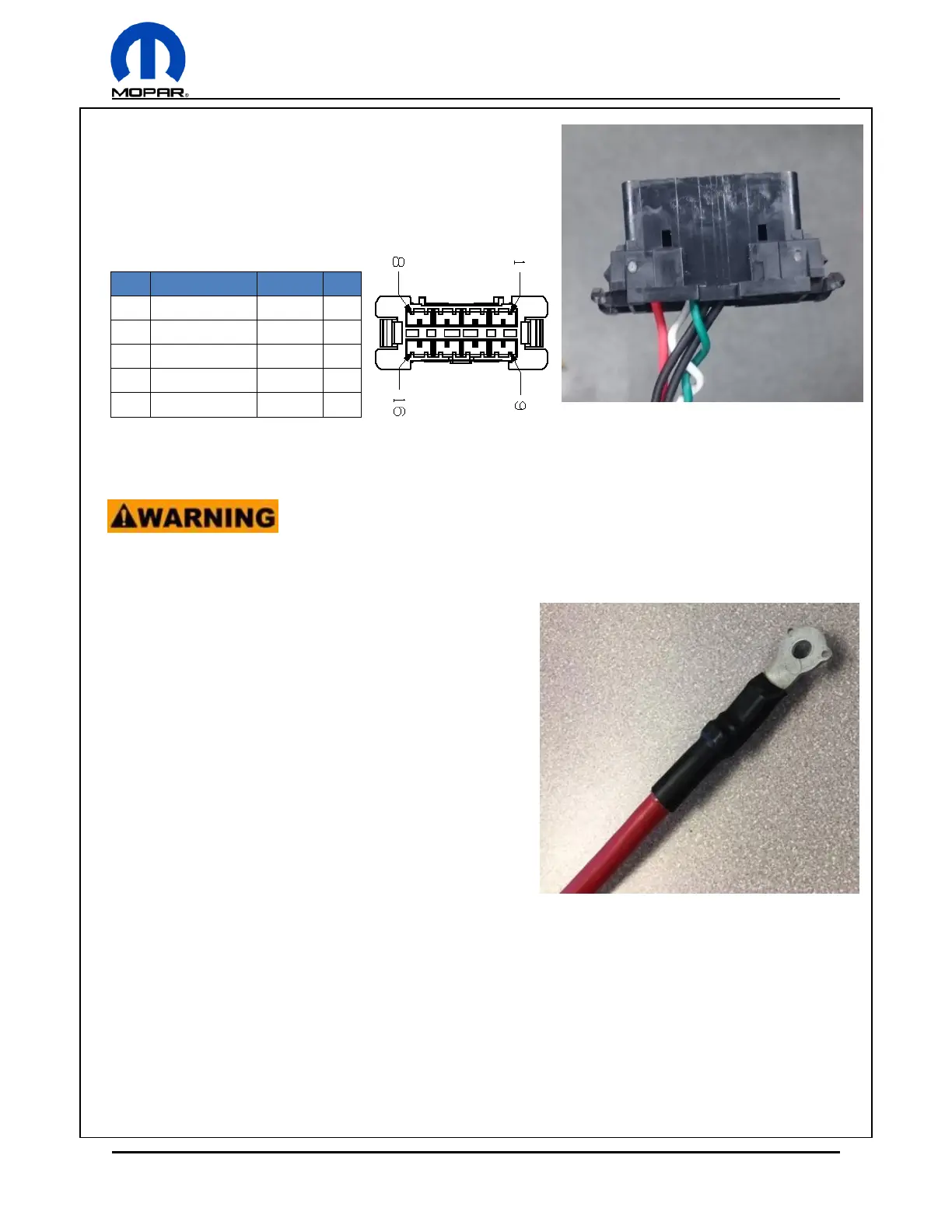

Data Link Connector (DLC)
This connector is an OBDII plug that can be mounted
anywhere in the vehicle to diagnose issues and codes the PCM
may be outputting. When reading codes, a P1400 code may
be present. This indicates an aftermarket controller is being
used.
Pin
Function
Color
GA
4
GROUND
BK
20
5
GROUND
BK
20
6
CAN C (+)
GY/WT
22
14
CAN C (-)
YL
22
16
FUSED B (+)
RD
20
Final Connection (Engine Harness)
To prevent SERIOUS INJURY, DEATH or PROPERTY DAMAGE:
 DO NOT connect battery until all connections are made.
Battery
The battery must supply a minimum of 12.65 volts.
Connect battery as final step before initiating starting
procedures. Battery terminal should not be loose.
