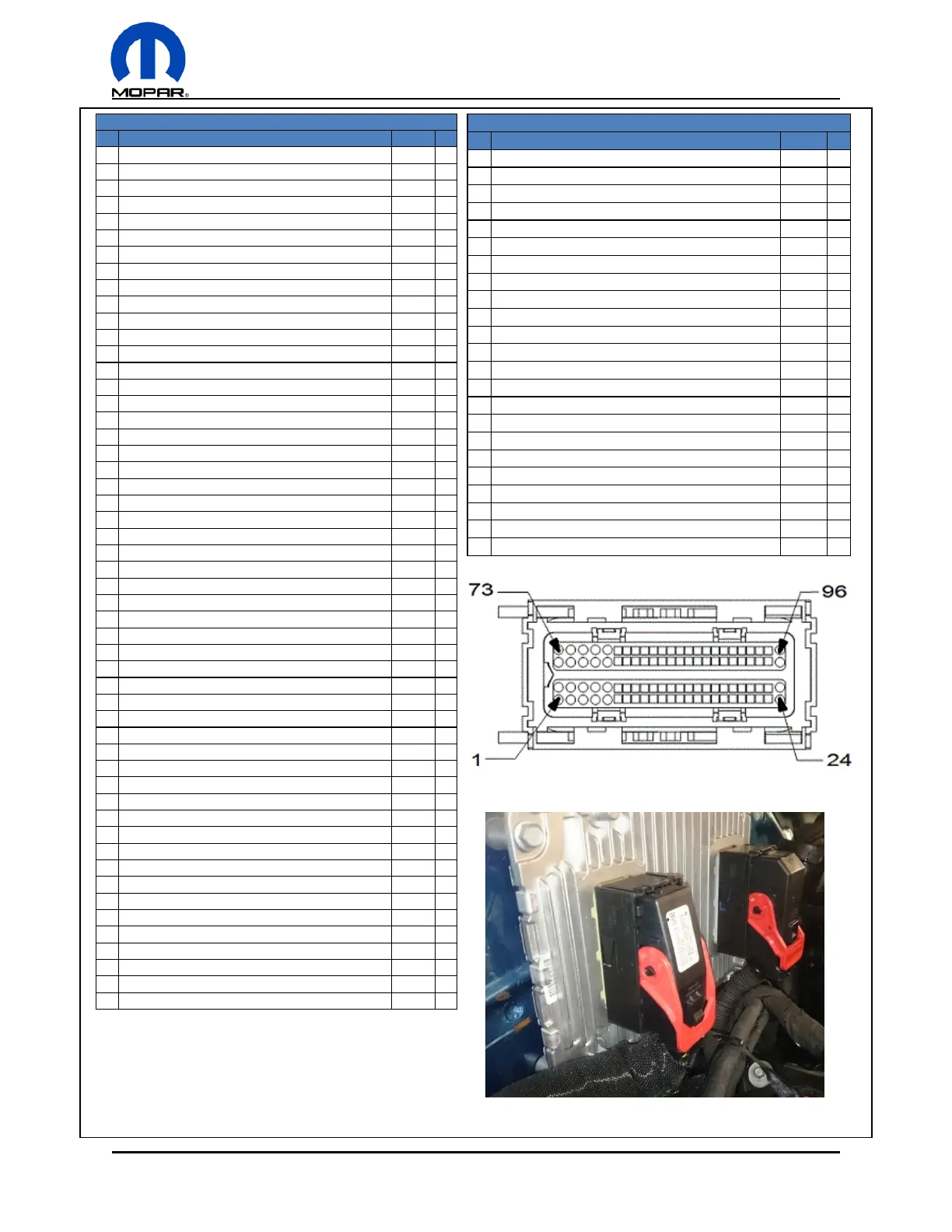

Pin Function Color GA
23 ECM RUN/START FEED PK/BR 18
33 CAN LOW STAR CONN WT/BK 20
48 FUEL PRESSURE SENSOR 5 VOLT BR/DB 20
52 ECM GROUND BK 18
53 ECM GROUND BK 18
54 FUEL PRESSURE SENSOR GROUND BR/TN 20
57 CAN HIGH STAR CONN WT/YL 20
67 PEDAL SENSOR GROUND 2 BR/RD 20
68 PEDAL SENSOR GROUND 1 BR/YL 20
69 PEDAL 5 VOLT 2 VT/BR 20
72 GROUND BK 18
73 FUEL PUMP RELAY CONTROL DB/TN 20
74 ASD RELAY FEED 2 BR/WT 16
75 ASD RELAY FEED 2 BR/WT 16
76 ASD RELAY FEED 2 BR/WT 16
78 COOLING FAN RELAY CONTROL DB/OG 20
80 ASD RELAY CONTROL BR/YL 20
88 FUEL PRESSURE SENSOR SIGNAL DB/OG 20
91 PEDAL SIGNAL 2 WT/BR 20
92 PEDAL SIGNAL 1 BR/WT 20
93 PEDAL 5 VOLT 1 BR/VT 20
94 PURGE SOLENOID DB/WT 20
96 DLC/ECM POWER FEED RD 16
Pin Function Color GA
4 OIL PRESSURE SIGNAL VT/GY 20
8 INJECTOR CONTROL 1 BR/YL 18
9 INJECTOR CONTROL 2 BR/DB 18
10 INJECTOR CONTROL 3 BR/LB 18
11 INJECTOR CONTROL 4 BR/TN 18
12 ECT SIGNAL VT/OR 20
13 KS 2 SIGNAL BR/WT 20
14 KS 1 SIGNAL DB/YL 20
19 O2 1/2 SIGNAL DB/YL 20
20 O2 RETURN DOWNSTREAM DB/DG 20
21 O2 2/2 SIGNAL BR 20
22 VCT CONTROL DB 20
24 O2 1/1 HEATER CONTROL BR/LG 16
32 GENERATOR FIELD CONTROL BR/GY 18
33 ETC MOTOR (+) TN/YL 8
34 ETC MOTOR (-) TN/OR 18
35 GENERATOR SENSE RD/VT 18
37 KS 2 RETURN WT/BR 20
38 KS 1 RETURN BR/LG 20
39 O2 1/1 SIGNAL DB/LB 20
40 O2 RETURN UPSTREAM BR/DG 20
41 O2 2/1 SIGNAL DB/LG 20
43 EOT SIGNAL VT/BR 20
44 IAT SIGNAL DB/LG 20
45 MAP SIGNAL VT/BR 20
48 O2 1/2 HEATER CONTROL SUPPLY BR/WT 16
49 COIL CONTROL 3 DB/OR 16
50 COIL CONTROL 2 DB/TN 16
51 COIL CONTROL 1 DB/DG 16
53 SRV ACTUATOR CONTROL SIGNAL (6.4L ONLY) DB/LG 18
60 SRV SENSE OUTPUT (6.4L ONLY) DB/YL 18
65 TP SENSOR RETURN BR/DB 20
66 SENSOR GROUND DB/DG 20
67 5 VOLT SUPPLY PK/YL 20
68 SENSOR GROUND BR/WT 20
72 O2 2/1 HEATER CONTROL BR/VT 16
73 COIL CONTROL 4 DB/GY 16
74 COIL CONTROL 5 DB/YL 16
75 COIL CONTROL 6 DB/OR 16
76 COIL CONTROL 7 BR 16
77 COIL CONTROL 8 DB/YL 16
79 INJECTOR CONTROL 5 BR/OR 18
80 INJECTOR CONTROL 6 BR/VT 18
81 INJECTOR CONTROL 7 BR/YL 18
82 INJECTOR CONTROL 8 BR/LB 18
85 CMP SIGNAL DB/GY 20
86 CKP SIGNAL BR/LB 20
87 5 VOLT SUPPLY YL/PK 20
88 CKP GROUND DB/GY 20
89 THROTTLE POSITION 1 SIGNAL BR/OR 20
90 THROTTLE POSITION 2 SIGNAL BR/DG 20
96 O2 2/2 HEATER CONTROL BR/GY 16
