1
12
3
M
N
O
N
M
A
D
16
19
17
90°
BROOKLYN 47” TV STAND | 12

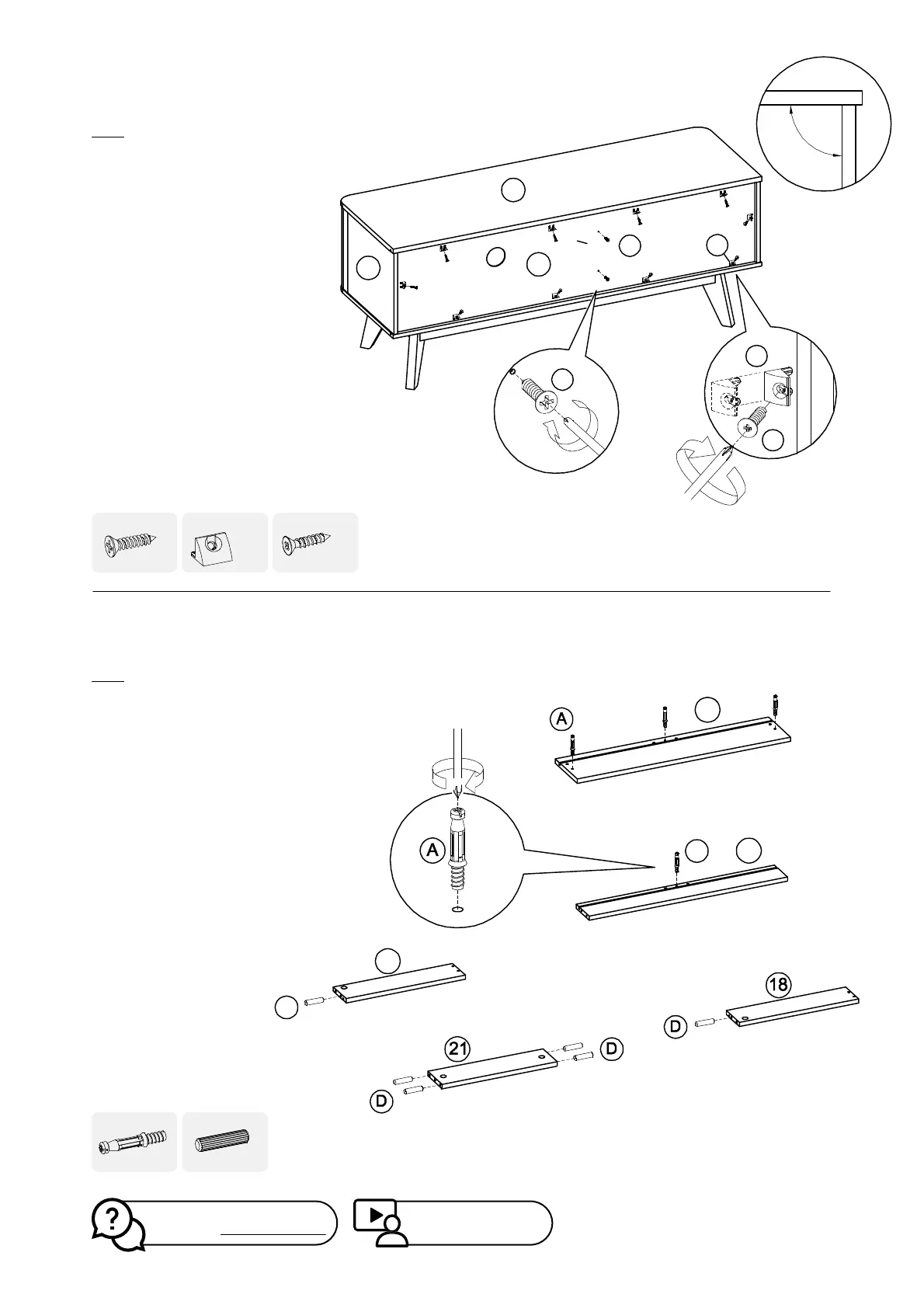

Step 13
Gently adjust Panel (1) sideways in
either direction until the diagonal
measurements of the frame are
equal.
Holding the assembly in place, fix
the Wedge (N) with Screws (O) & (M)
as shown.
Step 14
Screw Cambolt (A) to panel (16) and (19)
(don't over screw).
Plug in Dowel (D) into the center holes on
the each side of panel (17), (18) and (21).
NM
x2
x10
O
x10
D
x6
A
x4
ø 4 x 13 mm
ø 6 x 19 mm
Watch demo video at:
https://bit.ly/39eGJbs
Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
