CREASING/BOOKLETMAKING

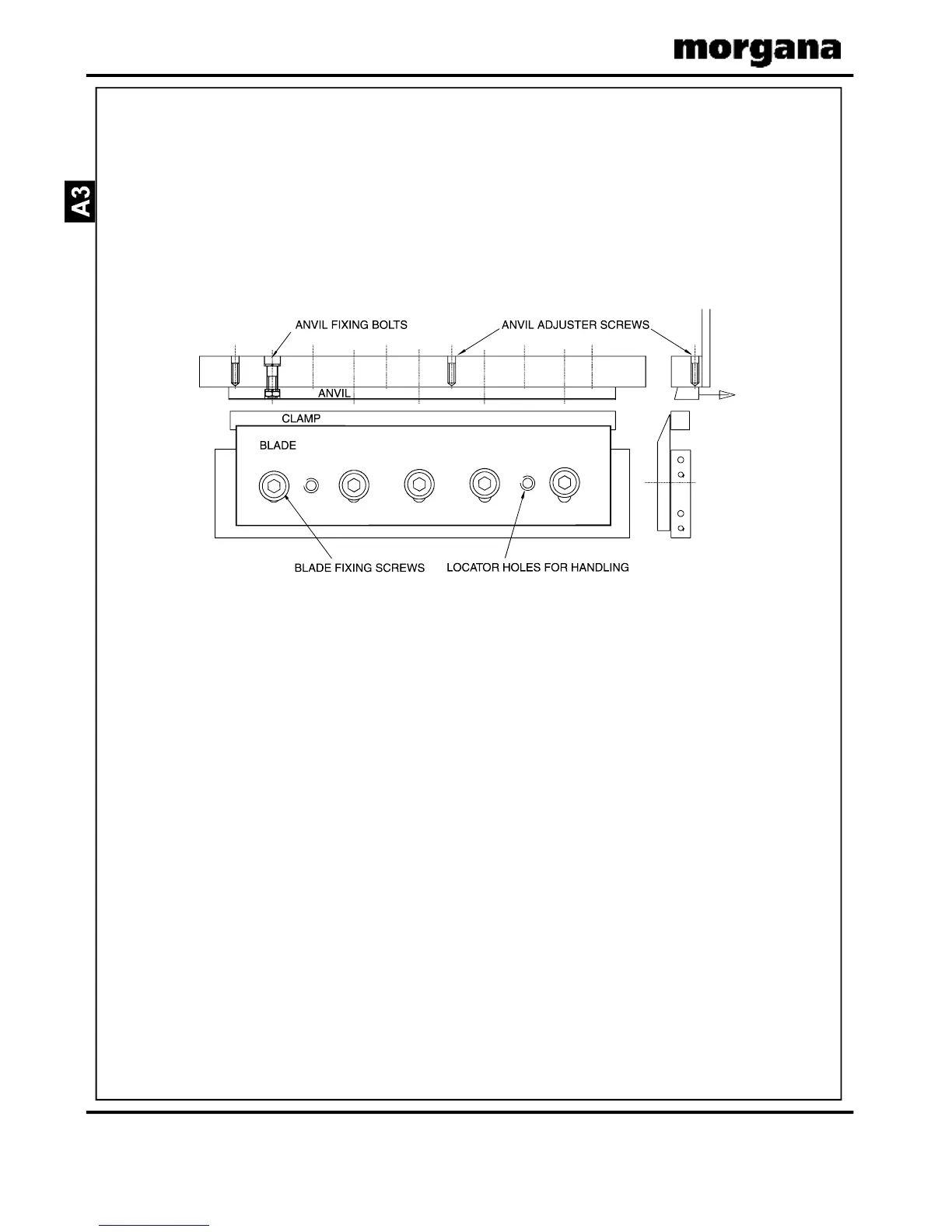

FIGURE40
RemovingtheTMPBlade
Slightlyloosenallfivebladefixingscrews(seeFigure40).
Removetheoutertwoscrewsandscrewthemintothe
locatorholes.Thesewillnowactashandles.Removethe
remainingscrewsandcarefullyliftthebladeaway.
Immediatelyputthebladeawaysafely.
Checktheanvil
Carefullychecktheanvilforanydamage.Ifitrequires
regrinding,removethefivefixingscrewsandliftaway.
RefittingtheTMPbladeandanvil
Slackentheanviladjusterscrewsbacktworevolutions.
Positiontheanvilfullybacktowardstheconveyorand
lightlytightentheanvilfixingscrews.Affixthebladeusing
thefivebladefixingscrewsbutdonottighten.Usingthe
markmadewhenthebladewasremoved,adjustthe
angleoftheblade.Ensurethatitdoesnotprotrudeabove
theclampatpoint'A'orbelowitatpoint'B'(seeFigure
42).Lightlytightenthecentrescrew,sufficienttoholdthe
bladeinthisposition.
