Cleaning turbo nozzle
(pets models only)
If the turbo nozzles rotating brush becomes
entangled with hair it may require taking apart
and cleaning

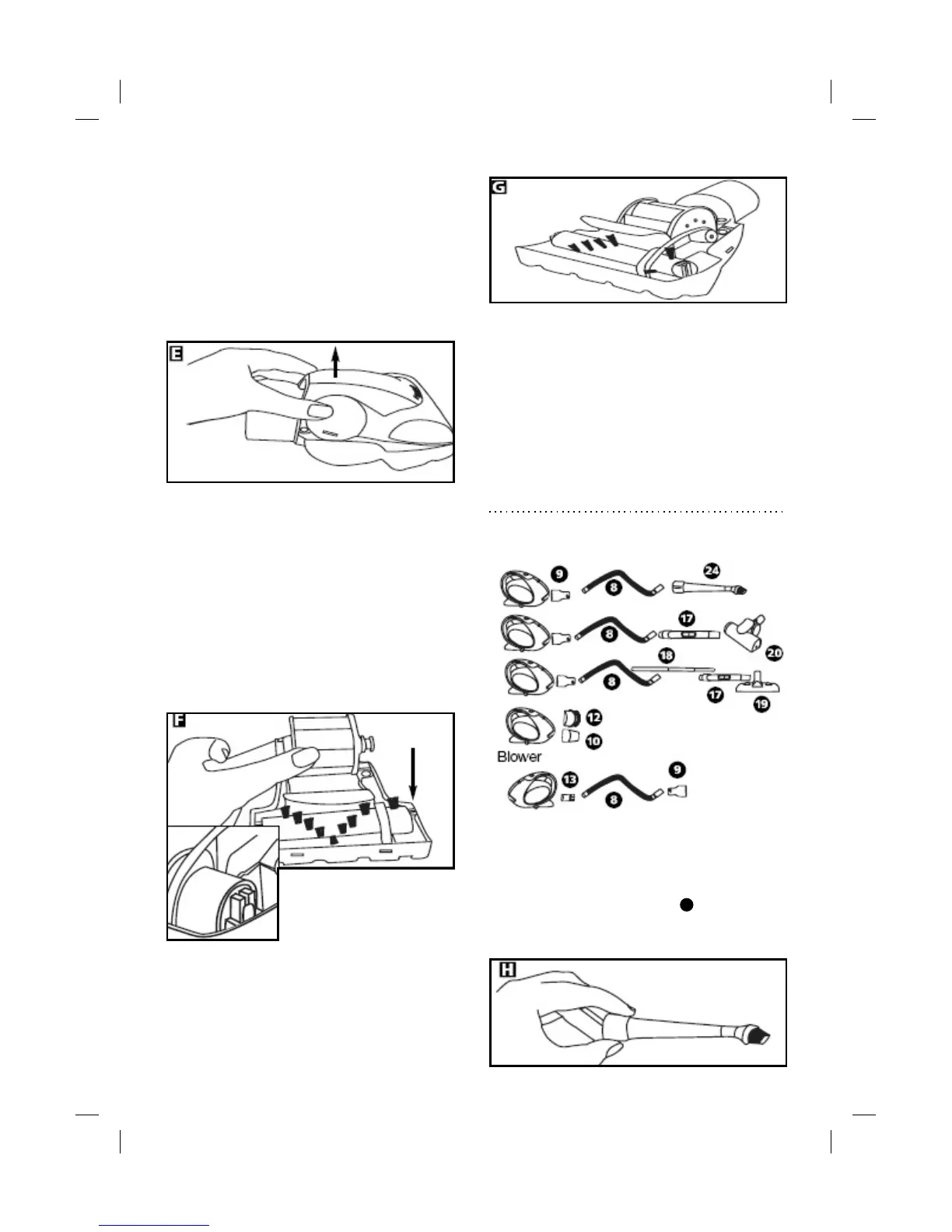

1 Unclip the top half of the nozzle by pulling
the upper casing out slightly & lifting off. E
4 Ensuring that the brush bar, the turbo
wheel and the belt are correctly located
and positioned, take the top casing and
position the slots over the teeth at the front
of the lower casing and clip back into
position.
After re-assembly fit turbo nozzle on unit and
ensure the brush bar is rotating correctly.
Assembling the product
Clear out any blockages /pet hair, remove
Assembling Assembly
all components.and clean if necessary.
Vacuum
2 The main turbo wheel has a removable
collar, this must be re-assembled correctly,
other wise the nozzle will not go back
together.
3 To re-assemble nozzle, take the brush bar
with the toothed belt positioned over the
track on the bar (notice the rectangular
locators on either side of the brush bar). F
Note Make sure the correct end is fixed to the
blower adapter, (smooth end).
Nozzle
Slot the brush bar into the
When using the brush nozzle to get extra
relevant tracks on either
suction place your finger over the hole. This is
side of the lower casing.
only for vacuuming. H
Ensuring that the turbo
wheel is correctly placed, loop the toothed
wheel through the belt and lower the turbo
wheel into the grove, provided in the lower
casing. The internal assembly should be
complete.
24
5
