6

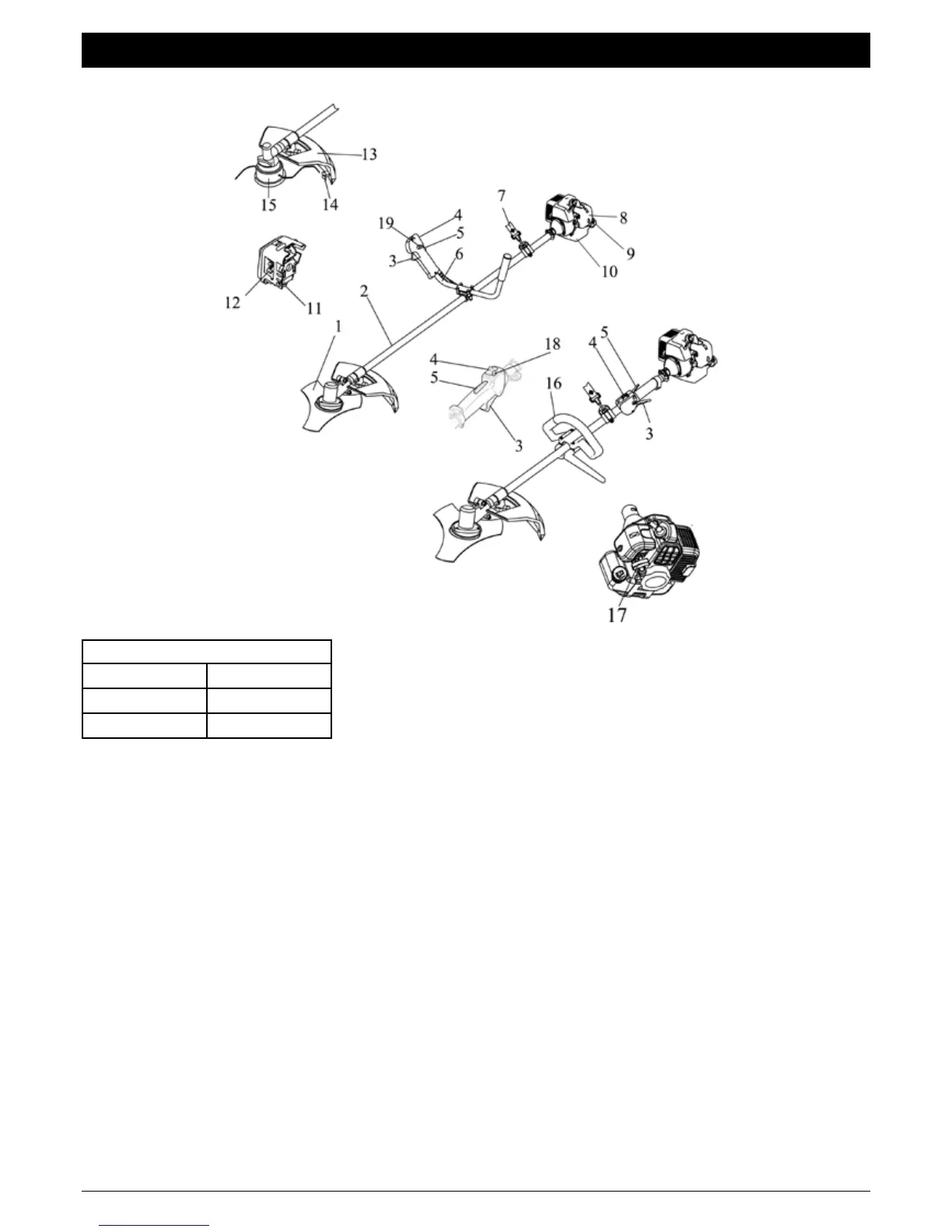

BC430 PARTS LOCATION
Tool List
Tool SPEC.
Socket Spanner 19
Hex Key 4/5
SAFETY MANUAL included with unit.
Read before operating and keep for future reference to learn proper,safe operating techniques.
DESCRIPTION
1. BLADE Circular blade for grass,weed or brush cutting
applications. Harness, plastic shield and U-Handles required
for blade operation
2. DRIVE SHAFT ASSEMBLY Contains a specially designed inner
flexible drive shaft.
3. THROTTLE TRIGGER Spring loaded to return to idle when
released. When acc elerating,press trigger gradually for best
operating technique .Do not hold trigger while starting.
4. IGNITION SWITCH Move switch forward to stop, back to start.
5. THROTTLE LOCKOUT Before acceleration, compress it please.
6. U-HANDLE this handle can be adjust ed at you convenience for
comfort.
7. HARNESS ASS’Y a attachment which hang the machine on
the operator and adjustable in length.
8. AIR CLEANER COVER Contains replaceable felt element.
9. FUEL TANK LID
10. FUEL TANK Contains fuel and fuel filter
11. Priming Bulb Presing the priming bulb pumps(7 to 10 times
before starting), will remove all air and stale fuel from fuel
system and bring fresh fuel to the carburetor
12. CHOKE the choke control is located on the top of the filter
cover. COLD STARTS Pull lever up to close choke for cold
starts.push lever down for RUN position
13. DEBRIS SHIELD Mounted just above the cutting attachment
.Helps protect operator by deflecting debris produced during
the trimming operation .Do not operate unit without shield.
14. CUT-OFF KNIFE Trims nylon filament to the correct length-7”
,head to end of line-when nylon trimming head is bumped
on the ground during the operation of advancing the line.If
trimmer is operated without a cut-off knife the line becomes
too long(more than 7”) the operating speed will slow down the
engine,this will overheat or damage the engine.
15. NYLON CUTTER HEAD Contains replaceable nylon trimming
line that advances when the trimmer head is tapped against
the ground while the head is turning at normal operating speed.
16. HANDLE ASS’Y “D” grip handle can be adjusted at your
convenience for comfort.
17. STARTER HANDLE pull handle until engine starts,then return
handle slowly.DO NOT let handle snap back ,if not,starter will
be damaged
18. Throttle lock
