Replace broken glass immediately.
Do not operate your stove if the glass in the door is damaged.
If you need to replace the glass, it must be replaced with the high temperature ceramic glass
supplied by Morsø, contact your Morsø dealer.
Installing the glass
Never install the glass when the stove is in function.
Ceramic glass replacement
Ceramic glass cannot be recycled because it has a higher melting point that ordinary glass.
If ceramic glass is mixed with ordinary glass, the raw material is spoiled, and the reclaiming
process may be halted. Take care that the ovenproof glass does not end up among ordinary
recycled waste. That will be a great benefit to the environment.
Note: Should be handed in to a recycling station as ceramic glass.

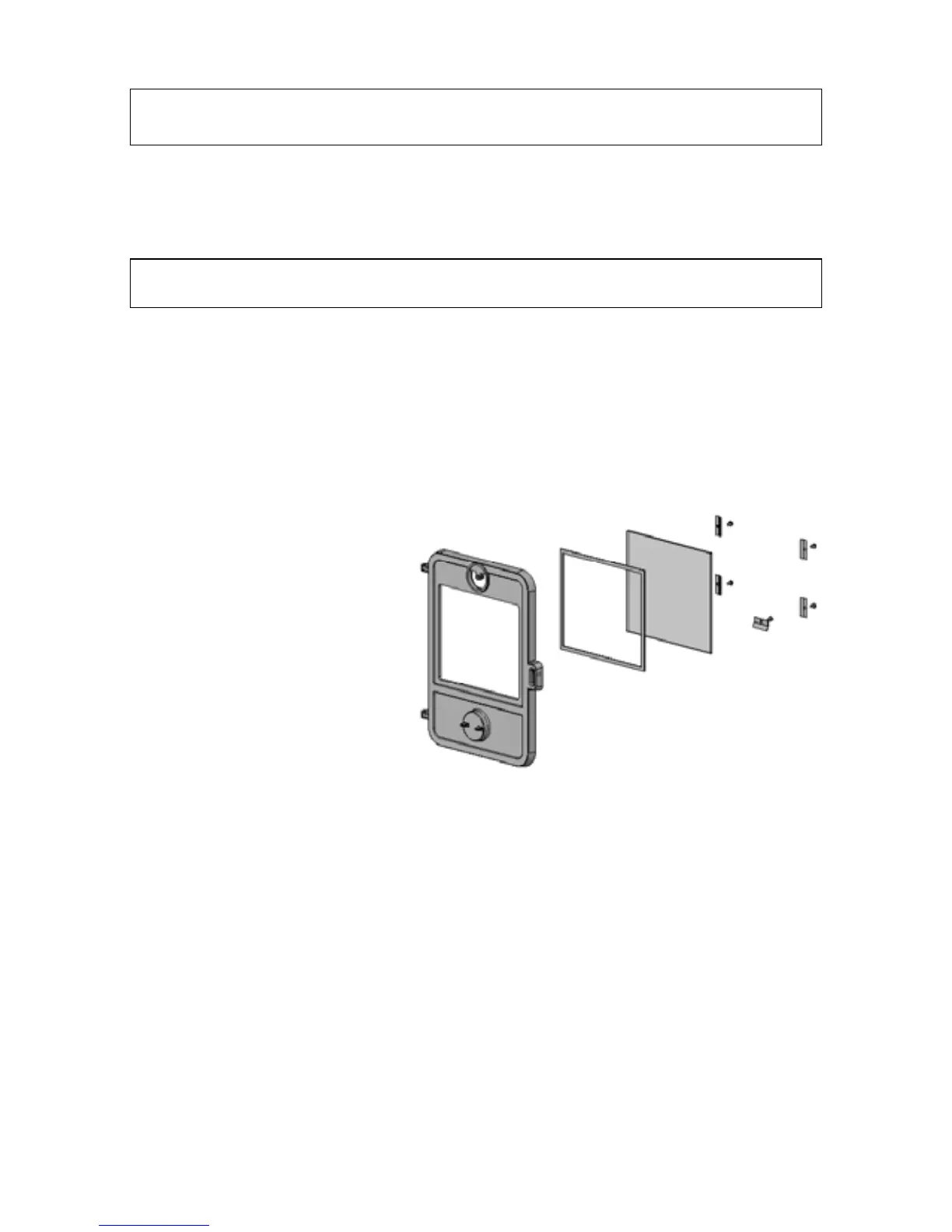

1. Lift the door off its hinges an place
face-down on a sheet of cardboard or
other non-abrasive fabric.
2. Unscrew the five bolts that secure
the glass. (In the event that a bolt
sheers off when being unscrewed,
remove the remaining body of the bolt
by drilling down its center with 1/8 inch
high speed steel drill bit. Smaller drill
bits may be successful, but do not use
a larger bit. Make sure the bit stays
away from the edges of the bolt - this
may damage the thread in the cast
iron).
3. Remove the old ceramic gaskets and clean up the surface underneath with wire wool or
emery paper to remove loose particles.
4. Place the new gasket material in position around the perimeter of the window area, making
sure to pinch them to the length in such a way that they make a continuous seal. Leave no gaps.
5. Place the new glass in position on the strips and screw home the fresh bolts and fitting by
hand.
6. Finally, give each of the bolts an extra half turn or so. The glass should held tight enough that
cleaning will not dislodge it. Do not over-tighten the bolts as this may put excessive pressure
on the glass, resulting in cracking - important!
