Morso 7840 - Connecting the Flue Pipe

6
Sprog
1
2
3
A
A
A-A
Revisions
Rev.
Sign.:
Title:
Drawing no.:
Dim. without indication of margin acc. to DS/ISO 2768-1 m
1:7
Snit til vejledning
Morsø 7900
RSV
14.06.2012
A3
Date of print: 14-06-2012
U:\udv\Tegninger\7900\7900 Assembly.SLDASM
7900-111 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
1.6 Connecting the ue pipe
Lift the upper cast iron top plate o the stove.
Note: the round cast iron cover plate in the top plate must remain mounted if the stove is
being installed with the ue pipe to the rear, but unscrewed from the upper top plate if the
ue pipe is being installed pointing upwards.
Mounting the ue collar pointing upwards
From the factory, the stove is prepared for installation with the included ue collar (1)
pointing upwards with included screws.
Mounting the ue collar to the rear
With a hammer use light, rm taps to
knock out the iron piece on the convec-
tion back panel from the small “bridges”
holding the piece in place.
The cover plate for the smoke outlet is un-
screwed from the back panel and the xed
onto the top panel.
Mount the ue collar onto the back panel
Lift the top panel back into place and the
round section which is provided can be
placed in the top panel and cover for the
blocked o smoke outlet.

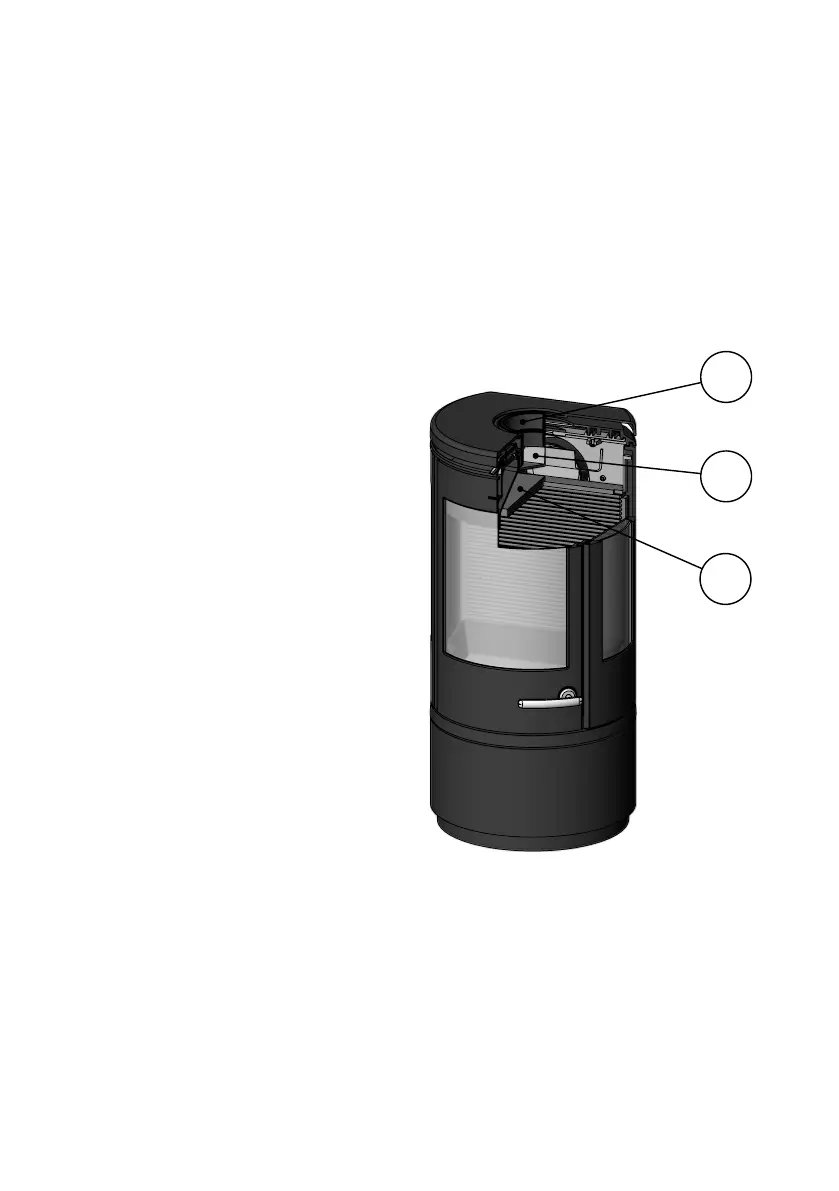

The location of the bae and cast smo-
ke hood
The rear brick and the bae (3), which are
made from vermiculite, are mounted at
the factory.
The bae is lifted from its position and
taken out of the stove. The casted smoke
hood (2) is delivered loose in the stove
and must be attached after installation of
the stove.
The smoke hood is lifted and turned
clockwise into place so it is locked in the
two bolts at the upper ueoutlet
Make sure that the bae and rear brick
stone are correctly assembled be-
fore lighting the stove (please see the
sketch.)
Optional fresh air connection
The stove is factory prepared for installation of an optional fresh air connection inde-
pendent of the room in which the stove is installed. The box for this fresh air connection,
which can be purchased separately, enables a ø100mm pipe to be connected either to the
rear or below.
However, this does not apply to the Morsø 7848/7948 pedestal stove and wall-hung Mor-
sø 7870/7970.
Morsø 7940
