Morton MSD45E - TYPICAL INSTALLATION ILLUSTRATIONS

8
Mortonr Water Softener Installation & Operation Manual

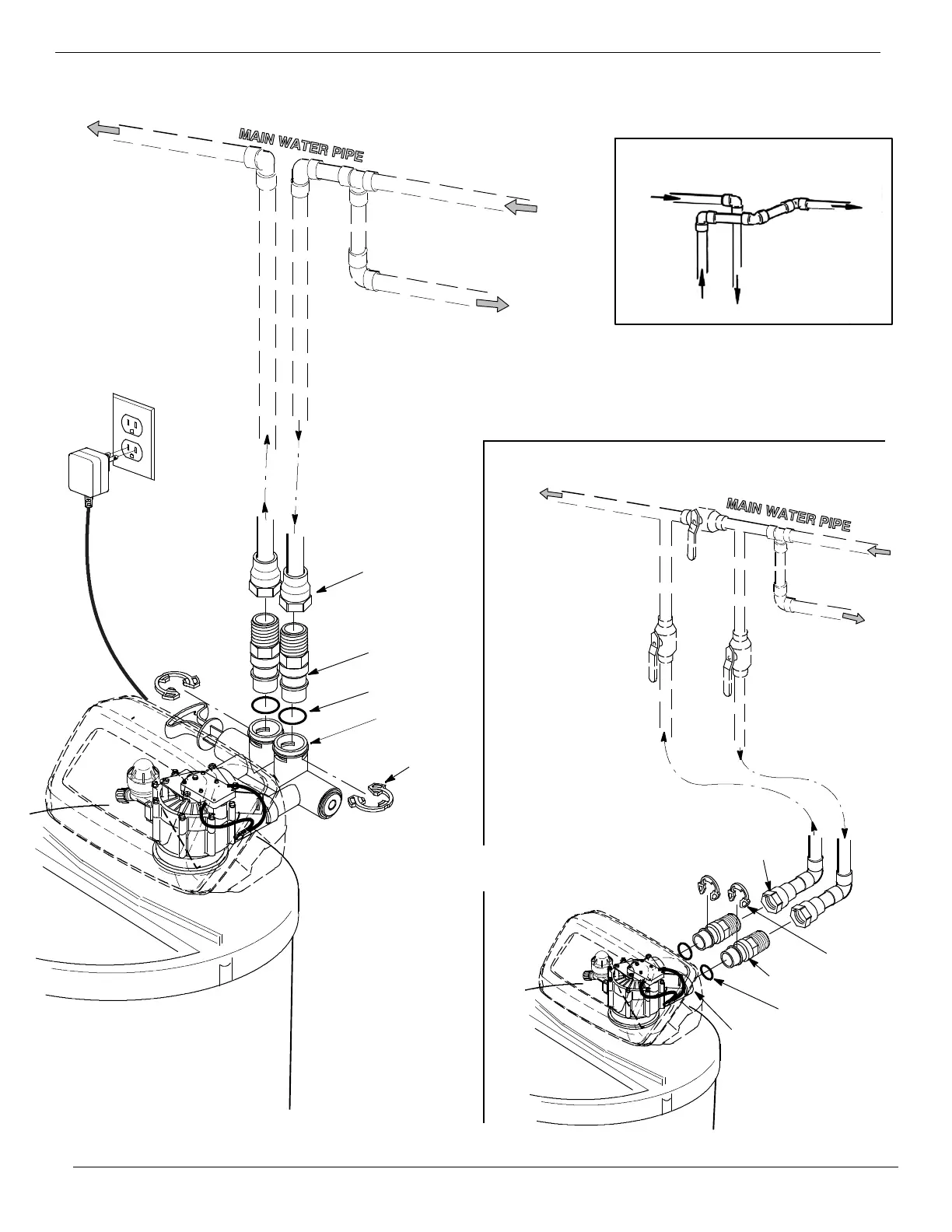

TYPICAL SOLDERED COPPER or CPVC INSTALLATIONS
VALVE
INLET
o--ring seal (2) *
clip (2) *
hard water to
outside faucets
hard water
soft water
* included with softener -- Pipe and
fittings supplied by installer.
INSTALLATION USING 3 -- VALVE BYPASS
SOFT
WATER
HARD
WATER
TO SOFTENER
INLET
FROM
SOFTENER
OUTLET
CROSS -- OVER
Use if water supply flows from the left.
Include single or 3 -- valve bypass.
INLET valve
OUTLET
valve
BYPASS
valve
D for soft water SERVICE:
-- O p e n the inlet and outlet
valves.
-- C l o s e the bypass valve.
D for hard water BYPASS:
-- C l o s e the inlet and outlet
valves.
-- O p e n the bypass valve.
1” NPT installa-
tion adaptor (2) *
1” NPT installa-
tion adaptor (2) *
1” NPT sweat
adaptor (2)
not included
o--ring seal (2) *
clip (4) *
Bypass Valve *
1” NPT sweat
adaptor (2)
not included
120V AC
outlet
