Mosa EAS 15-806 User Manual

EAS15-806-GB.doc
EAS 15 - 806
REV.1-07/11
2 – POWER ON OF THE EAS ELECTRICAL PANEL, USE AND DESCRIPTION
2.1- General information of electrical panel
This product permit to control all the functions about a generator
• Engine command and protection module for diesel or gasoline generators
• Measurement system for main electric values
• Automatic control module for two different supply sources (Automatic Mains Failure)
• Automatic changeover switch from two different supply sources (Automatic Transfer Switch)
It’s built to monitor single-phase or three-phase with neutral systems in alternate current; it permit to transfer the user’s load on generator when the
mains voltage is faulty.

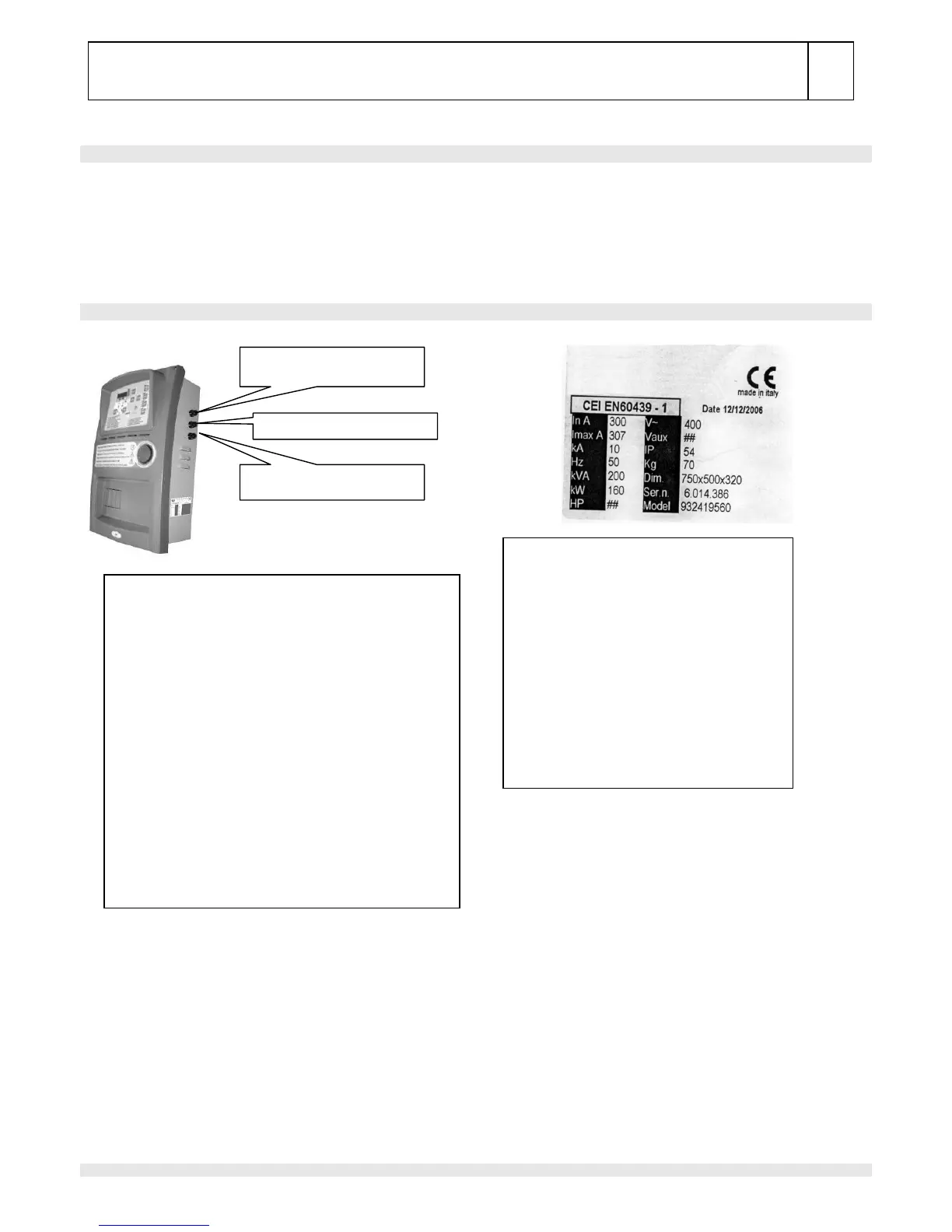

2.2- Technical features
Description of the data shown on the
label plate
In = nominal current
Imax = maximum rated current
KA = maximum breaking current against short circuit
Hz = frequency
KVA = apparent power (calculated at cos φ 0,8)
KW = active power
HP = horse power
V~ = maximum use voltage of the primaries
Vaux = maximum voltage of the auxiliary circuits
IP = degree of protection against external agents
Kg = approximate weight
Dim = dimensions Height x Width x Depth
Ser.n = serial number
Model = product code
F1 = F4A Protection for the auxiliary
battery circuits 12Vdc
F2 = F2A Protection mains contactor
F3 = F2A Protection generator
contactor generator
TECHNICAL FEATURES
Current of the telerupters @ 40°C........ ... ............................. 25A
Power (AC1) 400 Vac three-phase ..................................... 17kVA
Power (AC3) 400 Vac three-phase .................................... 7.7kVA
Power (AC1) 230 Vac three-phase ..................................... 10kVA
Power (AC1) 230 Vac single-phase ................................... 9.5kVA
Frequency range ............................................................ 45 ÷65Hz
Battery charger ....................................................... 12Vdc-900mA
Dimensions h x l x p ........................................... 450x285x160 mm
Weight ..................................................................................10 Kg
Degree of protection of switchboard ....................................... IP20
Operating temperature ................................................ -20 ÷ +50°C
Maximum rated humidity ....................................................... <90%
TECHNICAL FEATURES OF THE BOARD/PCB TE806
Nominal voltage battery ....................................................... 12Vdc
Maximum rated current ....................................................... 250mA
Maximum rated power ............................................................. 3W
Operating range ........................................................... 10 ÷17VDC
Accuracy of measurements ................................... ÷ 1% - ± 1 digit
Degree of protection front board ............................................ IP65
Storage temperature ................................................... -30 ÷ +70°C
