Motion Composites Helio C2 User Manual

70257-a.10-HELIO C2 USER MANUAL
7
User
Manual
6. Technical Specifications
6.1 Structure
Frame Folding with carbon fiber C3 cross
brace
Material Aerospace grade carbon fiber
composites
Weight 12 lbs (5.3 kg)
(w/o rear wheels & footrest)
Weight capacity Helio C2: 250 lbs (113 kg)
Helio C2 HD: 350 lbs (159 kg)
6.2 Dimensions
Width 14” (35.5 cm) to 20” (50.8 cm)
Crossbrace CMC 3D (Helio C2)
18” (45.7 cm) to 22” (55.9 cm)
Crossbrace CR350 (Helio C2 HD)
Depth 14’’ (35.5 cm) to 20’’ (50.8 cm)
Front seat-to-floor height 13’’ (33.0 cm) to 21¼’’ (53.9 cm)
Rear seat-to-floor height 12 ½’’ (31.7 cm) to 20’’ (50.8 cm)
6.3 Adjustability
Upholstery Tension adjustable or bolt on
Back height 9” (22.8 cm) to 21” (53.3 cm)
Adjustable angle from 70° to 110°
Footrest Swing in / Swing out
Camber 0°, 3°, 6°
Centre of gravity from ½” (1.2 cm) to 4½” (10.1 cm)
+ amputee axle plate option

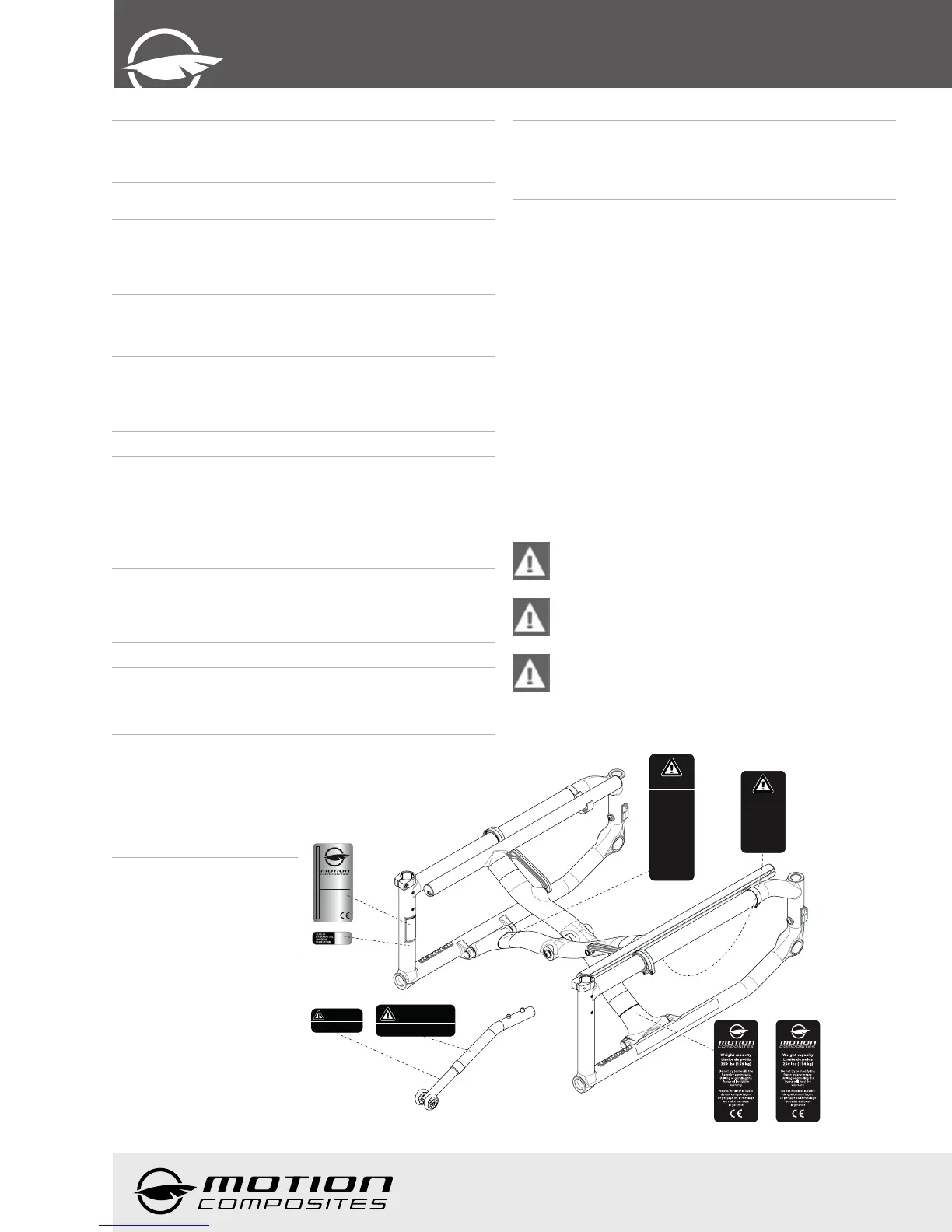

6.4 Label Locations
Do not remove or alter any
labels (Fig 1) on the wheelchair.
If the label is damaged,
replace it with a new one.
Fig. 1
7. Safety
7.1 Periodic Checklist
See related appendix (section 13).
7.2 Weight Limitation
The HELIO C2 wheelchair has a weight limit of 250 lbs and the
HELIO C2 HD is 350 lbs with the HD kit. The specified weight
capacity includes: both the rider and any luggage. A user with
a 10 lbs backpack, for example, should not exceed a weight
of 250 lbs (113 kg) or 350 lbs (159 kg) with the HD kit. It is of
utmost importance that the total weight be below the above
specified capacity.
The wheelchair is designed to support only one person. Please
do not stand up on the footrests.
Motion Composites is not responsible for any damages or
injuries caused by the misuse of this wheelchair.
7.3 Weight Training and Sporting Activities
This wheelchair was not designed or tested as a weight training
or stretching apparatus. Do not attempt to use this wheelchair
for weight training or stretching exercises. The warranty shall
be void if the wheelchair has been used for any weight training
or stretching purposes.
This wheelchair is not intended to be used during sporting
activities.
Should you make any adjustments, repairs or do any
servicing, ensure that all fasteners are tightly secured
before use.
Exceeding the specified weight limit could damage the
wheelchair and/or cause severe injuries.
This wheelchair was designed to be tailored to the
dimensions of its owner and as such should only be
used by its owner unless a qualified specialist,
approved by Motion Composites, has readjusted it.
19565
N° série / Serial no.
519 J-Oswald Forest
Saint-Roch-de-l'Achigan
Québec J0K 3H0
CANADA
2015
WARNING
AVERTISSEMENT
WARNING
AVERTISSEMENT
Do not operate with-out the anti-tipper tubes installed
Ne pas utiliser sans les tubes anti-basculants
Refer to manual for proper anti-tipper setting
Référez-vous au manuel pour un réglage adéquat
STABILITY
Various adjustments like
seat height/depth, back
angle, camber/size/position
of the wheels and position
of the front riggings could
aect the stability of the
Wheelchair. All adjustments
should be done by an
experienced technician.
STABILITÉ
Les réglages de la hauteur et
profondeur du siège, l’angle
du dossier, inclinaison/-
taille/position des roues et
des accessoires avant
peuvent aecter la stabilité
du fauteuil roulant. Tout
réglage doit-être exécuté
par un technicien qualié.
WARNING
AVERTISSEMENT
Weight capacity Sticker
Autocollant de capacité de poids
QUICK RELEASE
Quick-release axles are
pre-adjusted in the factory. Do
not attempt adjust the axle.
ESSIEU À DÉGAGEMENT
RAPIDE
Les essieux à dégagement
rapide sont préréglés à l’usine.
Ne tentez pas de régler l’axe.
WARNING
AVERTISSEMENT
Quick release
Essieux à
dégagement rapide
51189
Stability
Stabilité
51192
Anti-tipper, ext.
Anti-basculant, ext.
51191
Anti-tipper
Anti-basculant
51190
Year of manufacture
Année de fabrication
51188
ID plate
Plaque d’identification
51036
51016 51015
