90-MM6900 9

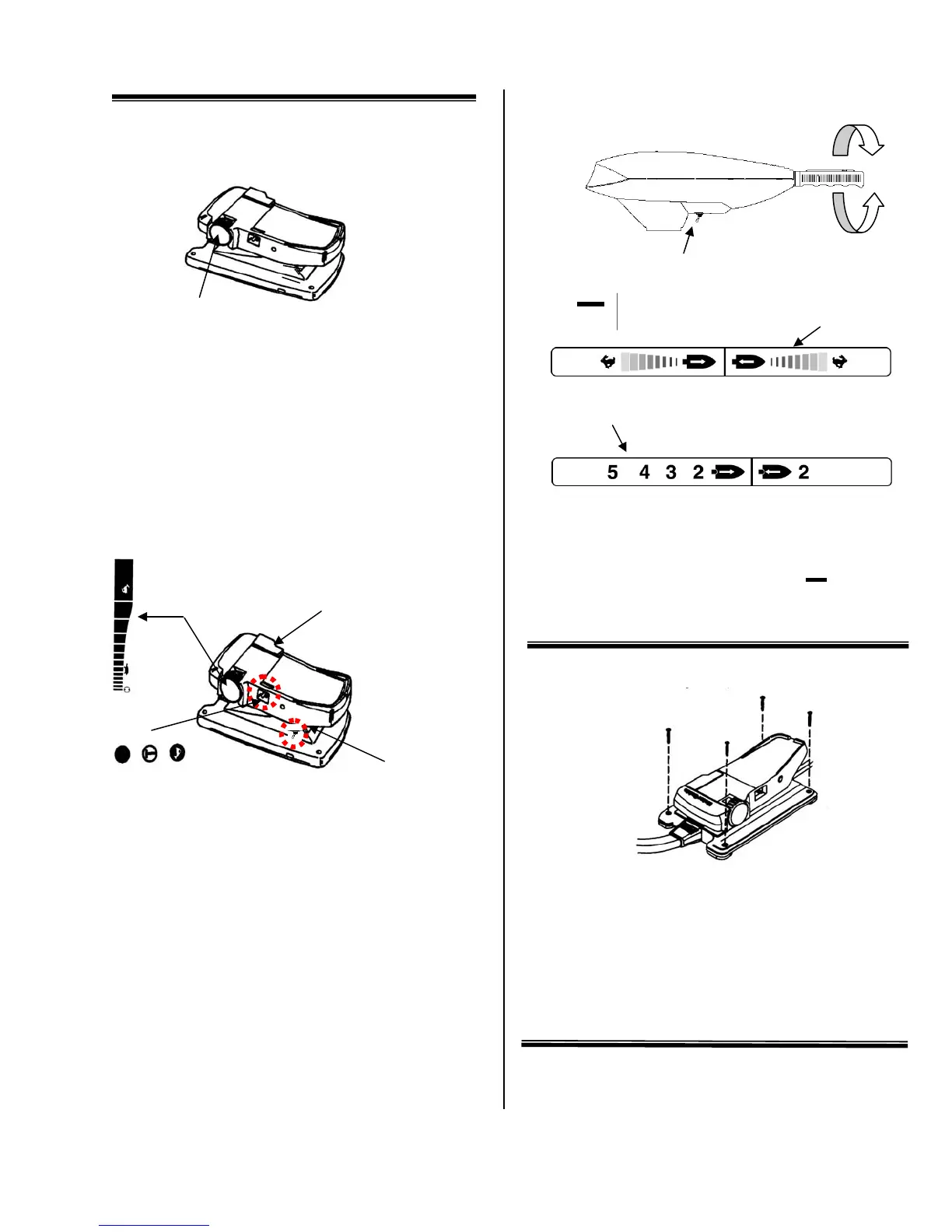

Speed Control
Five-Speed and Variable Speed Motors
Foot operated motors are either five-speed or variable
speed models. Control the speed of your motor by rolling
the speed control knob with your hand or foot until you
reach the desired speed.
9 Five-Speed Motor - The speed control knob on a
five-speed motor is numbered 1 through 5 and allows
you to select one of five preset speeds.
9 Variable Speed Motor - The speed control knob on a
variable speed motor allows you the capability of
variable speed selections from off to high.
Constant / Momentary / High-Bypass
Momentary Switch – The Momentary Switch is located
on the top right side of the foot pedal. The Momentary
Switch works in conjunction with the Three-Position Switch
when it is in positions B and C.
Three-Position Switch - This three-position switch
provides you with three options for operating the motor:
constant on, momentary, and high-bypass.
A) Constant On - This allows the motor to run
continuously at the speed selected by the Speed
Control Knob without the use of the Momentary
switch.
B) Momentary - This allows the motor to activate with
the Momentary switch at the speed selected by the
Speed Control Knob.
C) High-Bypass - This will automatically deliver full
thrust
when the Momentary switch is activated.
On / Off Toggle Switch – Power on and off switch.
Available on variable speed motors only.
Twist Tiller Speed Control
Twist Tiller Handle - Rotate handle clockwise for forward
speeds and counterclockwise for reverse speeds.
Toggle Switch – Flip the Toggle switch to “ “ to turn
the motor on and ”
{” to turn the motor off. This switch is
available on variable speed motors only.
Permanent Foot Pedal Mounting
1) Place the foot pedal in the desired location on the
boat deck.
2) Using a (3 mm) 7/64 inch drill bit, drill holes through
the holes in the foot pedal base and into the boat
deck.
3) Use four #8 x 2 inch stainless screws and screw the
foot pedal base securely to the boat deck.
S
eed Control Knob
Momentary Switch
On/Off Toggle
Switch
Speed
Control Knob
Three
Position
Switch
A B C
Variable
Speed Twist
Tiller Decal
On /Off Toggle Switch &
Decal (
Variable Speed Only)
{
On Off
Forward Reverse
Five-speed Twist
Tiller Decal
Forward Reverse
