Code Description
SLD400LED 24 Vdc gear motor with mechanical limit switches with automatic night lights, gate maximum weight 400 kg
SLD400 24 Vdc gear motor with mechanical limit switches, gate maximum weight 400 kg
SLD700LED 24 Vdc gear motor with mechanical limit switches with automatic night lights, gate maximum weight 700 Kg
SLD700 24 Vdc gear motor with mechanical limit switches, gate maximum weight 700 Kg
The gear motor SLIDER is intended to be installed within systems
for the automation of sliding gates. The SLIDER gear motors have
been designed to automate sliding gates within the weight limits
The CC24 control unit is a modular system for the control of Mo-
torisation Plus motors for the electric opening and closure of swing
and sliding gates, barriers and garage doors.
indicated in the technical specications table.
The use of gear motors for applications which dier from those
indicated above is prohibited.
The CC24 menu structure allows easy setting of working times
and operating modes. All other, improper, use of the control unit
is forbidden.
TECHNICAL DATA
MODELS SLD400LED SLD400 SLD700LED SLD700
Speed cm/s 21 21 25 25
Torque Nm 12 12 26 26
Working cycle % 50 50 80 80
Control unit CC24FULL CC24FULL CC24FULL CC24FULL
Power supply Vac (Vdc) 230 (24) 230 (24) 230 (24) 230 (24)
Absorption A 1,1 1,1 1,5 1,5
Engine power W 250 250 345 345
Capacitor µF - - - -
Thermoprotection °C - - - -
Integrated lights yes no yes no
Degree of protection IP 44 44 44 44
Dimensions (L-P-H) mm 330 - 210 - 300 330 - 210 - 300 330 - 210 - 300 330 - 210 - 300
Weight Kg 12 12 12,5 12,5
Operating temperat. °C -20+55 -20+55 -20+55 -20+55
Leaves max weight Kg 400 400 700 700
Sound emission level dB(A) ≤ 70 ≤ 70 ≤ 70 ≤ 70
2 - INTRODUCING THE PRODUCT
2.1 - Description of the product
2.2 - Model and technical characteristics of the motor
2.3 - Description of the control unit

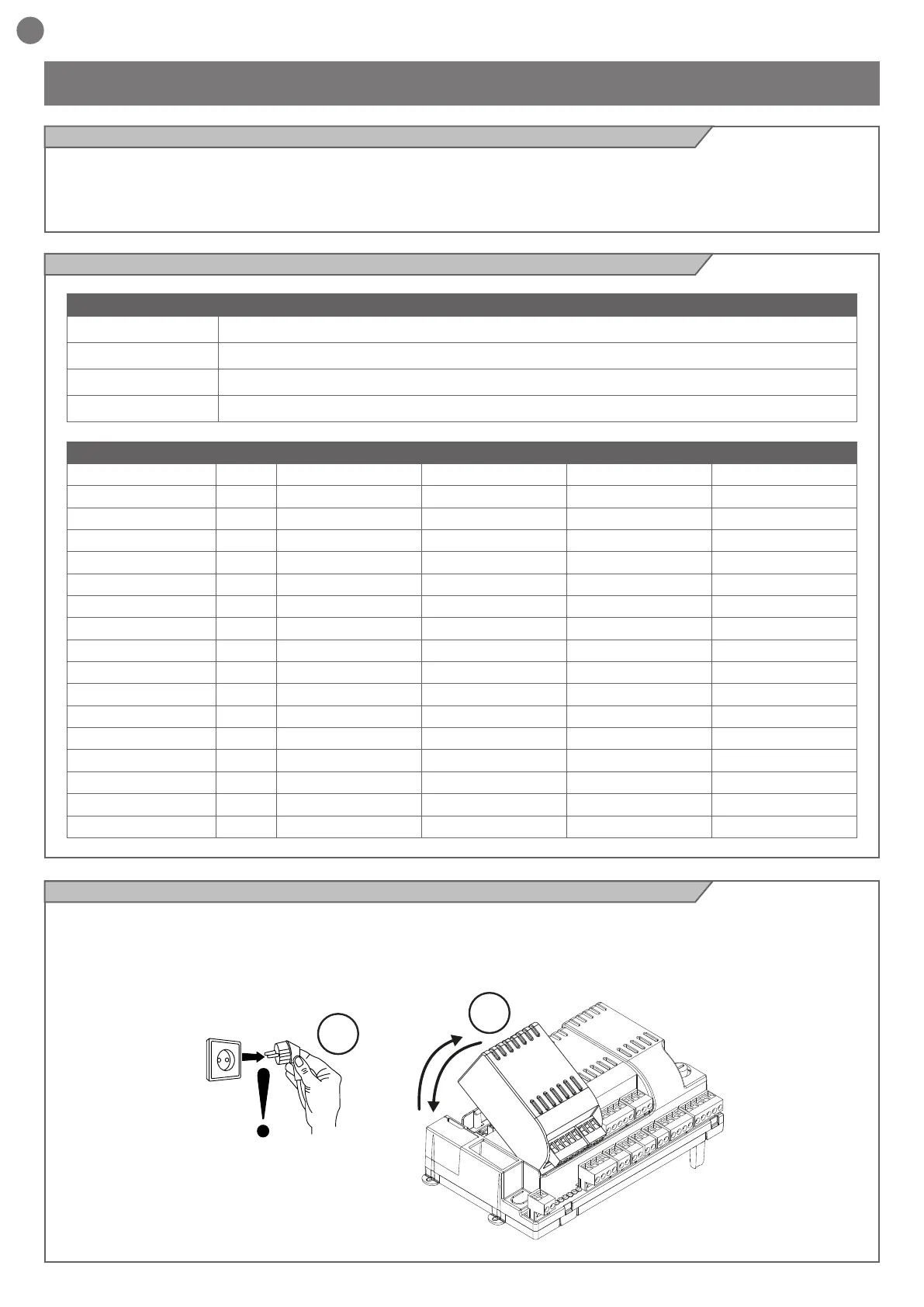

WARNING:
the power module must
always be connected/
disconnected with the
control unit not powered
up!
