When all of your connections are made, the status LEDs on the front of your Motorola IAD
Gateway will light, according to the following diagram:
LED Behavior
Power
Green
when power is on.
Red
if device malfunctions; flashes
red
when updat-
ing embedded software.
Ethernet
1, 2, 3, 4
Solid
green
when connected. Flash
green
when there is activity on the LAN.
Wireless
Flashes
green
when there is activity on the wireless LAN.

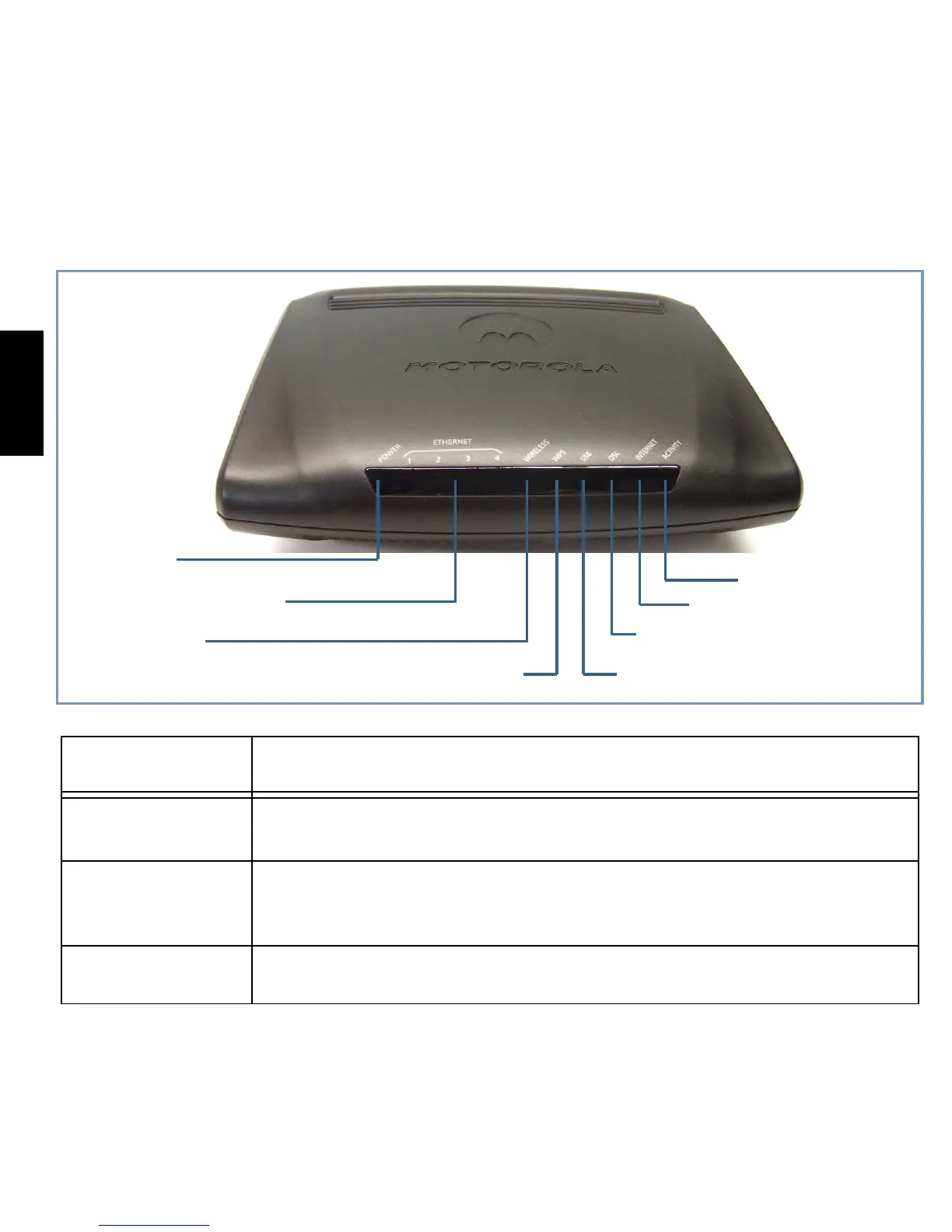

Power
Ethernet 1, 2, 3, 4
Front View
Wireless
Internet
DSL
WPS
USB
Activity
