Introduction
3
The Access Point contains runtime firmware which enables the unit to boot after either a power up
or a watchdog reset. The runtime firmware on the Access Point can be updated via the Ethernet
interface.
The front of the AP-6511 has an access cover that can be removed to expose an additional connector.

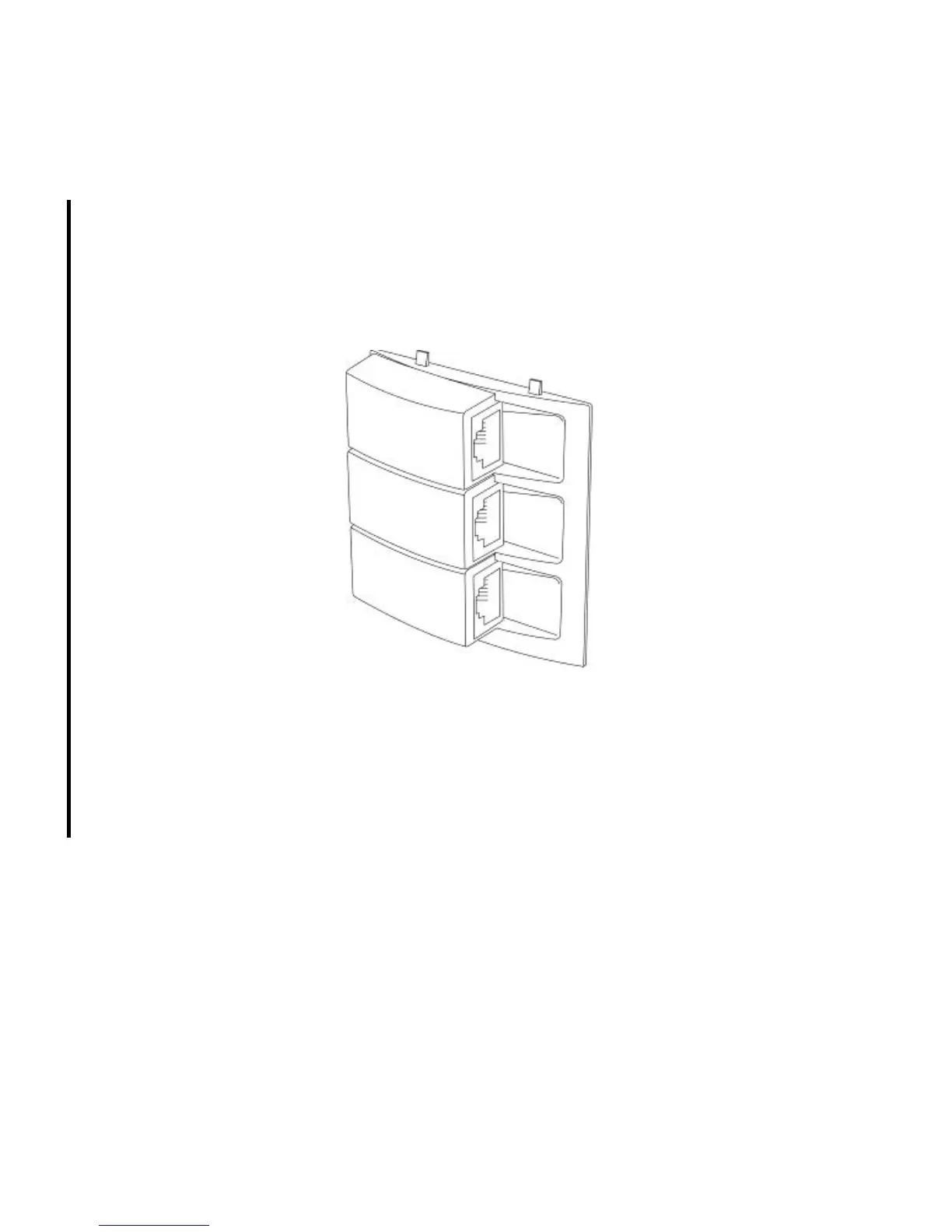

A three port RJ-45 Ethernet expansion module connects to the hidden header and snaps onto the
AP-6511 in place of the access cover.
Remove the AP-6511’s access cover by using a sharp tool to depress the latch on the bottom of the
access point. Pull the access cover up and away from the AP-6511. Reverse the procedure to install
the expansion module.
The Ethernet expansion module has three ports labeled FE2, FE3 and FE4.
The expansion module (KT-6511-0000D-WR) is a separately orderable component from Motorola.
