Motorola AP 7161 User Manual

20 AP 7161 Access Point
1.11 LED Indicators

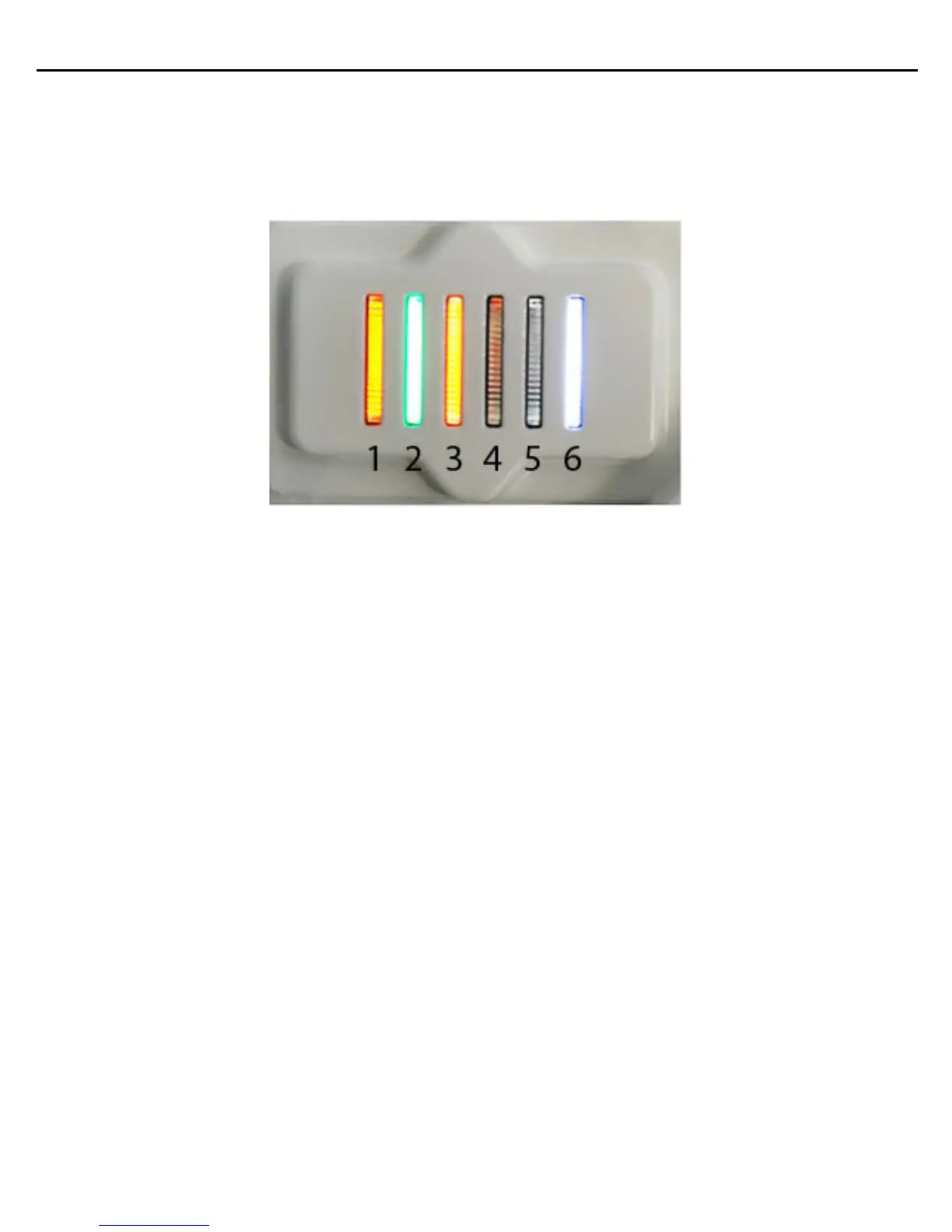

The AP 7161 Access Point has six LEDs on the top of the Access Point housing. When the Access Point is
positioned with the Motorola Solutions logo in the lower right corner, LED 1 is on the left and LED 6 is on the right.
The Access Point utilizes two different colored lights below each LED. Only one light displays within an LED at any
given time. Every light within each LED is exercised during startup to allow the user to see if an LED is not
functioning. The LEDs turn on and off while rotating in a circular pattern. Since two LEDs feed each light pipe, the
pattern is from left to right (LEDs 1 through 6), then right to left (LEDs 6 through 1).

Motorola AP 7161 Specifications

General

Model	AP 7161
Type	Wireless Access Point
Frequency Bands	2.4 GHz and 5 GHz
Wireless Standards	802.11a/b/g/n
Maximum Data Rate	Up to 300 Mbps
MIMO Technology	2x2 MIMO
Humidity	5% to 95% non-condensing
PoE	Yes
Power over Ethernet	802.3af
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Antenna	Internal
Security Features	WPA, WPA2, 802.1X
