Status Icons
IDENTIFYING STATUS INDICATORS
The liquid crystal display (LCD) of your radio shows the radio
status, text entries, and menu entries.

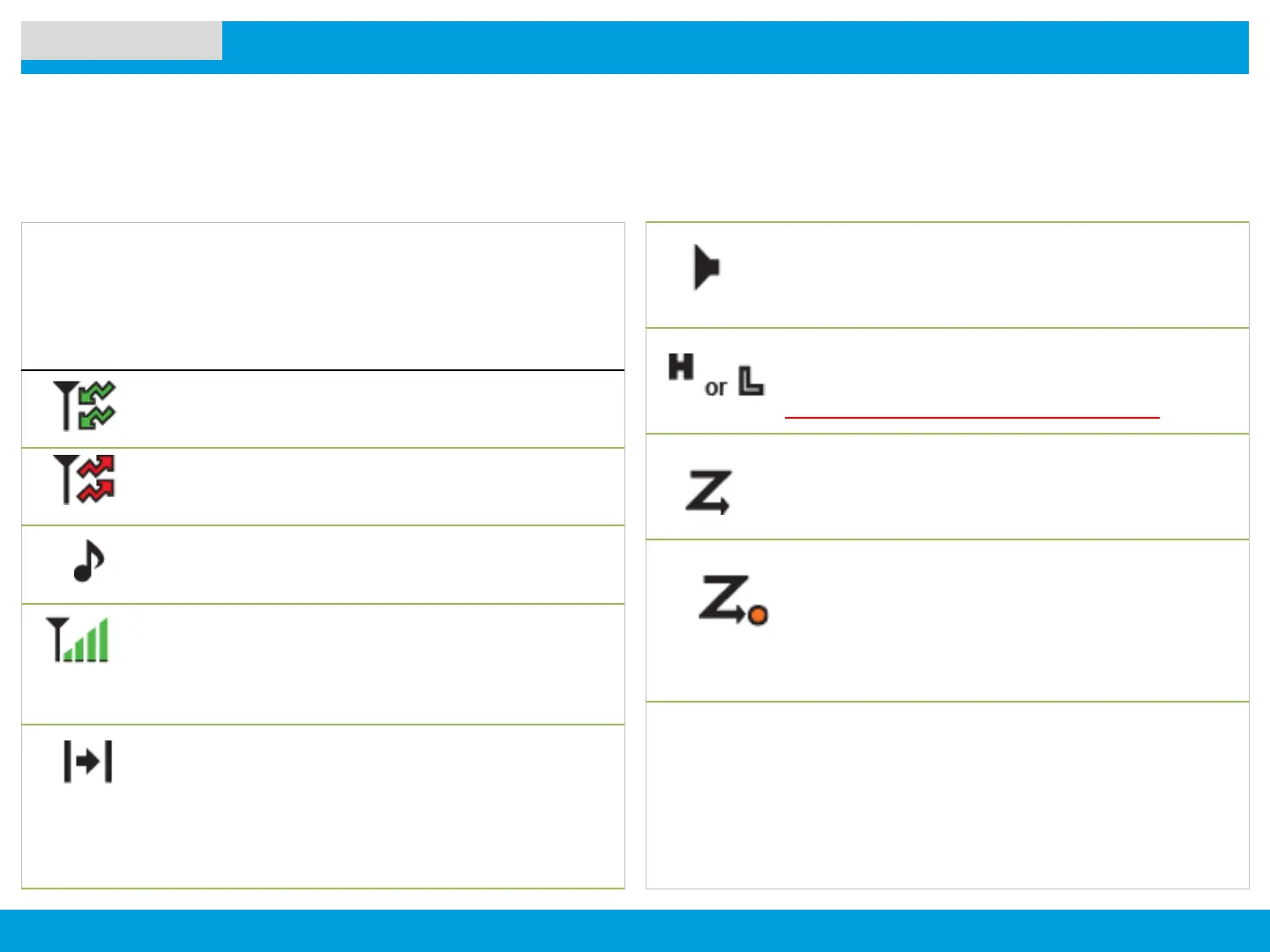

The following are the icons that appear on the radio’s display.
Receiving
Radio is receiving a call or data.
Transmitting
Radio is transmitting a call or data.
Call Received
Radio has received an Individual Call.
Received Signal Strength Indicator (RSSI)
The number of bars displayed represents the received
signal strength for the current site, for trunking only. The
more stripes in the icon, the stronger the signal.
Direct
• On = Radio is currently configured for direct
radio to radio communication (during
conventional operation only).
• Off = Radio is connected with other radios
through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored (during conventional
operation only).
Power Level
• L = Radio is set at Low power.
• H = Radio is set at High power.
ALL MOBILES ARE SET TO LOW POWER (L)
Scan
Radio is scanning a scan list.
Priority-One Channel Scan
• Blinking dot = Radio detects activity on
channel designated as
Priority-One.
• Steady dot = Radio detects activity on channel
designated as Priority-Two.
