DTA100 Quick Start Guide
Connecting Your Device

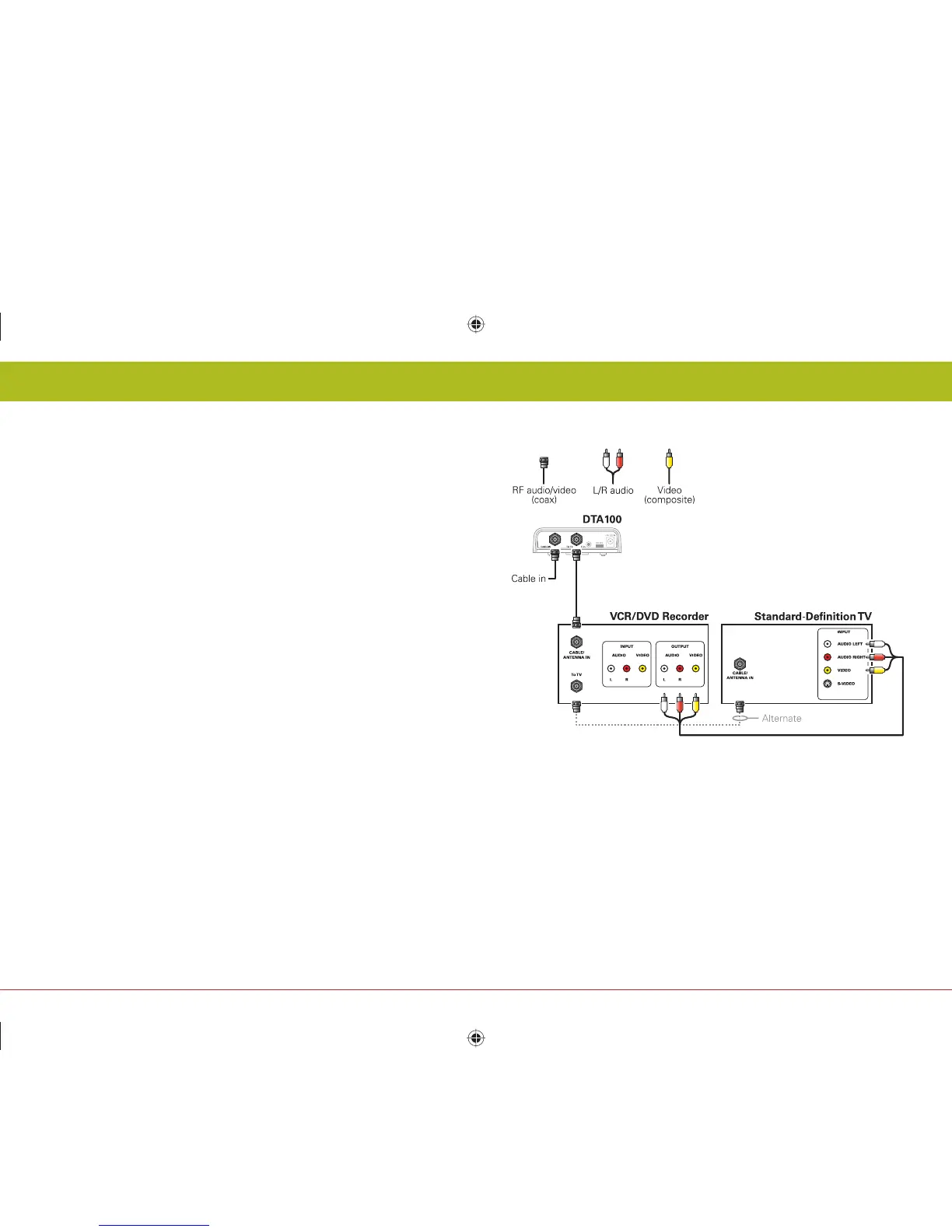

Connecting an SDTV and VCR/DVD Recorder
Connect a coaxial cable from the cable wall outlet to the 1. Cable IN
connector on the DTA100.
Connect a coaxial cable to the 2. To TV connector on the DTA100 and the
Cable / Antenna IN on the VCR/DVD Recorder.
Connect a composite video cable from the 3. Video Out connector on the VCR/
DVD Recorder to the Video In connector on the TV and a stereo audio cable
from the Audio L / R Out connectors on the VCR/DVD Recorder to the Audio
Left In and Audio Right In connector on the TV.
or
Connect a coaxial cable to the To TV connector on the VCR/DVD Recorder to
the Cable / Antenna IN connector on the TV.
