Motorola DTA100 User Manual

5
DTA100 Quick Start Guide
Connecting Your Device

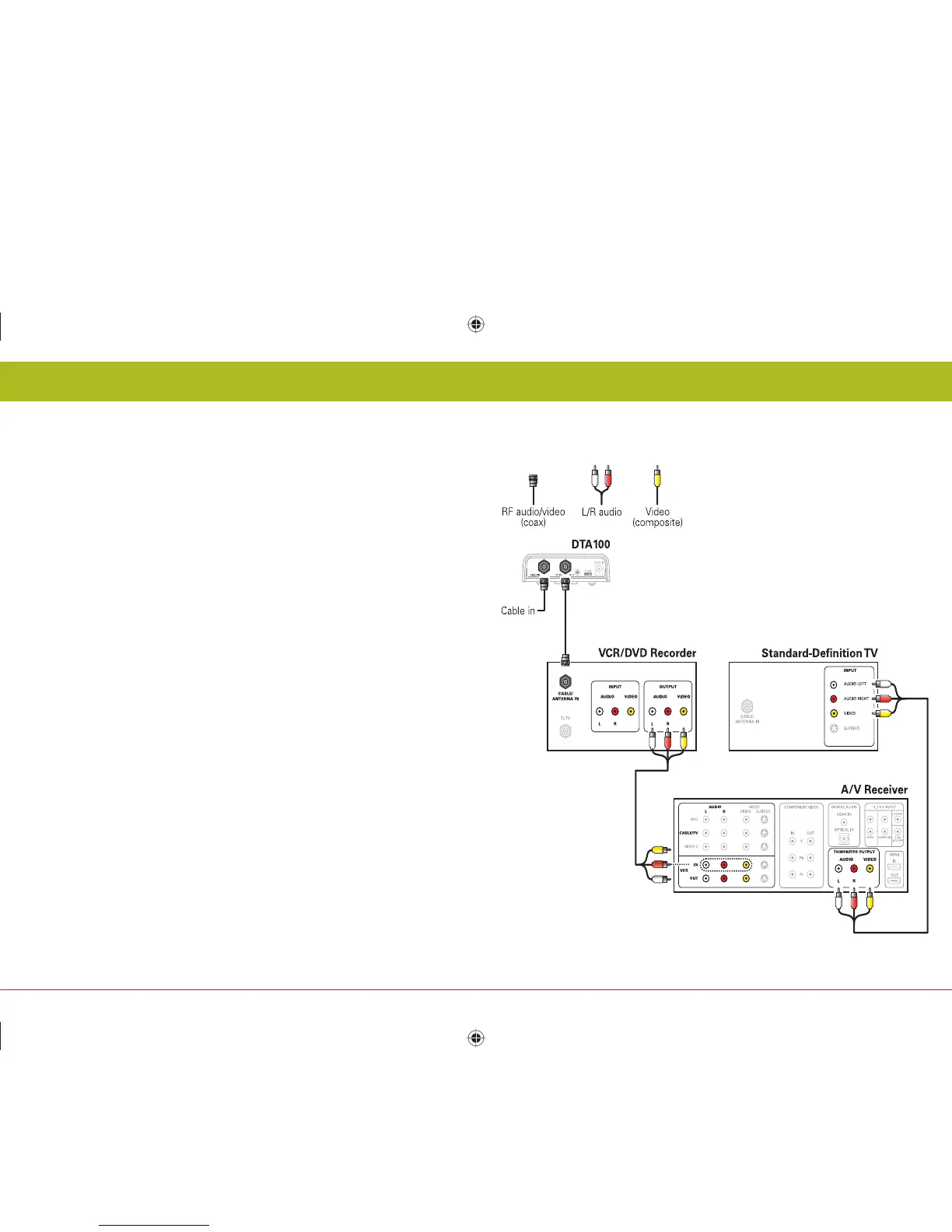

Connecting an A/V Receiver, SDTV, and VCR / DVD Recorder
Connect a coaxial cable from the cable wall outlet to the 1. Cable IN
connector on the DTA100.
Connect a coaxial cable from the 2. To TV connector on the DTA100 to the
Cable / Antenna IN connector on the VCR/DVD Recorder.
Connect a composite video cable from the 3. Video OUT connector on the
VCR / DVD Recorder to the VCR Video IN connector on the A/V Receiver
and a stereo audio cable from the Audio L / R OUT connector on the VCR /
DVD Recorder to the VCR Audio L / R IN connector on the A/V Receiver.
Connect a composite video cable from the 4. TV / Monitor VIDEO OUT
connector on the A/V Receiver to the Video IN connector on the TV and a
stereo audio cable from the TV / Monitor AUDIO L / R OUT connectors on
the A/V Receiver to the Audio Left and Audio Right connectors on the TV.

Motorola DTA100 Specifications

General

Brand	Motorola
Model	DTA100
Category	Adapter
Language	English
