3
Display Icons
English
11. Personality Selection
12-13. Not Used
14. Data Key
for interrogating the data message
stack or initiating a short data call request.
15. Call in Absence Selector
16-17. Shortform Dial Position Selector
or
Channel Selector
(conventional mode).
18. Microphone Connector
When installing the microphone, turn the radio
off and on again.
19. Transmit (PTT)
Push to talk, release to listen.
20. Clear Button (on rear)
for cancelling a call or
clearing down at the end of a call. Activated
when the microphone is replaced.
Display Icons
Scanning.
Registered/Call Monitoring
(conventional mode).
Loudspeaker Open.
Call In Absence received.
External Alarm selected.
Data message(s) in the Data Message stack.

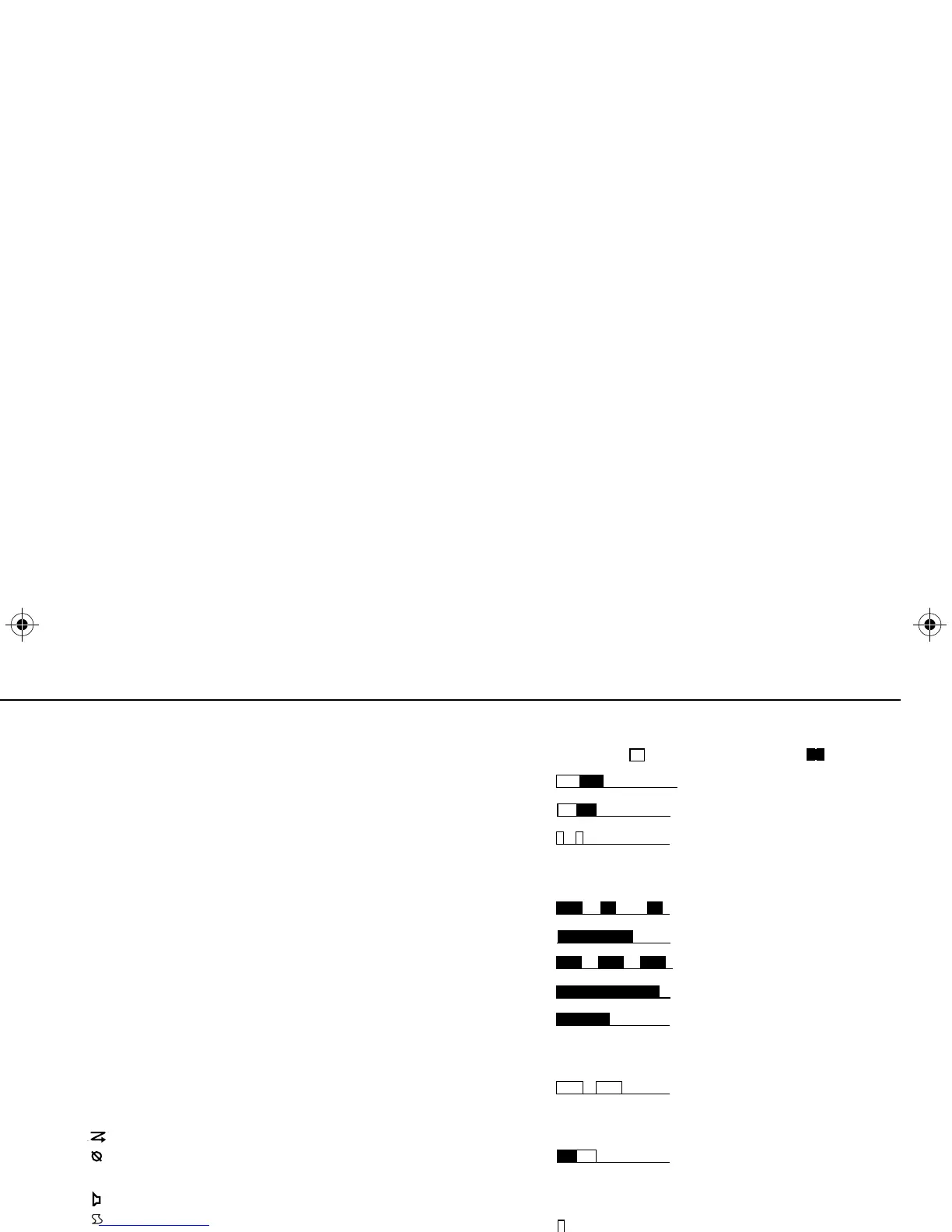

Audio Tones
High pitched tone Low pitched tone
Self test: Sounded on power up.
Tone A: Call clear indication.
Tone B: Traffic channel allocated
and PTT/Mic/
Loudspeaker enabled.
Tone C1: System busy.
Tone C2: Unavailable.
Tone C3: Called party busy.
Tone C4: Invalid number.
Tone D: Call set up in progress,
wait for further
indications.
Tone E: Incoming call, press PTT,
then wait for further
indications.
Tone F: Transaction confirmed,
called unit will call
back.
Tone G: Look at display for call set
up or system information.
Tone H: Invalid entry.
Display Icons/Audio Tones
GM1200 (EN) Stage4 Page 3 Thursday, May 1, 1997 1:28 pm
