Motorola GP360 Series User Manual

Chapter 5
RADIO TUNING AND PROGRAMMING
1.0 Introduction
This chapter provides an overview of the Customer Programming Software (CPS) and tuner program
which are designed for use in a Windows 95/98 environment. These programs are available in
separate kits as listed in the Table 5-1. An Installation instruction manual is also included with each kit.
Table 5-1 Software Installation Kits Radio Tuning Setup
2.0 Global Radio Tuning Setup
A personal computer (PC) using Windows 95/98 and a global tuner program are required to tune the
radio. To perform the tuning procedures, the radio must be connected to the PC, radio interface box
(RIB), and test equipment shown in Figure 5-1.

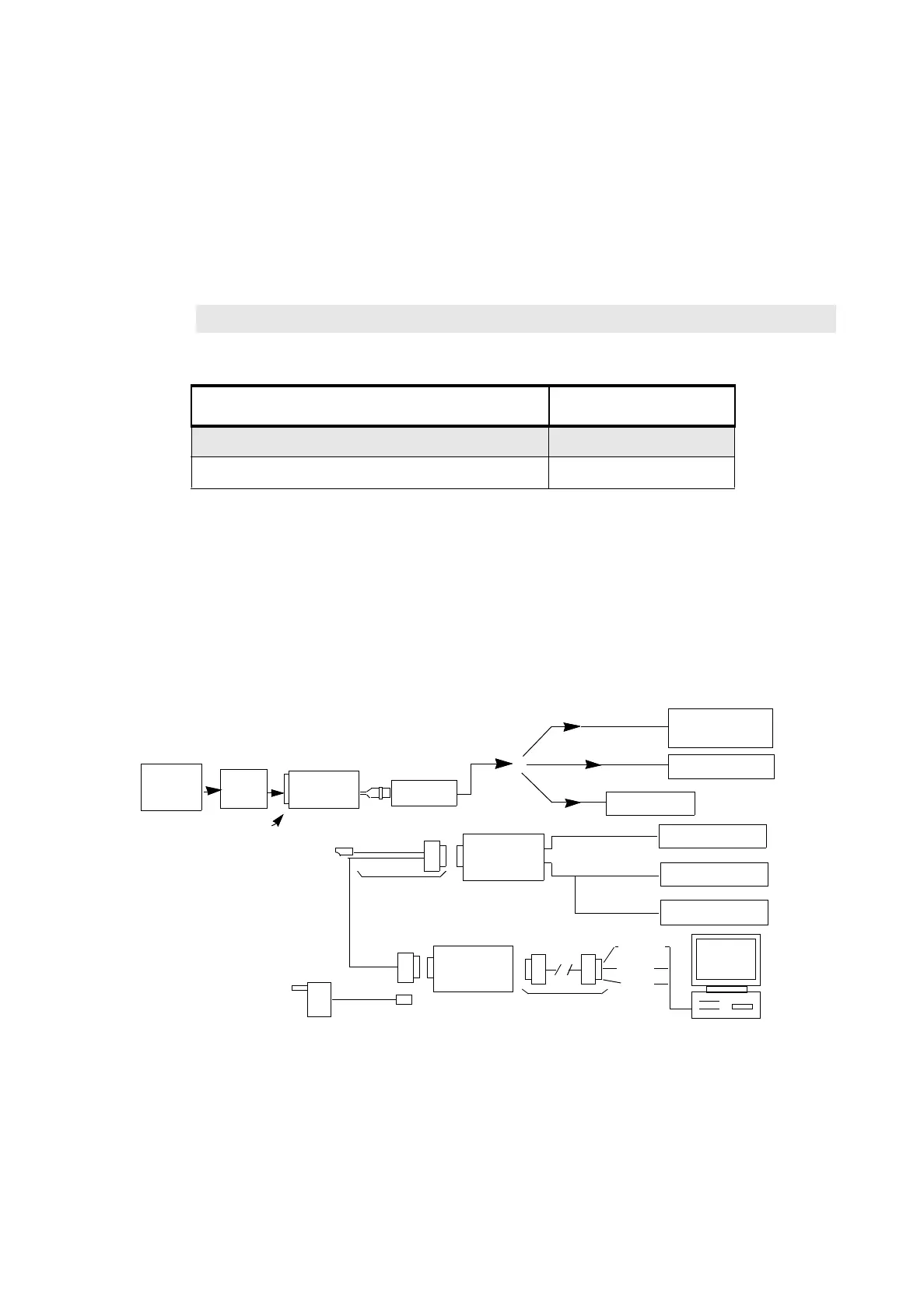

Figure 5-1 Radio Tuning Test Equipment Setup
NOTE
Refer to the appropriate program on-line help files for the programming procedures.
Description Kit Number
EMEA CD ENLN4115_
Installation Card 68P64113B14_
Wattmeter
Audio Generator
Sinad Meter
AC Voltmeter
20 dB Pad
Battery Block
Power
Supply
Audio In
Tx
Rx
Receive
Transmit
RF Generator
RF Adaptor
HLN9756
RIB
RLN-4008
RIB Power Supply
RLN4460
Test Box
Rx
Gnd
Data
Tx Data
Radio
Computer Interface
Cable 3080369B72
Program / Test Cable
RKN 4074 (GP320/340/360/380)
Service Monitor
or Counter
DB15 DB9
AC Plug
120/230 Vac
3.5 mm to
Ferrule BNC
RLN4510 (GP320/340/360/380)
+12VDC
0180305G54
Eliminator
7.5V Reg.
Battery
JMKN4125_ (GP344/388)
10 dB (GP344/388)
JMKN 4123 (GP344/388)

Motorola GP360 Series Specifications

General

Number of Channels	16
IP Rating	IP54
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
Channel Capacity	16
Power Output	1-5 W
Channel Spacing	12.5/25 kHz
