June, 2000 6880907Z66-O 2-5
GTX Mobile Radio Installation Manual Installation
Starting The Installation
7. Connect the antenna cable connector to the
radio antenna connector on the rear of the
radio. See Figure 2-7.
8. Mount the microphone clip to a convenient
spot near your radio, and ensure that it is
grounded.
9. Plug the microphone cord into the control
head connector. Refer to Figure 2-6. Your
microphone has a telephone type connector at
the end of its cord. Connect and disconnect
your radio microphone cord in the same man-
ner you connect and disconnect your tele-
phone handset cord.
10. To complete your radio installation, plug the
power cable into the radio power connector.
Refer to Figure 2-7.
Accessory Connector
covered with gasket
Antenna
Connector
Power

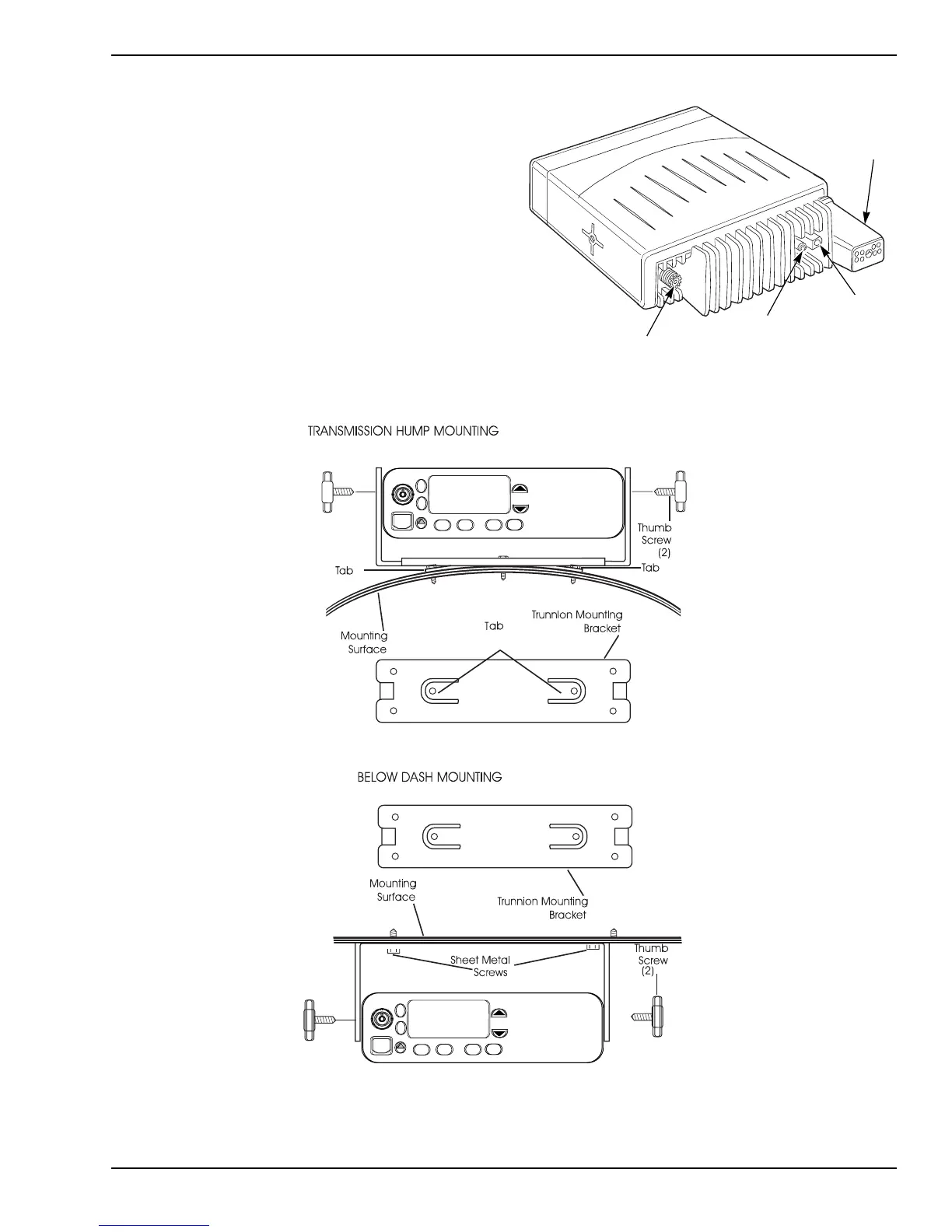

Figure 2-7. 12 W & 15 W Connections
to Radio Rear Panel
Connector
To Battery
+ via fuse
F1 (red)
Vehicle
Chassis
Ground
(black)
Figure 2-8. 12 W & 15 W Trunnion Mounting Locations
To Next Page
