2-6 6880907Z66-O June, 2000
Installation GTX Mobile Radio Installation Manual
Starting The Installation
External Speaker Installation
1. Remove the speaker from the trunnion
bracket by loosening the two M5 wing screws.
2. Choose a place to mount the speaker.
3. Using the trunnion bracket as a template,
mark the locations of the three mounting
holes.
4. Centerpunch and drill a 5/32-inch (4 mm)
diameter hole at each location.
5. Mount the trunnion bracket with the screws
supplied. Refer to Figure 2-9.
6. Insert the speaker into the trunnion bracket
and tighten the two M5 wing screws.
7. Insert the external speaker accessory plug into
the accessory connector of radio. Refer to
Figure 2-7 for 12 W and 15 W radios or
Figure 2-4 for 30 W and 35 W radios.

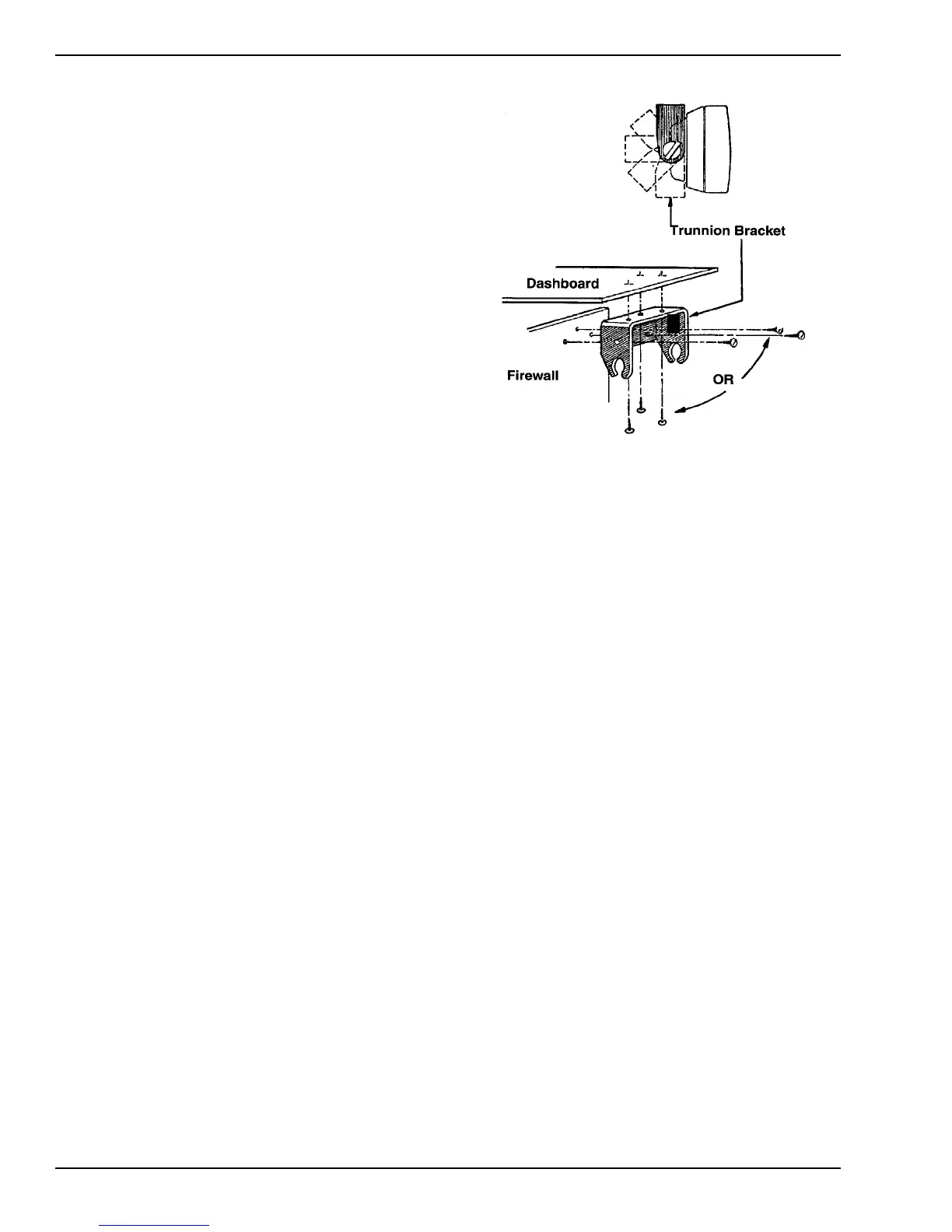

Figure 2-9. Mounting the Speaker Under
the Dashboard
