Motorola HT-1000 - Basic Radios and Basic Radios with Option Mate Optional

52

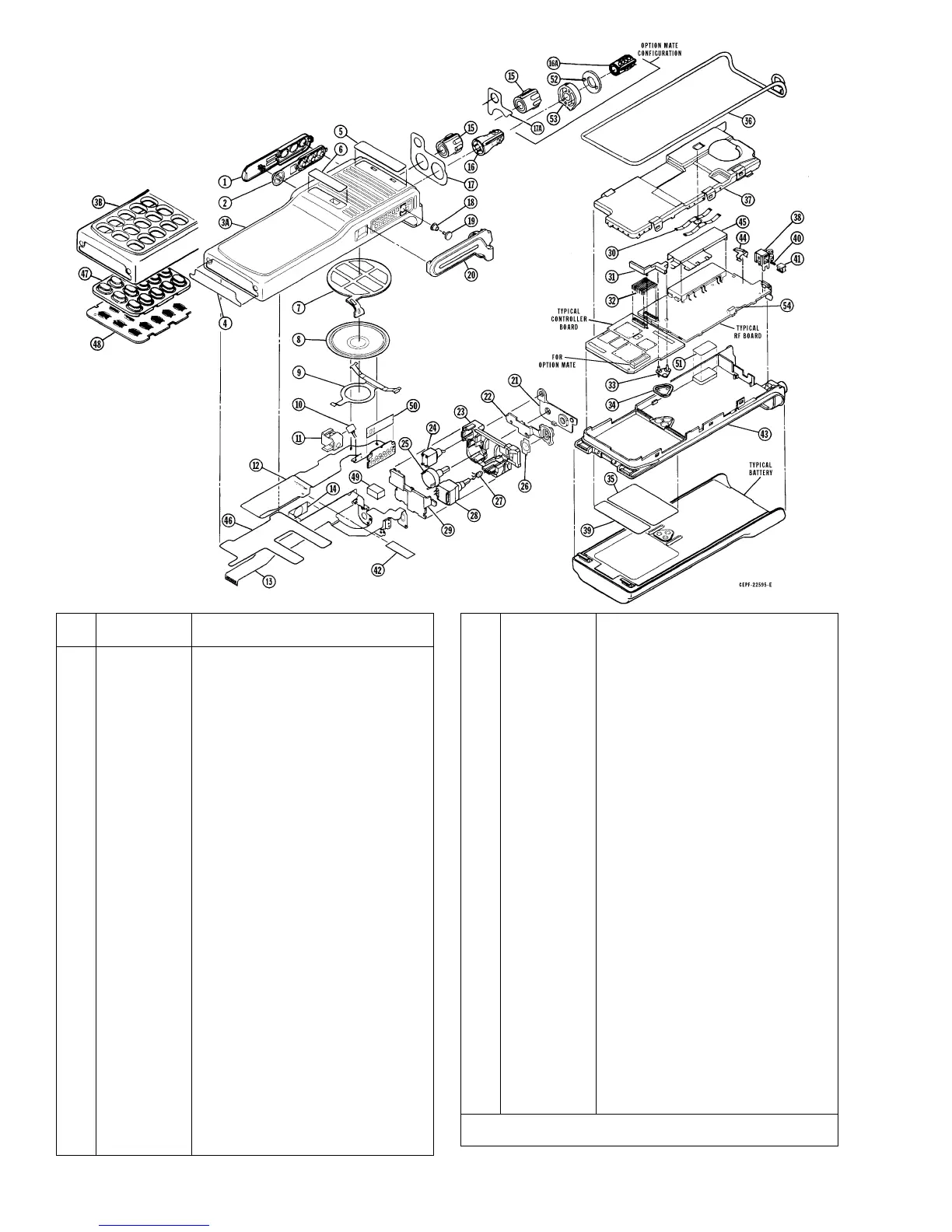

Basic Radios and Basic Radios with
Option Mate Optional Front Cover
ITEM
NO.
MOTOROLA
PART NO.
DESCRIPTION
1 4505896U01 LEVER, PTT
2 3205902U01 SEAL, PTT, and ACTUATOR for S404, S405,
S406, and S408
3A
3B
1505627V05
or 1505627V03
1505637V06
or 1505637V07
COVER, Front
COVER, Front; Option•Mate
COVER, Front; DTMF
COVER, Front; DTMF Option•Mate
4 - - - - - - - - - - LABEL, Agency Approval; not field
replaceable
5 3305183R55 LABEL, Motorola
6 3305183R56 LABEL, HT1000
7 3505535X02 FELT, Speaker
8 See Note 1 SPEAKER (LS401)
9 0705470V01 BRACKET, Speaker Retainer
10 See Note 1 MICROPHONE (MK401)
11 1405330W01 BOOT, Microphone
12 8405310W04 FLEX, Front Cover/Display
13 8405333W03 FLEX, Controls
14 3905517V01 POPPLE, PTT (p/o S406)
15 3605253V01 KNOB, On/Off/Volume
16
16A
3605254V02
or 3605254V01
3605636V01
KNOB, Frequency; 2-Freq. Radios
KNOB, Frequency; 16-Frequency Radios
KNOB, Frequency; Option•Mate
17
17A
1305872U02
or 1305872U01
1305698V01
ESCUTCHEON, Control Top; 2-Freq. Radios
ESCUTCHEON, Control Top; 16-Freq. Radios
ESCUTCHEON, Control Top; Option•Mate
18 3205160W01 SEAL, Actuator; for S101
19 2205159W01 PIN, Actuator; for S101
20 3205514W01 SEAL, Accessory Connector
21 3205177Z01 SEAL, Control Top
22 3205178Z01 SEAL, Emergency Button
23 2705877U01 HOUSING, Switch
24 See Note 1 SWITCH, Toggle (S402)
25 See Note 1 POTENTIOMETER/SWITCH, On/Off/Volume
Control (R401/S403)
26 3905329W01 POPPLE, Emergency Button
27 See Note 1 LED (CR400A/CR400B)
28 See Note 1 SWITCH, Frequency (S401)
29 1505632V01 COVER, Switch Housing
30 - - - - - - - - - - SPRING, PA; not field replaceable, order front
shield (item 37)
31 4205507X01 STRAIN RELIEF
32 See Note 1 CONNECTOR, Strip (P301/P704)
33 See Note 2 PLUG, Connector (P404)
34 3205820V02 SEAL, Connector Plug
35 - - - - - - - - - - LABEL, Rear; Information; not field
replaceable
36 3205176Z01 O-RING, Contoured/SEAL, Antenna
37 2605891U03
or 2685351C01
SHIELD, Front (earlier radios)
SHIELD, Front (latest radios; requires CLIPs,
Locking: 4285351C01 [Numbered 1, 1 req’d]
and 4285351C02 [Numbered 2, 2 req’d])
38 See Note 1 SWITCH, RF (S101)
39 - - - - - - - - - - LABEL, Barcode; not field replaceable
40 4105266V01 SPRING, RF Switch
41 4405524V01 PISTON, RF Switch
42 1405307X01 INSULATOR
43 1505892U06 CHASSIS (Rear Cover)
44 3905838V01 CONTACT, Antenna Shield Ground (800MHz
and 900MHz radios only)
45 2605898U01 SHIELD, PA (800MHz and 900MHz radios
(only)
46 7505334W01 PAD, Sound Dampening
47 7505437W01 KEYPAD, DTMF
48 5102463J08 CIRCUIT BOARD, DTMF
49 7505393N33 PAD, Shock
50 3205827V01 WEDGE, Universal
51 7505922Z01 PAD, Thermal
52 1305633V01 RING, Concentric; Escutcheon
53 3605635V01 Knob, Concentric Ring
54 1405307X07 TAPE, Insulator (trim to size, 0.3” x 0.2”)
Notes: 1. Refer to electrical parts list (miscellaneous)
2. Refer to electrical parts list (transceiver board)
