Minitor IV Pager Programming Guide
Getting Started
Note: How to check which COM port the USB port is mapped to
• From desktop, right click on My Computer
• Select Properties.
• Choose the Hardware tab
• Click on Device Manager button from the second group – Device
Manager
• Expend the Ports (COM & LPT) item
• From there, you can see which COM port the USB port is mapped

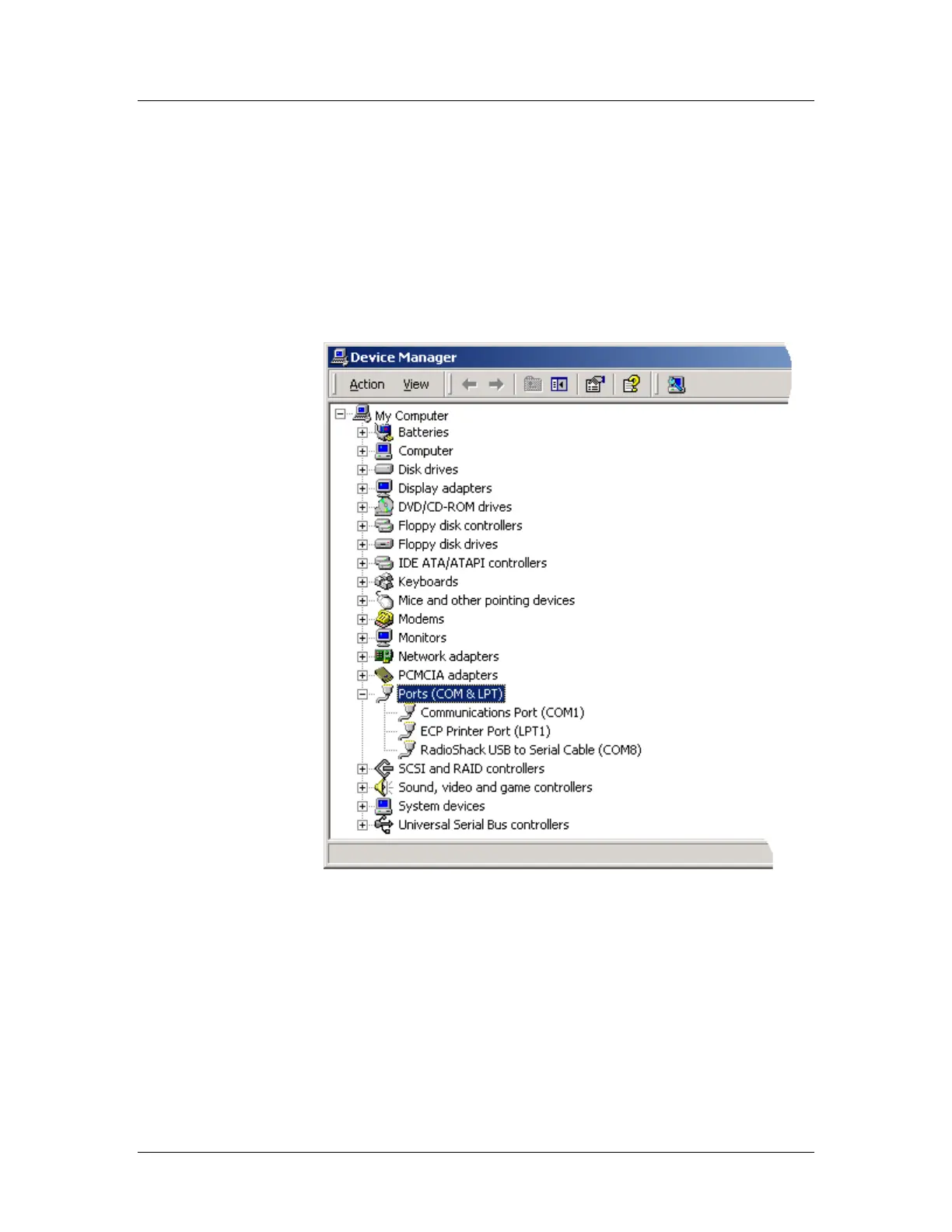

Here is an example of device manager window. In this case, the cable is
RadioShack USB to Serial cable. It is mapped to COM8
Figure 2 Device Managers
2. Connect DB25 end of the selected cable to the DB25 connector of the
programming interface.
3. Connect the programmer cable end with the phone jack to the programming
interface.
4. Plug the coiled cable into the Minitor IV programmer nest and
programming interface.
5. Connect AC/DC adapter/power supply to programming interface.
6. Plug AC/DC adapter/power supply into wall outlet.
7. Hardware installation is complete.
